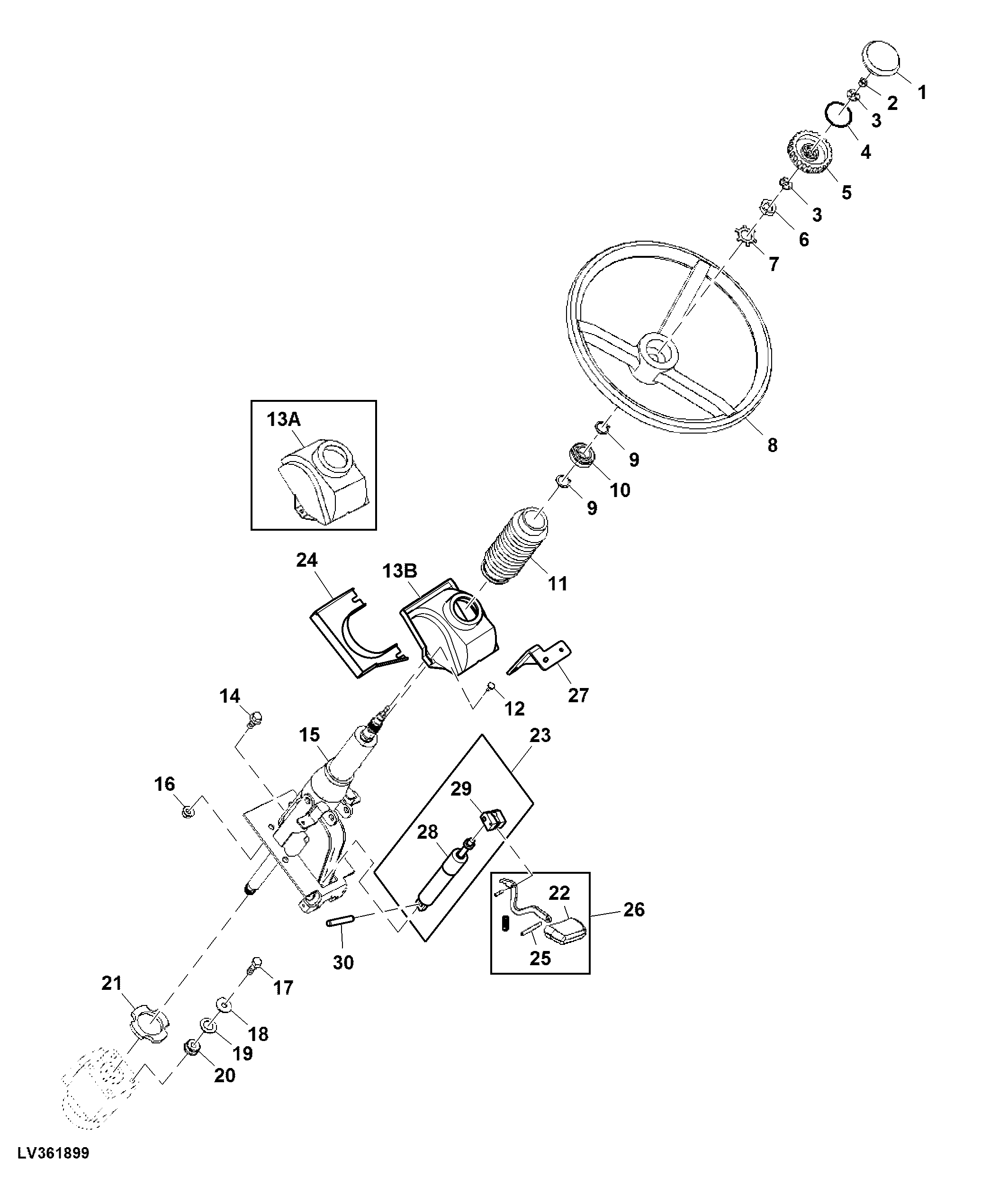

Tilt Steering Column (With CAB/Isolated Open Operator Station) ( - 420000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	(SUB FOR AL118173)
2	14M7166	1	Lock Nut	M8
3	L100436	2	Washer	-
4	B3690R	1	O-Ring	-
5	R117246	1	Knob	-
6	14M7209	1	Nut	M18, THIN
7	T17148	1	Lock Washer	-
8	L172182	1	Steering Wheel	(SUB FOR L158560)
9	R114841	2	Snap Ring	-
10	R114779	1	Bushing	-
11	R114778	1	Boot	-
12	21M7285	2	Screw	M6 X 12
14	19M7785	4	Screw	M10 X 25, (HS=10.9)
15	RE73178	1	Steering Column	(INCLUDES RE56109 AND RE180491)
16	14M7296	4	Flange Nut	M10
17	19M7662	4	Cap Screw	M10 X 30, (HS=10.9)
18	24M7178	4	Washer	10.500 X 30 X 2.500 mm
19	24H1930	4	Washer	3/4" X 1-1/4" X 0.075"
20	AT116162	4	Isolator	-
21	R111729	1	Isolator	-
22	AL79978	1	Assembly Line Parts	(SUB FOR R106302)
23	AL209275	1	Gas Operated Cylinder	SUB FOR AL150755; ORDER AL222225 AND R214025
24	R191031	1	Tray	(ISOLATED OPEN OPERATOR STATION) (POWRREVERSER™ TRANSMISSION) (USE WITH R140703) (ORDER R193218)
24	R191031	1	Tray	(ISOLATED OPEN OPERATOR STATION) (COLLARSHIFT TRANSMISSION) (SYNCSHUTTLE™ TRANSMISSION) (SYNCSHUTTLE™ TRANSMISSION WITH 540/540E PTO) (USE WITH R140703) (ORDER R193218 AND RE193219)
25	34M7131	1	Spring Pin	4 X 50 mm
26	RE180491	1	Lever Kit	-
27	RE193219	1	Bracket	-
28	AL222225	1	Gas Operated Cylinder	-
29	R214025	1	Support	-
30	R225269	1	Pin	-
13A	R140703	1	Barrel	(ORDER R193218)
13B	R193218	1	Barrel	(POWRREVERSER™ TRANSMISSION)
13B	R193218	1	Barrel	(SYNCSHUTTLE™ TRANSMISSION WITH 540/540E PTO) (USE WITH RE193219)
13B	R193218	1	Barrel	(COLLARSHIFT TRANSMISSION) (USE WITH RE193219)
13B	R193218	1	Barrel	(POWRREVERSER™ TRANSMISSION)
13B	R193218	1	Barrel	(SYNCSHUTTLE™ TRANSMISSION WITH 540/540E PTO) (USE WITH RE193219)
13B	R193218	1	Barrel	(SYNCSHUTTLE™ TRANSMISSION) (USE WITH RE193219)
13B	R193218	1	Barrel	(COLLARSHIFT TRANSMISSION) (USE WITH RE193219)

Tilt Steering Column (With CAB/Isolated Open Operator Station) ( - 420000)
