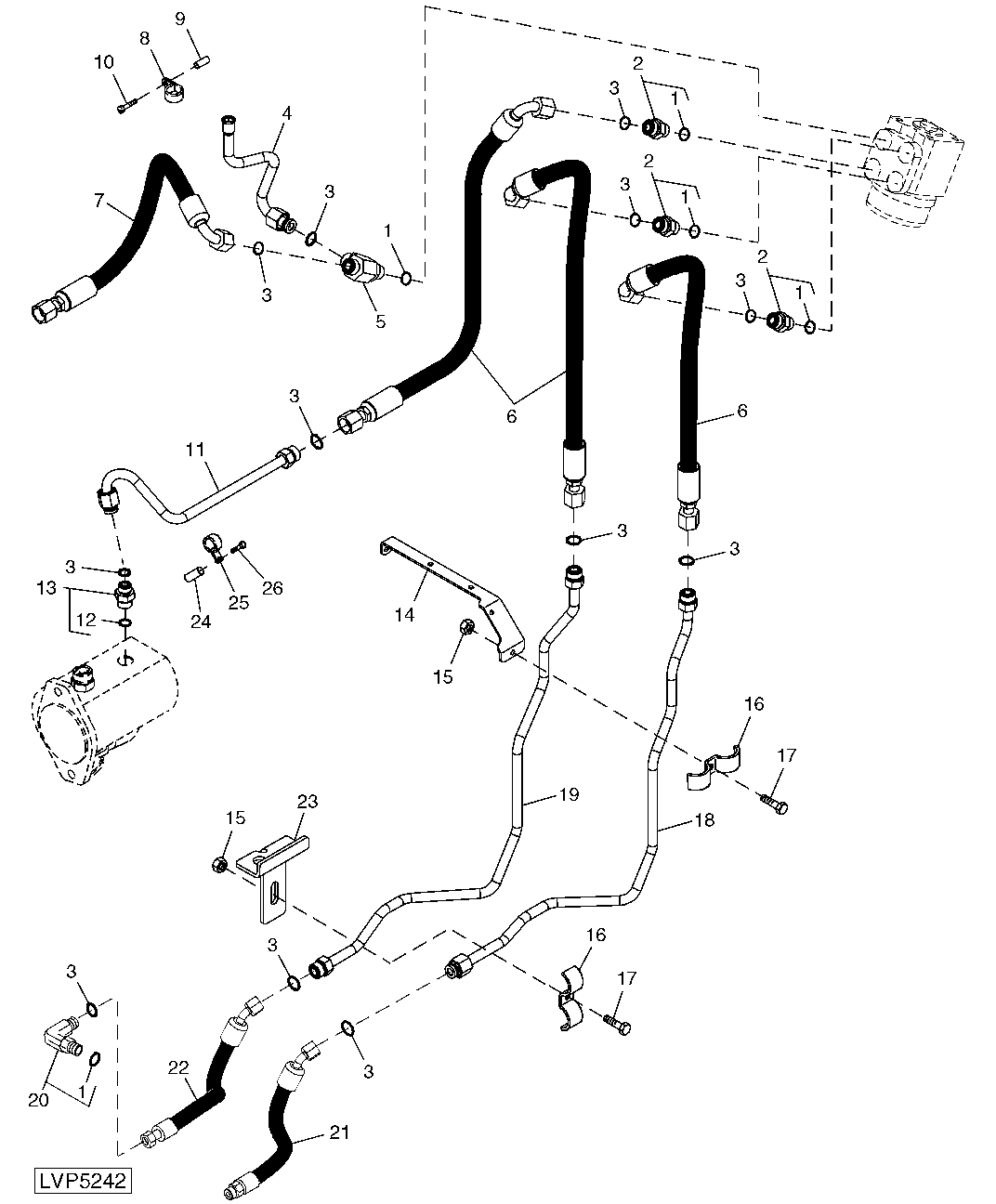

Steering Hydraulic Lines (2WD)

Steering Hydraulic Lines (2WD)

Steering Hydraulic Lines (2WD)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Steering Hydraulic Lines (2WD)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7043	5	O-Ring	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) 15.300 X 2.200 mm
2	38H5003	3	Adapter Fitting	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
3	T77857	12	O-Ring	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
4	RE178583	1	Oil Line	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
5	RE178532	1	Tee Fitting	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
6	RE73466	3	Hose	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
7	RE178573	1	Hydraulic Hose	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
8	AH107416	1	Clip	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
9	ET11414	1	Spacer	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
10	19M8320	1	Screw	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M10 X 45, (HS=10.9)
11	RE73421	1	Oil Line	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
12	51M7045	1	O-Ring	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) 19.300 X 2.200 mm
13	38H5076	1	Adapter Fitting	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
14	R140866	1	Bracket	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
15	14M7303	2	Flange Nut	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M6
16	R139006	2	Clamp	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
17	19M7862	2	Screw	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M6 X 20, (HS=10.9)
18	RE73419	1	Oil Line	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) RH
19	RE73418	1	Oil Line	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) LH
20	38H5023	1	Elbow Fitting	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
21	RE199324	1	Hydraulic Hose	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) (SYNCSHUTTLE™ TRANSMISSION - 5420: SN 443960- , 5520: SN 453301-) LH
22	RE199327	1	Hydraulic Hose	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) (SYNCSHUTTLE™ TRANSMISSION - 5420: SN 443960- , 5520: SN 453301-) RH
23	R139001	1	Bracket	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
23	14M7296	1	Flange Nut	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M10, (TO OIL PAN STUD)
24	L112678	1	Spacer	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) NLA
25	H75541	1	Clamp	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
26	19M7835	1	Screw	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M10 X 35, (HS=10.9)
