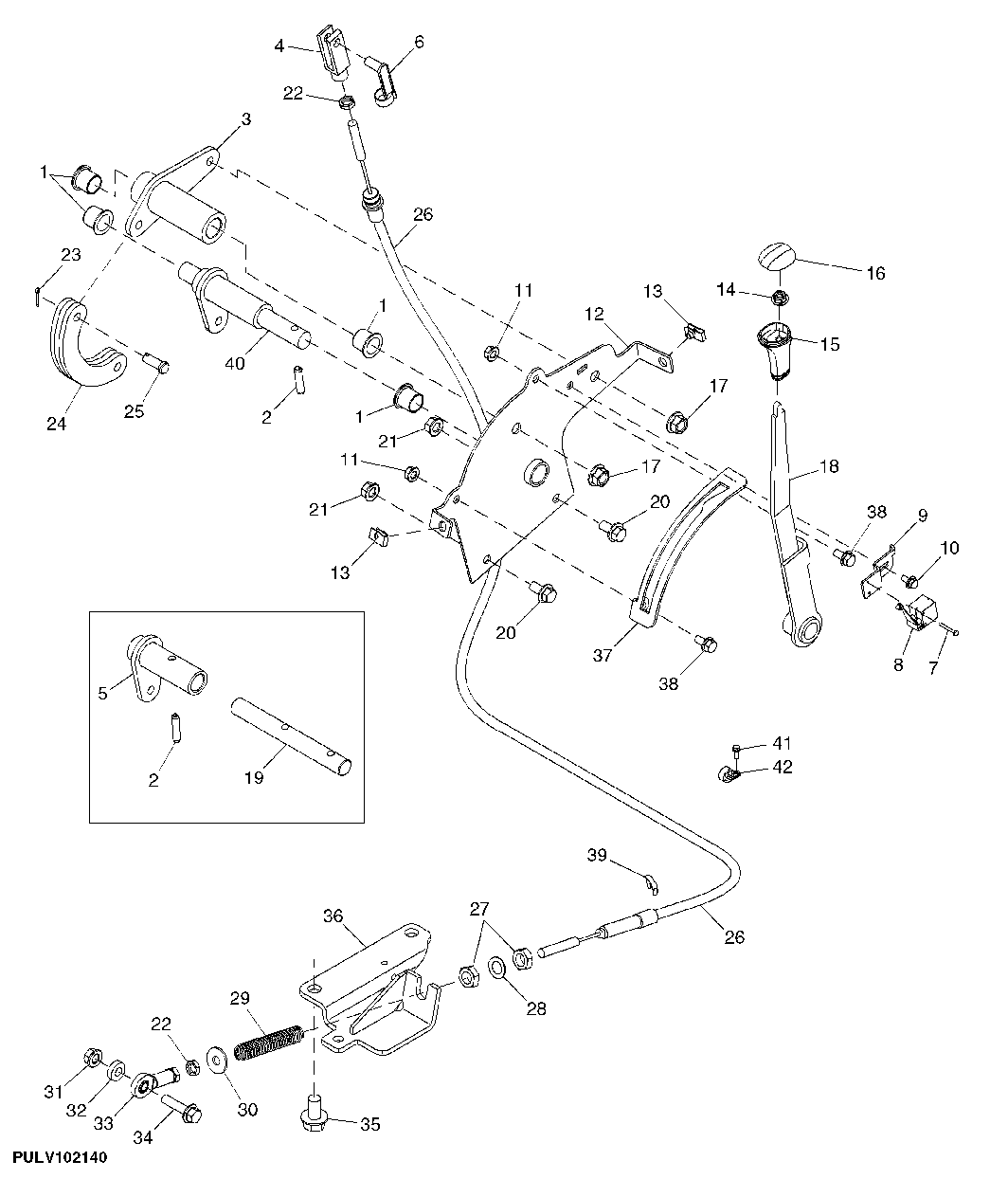

Rear PTO Lever And Linkage (With CAB/Isolated Open Operator Station)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L110766	4	Bushing	-
2	34M7046	2	SPRING PIN	8 X 36 mm, (USE WITH RE73429 AND R140819)
2	34M7046	1	SPRING PIN	8 X 36 mm, (USE WITH RE221651)
3	RE73429	1	Crank	-
4	54M4422	1	Yoke	-
5	RE73428	1	Crank	(SUB RE221651)
6	45M7063	1	Pin Fastener	-
7	21M7345	2	Screw	M3 X 25
8	RE42470	1	Switch	-
9	R140844	1	Bracket	-
10	19M7774	2	Screw	M6 X 12, (HS=10.9)
11	14M7298	2	Flange Nut	M8
12	RE73427	1	Support	-
13	R135870	2	Nut	-
14	M111717	1	Nut	-
15	L77747	1	Knob	-
16	L78981	1	Insert	-
17	14M7299	2	Flange Nut	M12
18	RE73574	1	Control Lever	-
19	R140819	1	Pin	(SUB RE221651)
20	19M7784	2	Screw	M10 X 20, (HS=10.9)
21	14M7296	2	Flange Nut	M10
22	14M7152	2	Nut	M10
23	11M7012	2	Cotter Pin	3.200 X 16 mm
24	R140825	2	Link	-
25	R185916	2	Pin Fastener	-
26	RE185354	1	Push Pull Cable	(SUB FOR RE177723)
27	14H847	2	Nut	9/16"
28	12H326	1	Lock Washer	9/16"
29	M74908	1	Compression Spring	-
30	24M7178	1	Washer	10.500 X 30 X 2.500 mm
31	14M7296	1	Flange Nut	M10
32	24H1781	1	Washer	13/32" X 7/8" X 1/4"
33	RE193849	1	Link End	(SUB FOR RE42501 OR RE185968, THIS APPLICATION)
34	19M8162	1	Screw	M10 X 40, (HS=10.9)
35	19M8672	2	Screw	M14 X 25, (HS=10.9)
36	RE177620	1	Bracket	-
37	R140776	1	Gate	-
38	19M7865	2	Screw	M8 X 16, (HS=10.9)
39	R112612	1	Snap Ring	-
40	RE221651	1	Bellcrank	-
41	19M7789	1	Screw	M12 X 30, (HS=10.9)
42	AH107416	1	Clip	-

Rear PTO Lever And Linkage (With CAB/Isolated Open Operator Station)

Нет текстового описания
