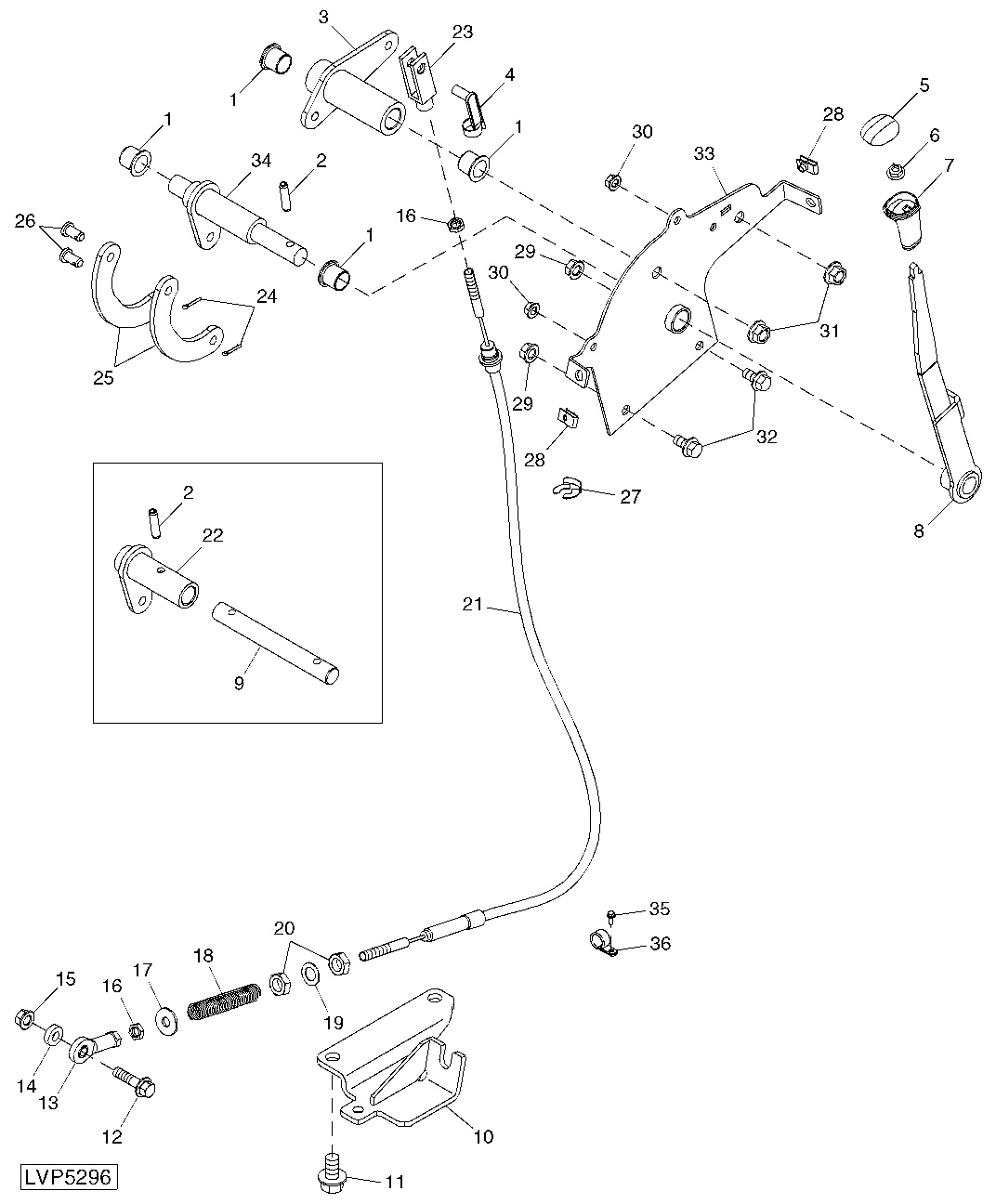

Rear PTO Lever And Linkage (With CAB/Isolated Open Operator Station) ( - 420000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L110766	4	Bushing	-
2	34M7046	2	SPRING PIN	8 X 36 mm, (USE WITH RE73428 AND R140819)
2	34M7046	1	SPRING PIN	8 X 36 mm, (USE WITH RE221651)
3	RE73429	1	Crank	-
4	45M7063	1	Pin Fastener	-
5	L78981	1	Insert	-
6	M111717	1	Nut	-
7	L77747	1	Knob	-
8	RE73574	1	Control Lever	-
9	R140819	1	Pin	(SUB RE221651)
10	RE177620	1	Bracket	-
11	19M8672	2	Screw	M14 X 25, (HS=10.9)
12	19M8162	1	Screw	M10 X 40, (HS=10.9)
13	RE193849	1	Link End	(SUB FOR RE42501 OR RE185968, THIS APPLICATION)
14	24H1781	1	Washer	13/32" X 7/8" X 1/4"
15	14M7296	1	Flange Nut	M10
16	14M7152	2	Nut	M10
17	24M7178	1	Washer	10.500 X 30 X 2.500 mm
18	M74908	1	Compression Spring	-
19	12H326	1	Lock Washer	9/16"
20	14H847	2	Nut	9/16"
21	RE185354	1	Push Pull Cable	(SUB FOR RE177723)
22	RE73428	1	Crank	(SUB RE221651)
23	54M4422	1	Yoke	-
24	11M7012	2	Cotter Pin	3.200 X 16 mm
25	R140825	2	Link	-
26	R185916	2	Pin Fastener	-
27	R112612	1	Snap Ring	-
28	R135870	2	Nut	-
29	14M7296	2	Flange Nut	M10
30	14M7298	2	Flange Nut	M8
31	14M7299	2	Flange Nut	M12
32	19M7784	2	Screw	M10 X 20, (HS=10.9)
33	RE73427	1	Support	-
34	RE221651	1	Bellcrank	-
35	19M7789	1	Screw	M12 X 30, (HS=10.9)
36	AH107416	1	Clip	-

Rear PTO Lever And Linkage (With CAB/Isolated Open Operator Station) ( - 420000)
