Открытый узел

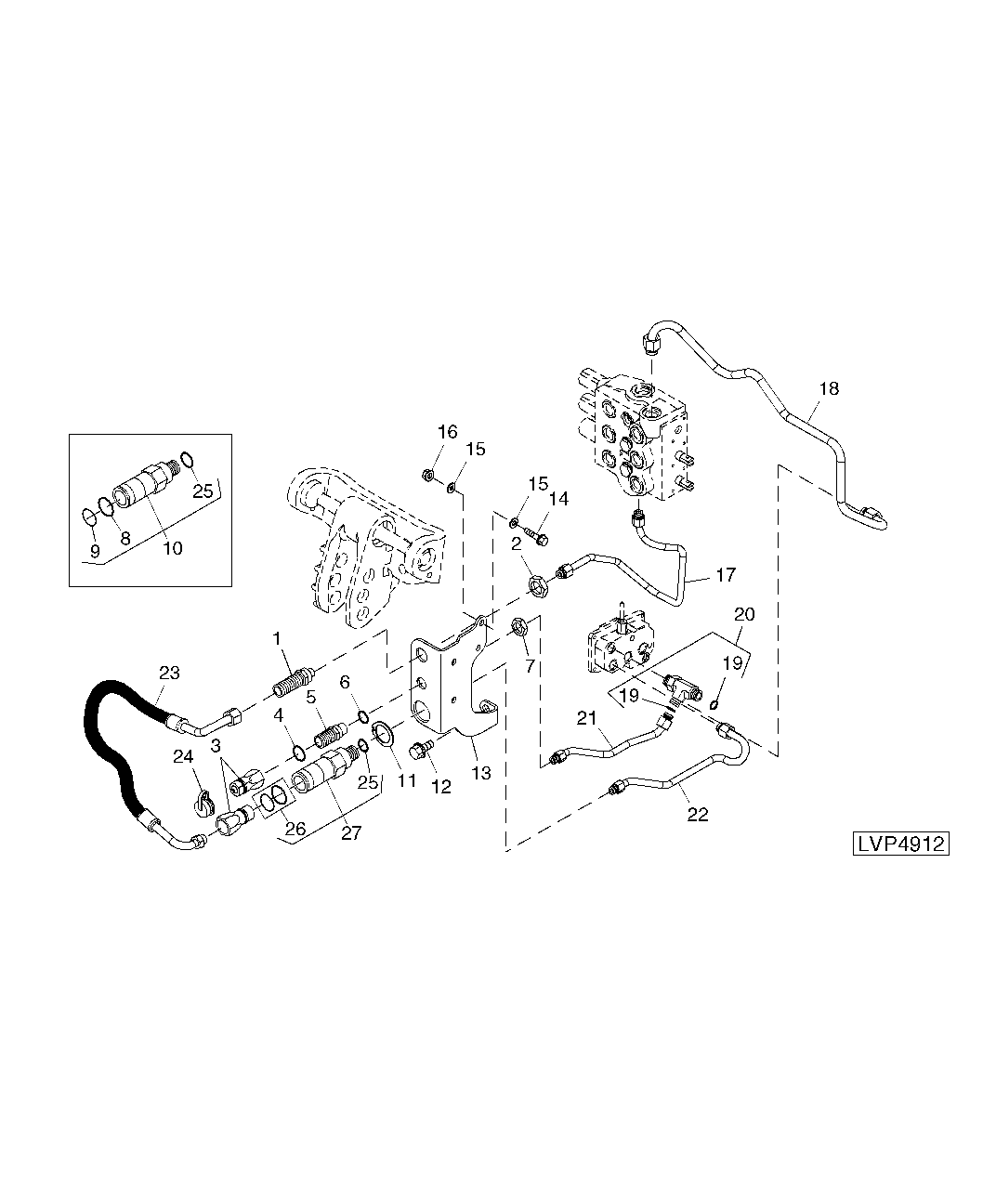

POWER BEYOND QUICK COUPLER KIT (WITH REAR SCV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
2	T80306	1	Nut	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
3	AR94522	2	Hydr. Quick Coupler Plug	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
4	R26375	1	O-Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
5	M135646	1	Union Fitting	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
6	T77857	1	O-Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
7	T78716	1	Nut	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
8	U45858	1	Back-Up Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
9	P47889	1	O-Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
10	RE161000	1	Hyd. Quick-Connect Coupler	(ISOLATED OPEN OPERATOR STATION/WITH CAB) (SUB RE219422)
11	R120797	2	Snap Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
12	19M8672	1	Screw	(ISOLATED OPEN OPERATOR STATION/WITH CAB) M14 X 25, (HS=10.9)
13	RE187718	1	Bracket	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
14	19M8317	1	Screw	(ISOLATED OPEN OPERATOR STATION/WITH CAB) M8 X 40, (HS=10.9)
15	24M7232	2	Washer	(ISOLATED OPEN OPERATOR STATION/WITH CAB) 8.700 X 17 X 2 mm
16	14M7298	1	Flange Nut	(ISOLATED OPEN OPERATOR STATION/WITH CAB) M8
17	RE188041	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
18	RE188062	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
19	T77932	2	O-Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
20	38H5030	1	Tee Fitting	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
21	RE188012	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
22	RE188013	1	Oil Tube	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
23	RE188369	1	Hydraulic Hose	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
24	W42411	1	Cap	(ISOLATED OPEN OPERATOR STATION/WITH CAB) BLACK
25	51M7045	1	O-Ring	(ISOLATED OPEN OPERATOR STATION/WITH CAB) 19.300 X 2.200 mm
26	RE186599	1	Seal	(ISOLATED OPEN OPERATOR STATION/WITH CAB)
27	RE219422	1	Hyd. Quick-Connect Coupler	(ISOLATED OPEN OPERATOR STATION/WITH CAB)

POWER BEYOND QUICK COUPLER KIT (WITH REAR SCV)

Нет текстового описания
