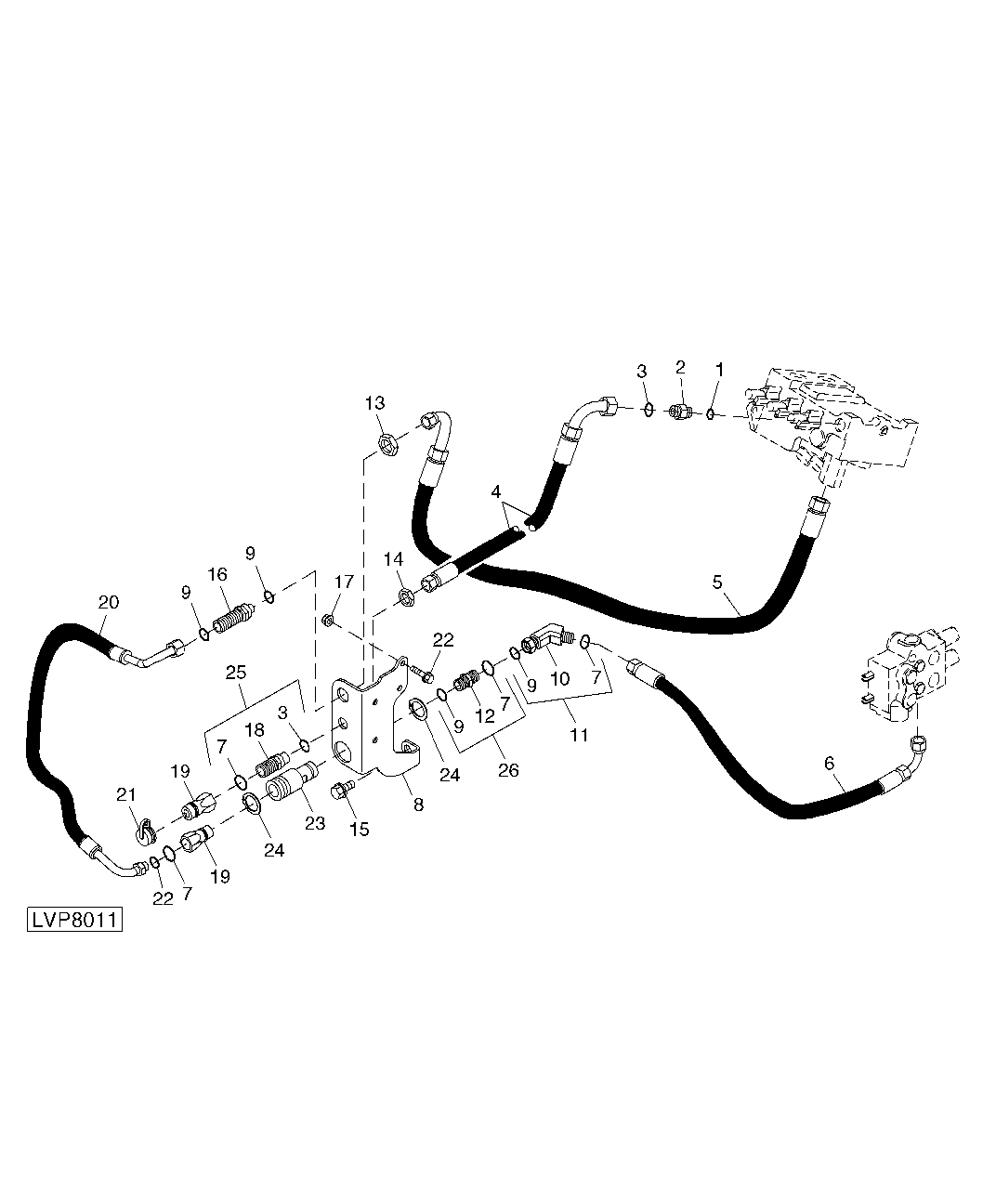

POWER BEYOND QUICK COUPLER KIT (WITH MID AND REAR SCV)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	1	O-Ring	(STRADDLE MOUNT)
2	M135646	1	Union Fitting	(STRADDLE MOUNT)
3	T77857	2	O-Ring	(STRADDLE MOUNT)
4	RE45724	1	Hydraulic Hose	(STRADDLE MOUNT)
5	RE193392	1	Hydraulic Hose	(STRADDLE MOUNT)
6	RE193975	1	Hose	(STRADDLE MOUNT)
7	51M7045	5	O-Ring	(STRADDLE MOUNT) 19.300 X 2.200 mm
8	RE187718	1	Bracket	(STRADDLE MOUNT)
9	T77932	5	O-Ring	(STRADDLE MOUNT)
10	38H5146	1	Elbow Fitting	(STRADDLE MOUNT)
11	61M5146	1	Elbow Fitting	(STRADDLE MOUNT)
12	38H5004	1	Adapter Fitting	(STRADDLE MOUNT)
13	T80306	1	Nut	(STRADDLE MOUNT)
14	T78716	1	Nut	(STRADDLE MOUNT)
15	19M7792	1	Screw	(STRADDLE MOUNT) M16 X 30, (HS=10.9)
16	38H1286	1	Adapter Fitting	(STRADDLE MOUNT)
17	14M7298	1	Flange Nut	(STRADDLE MOUNT) M8
18	38H5076	1	Adapter Fitting	(STRADDLE MOUNT)
19	AR94522	2	Hydr. Quick Coupler Plug	(STRADDLE MOUNT)
20	RE188369	1	Hydraulic Hose	(STRADDLE MOUNT)
21	W42411	1	Cap	(STRADDLE MOUNT) BLACK
22	19M8318	1	Screw	(STRADDLE MOUNT) M8 X 45, (HS=10.9)
23	RE45822	1	Breakaway Coupler	(STRADDLE MOUNT)
24	R120797	2	Snap Ring	(STRADDLE MOUNT)
25	61M5076	1	Adapter Fitting	(STRADDLE MOUNT)
26	61M5004	1	Adapter Fitting	(STRADDLE MOUNT)
..	LVB25367	1	Hyd. Quick-Connect Coupler	(STRADDLE MOUNT) COMPLETE GOODS (INCLUDES R191381)

POWER BEYOND QUICK COUPLER KIT (WITH MID AND REAR SCV)
