HYDRAULIC LINES REAR SCV (WITH CAB/ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7045	6	O-Ring	19.300 X 2.200 mm, (USE WITH RE223237)
1	51M7045	7	O-Ring	19.300 X 2.200 mm, (USE WITH RE73376)
2	38H5004	6	Adapter Fitting	(USE WITH RE73376)
2	38H5004	5	Adapter Fitting	(USE WITH RE223237)
3	T77613	6	O-Ring	(USE WITH RE73376)
3	T77613	5	O-Ring	(USE WITH RE223237)
4	T77932	3	O-Ring	(USE WITH RE73376)
4	T77932	5	O-Ring	(USE WITH RE223237)
5	38H5018	2	Elbow Fitting	(USE WITH RE223237)
5	38H5018	1	Elbow Fitting	(USE WITH RE73376)
6	RE181847	1	Fitting	-
7	RE178131	1	Oil Line	-
8	RE178289	1	Oil Line	-
10	RE73378	1	Oil Line	-
..	RE182797	1	Kit	DUAL REAR SCV (COMPLETE GOODS) (INCL LEVER, VALVE AND LINES)
..	RE182798	1	Kit	TRIPLE REAR SCV (COMPLETE GOODS) (INCL LEVERS, VALVE AND LINES)
..	LVB25193	1	Kit	DUAL SCV (COMPLETE GOODS) (INCL LEVER AND LINES)
9A	RE73376	1	Oil Line	(ORDER RE223237) (ALSO ORDER 38H5018 AND T77932)
9B	RE223237	1	Oil Line	-

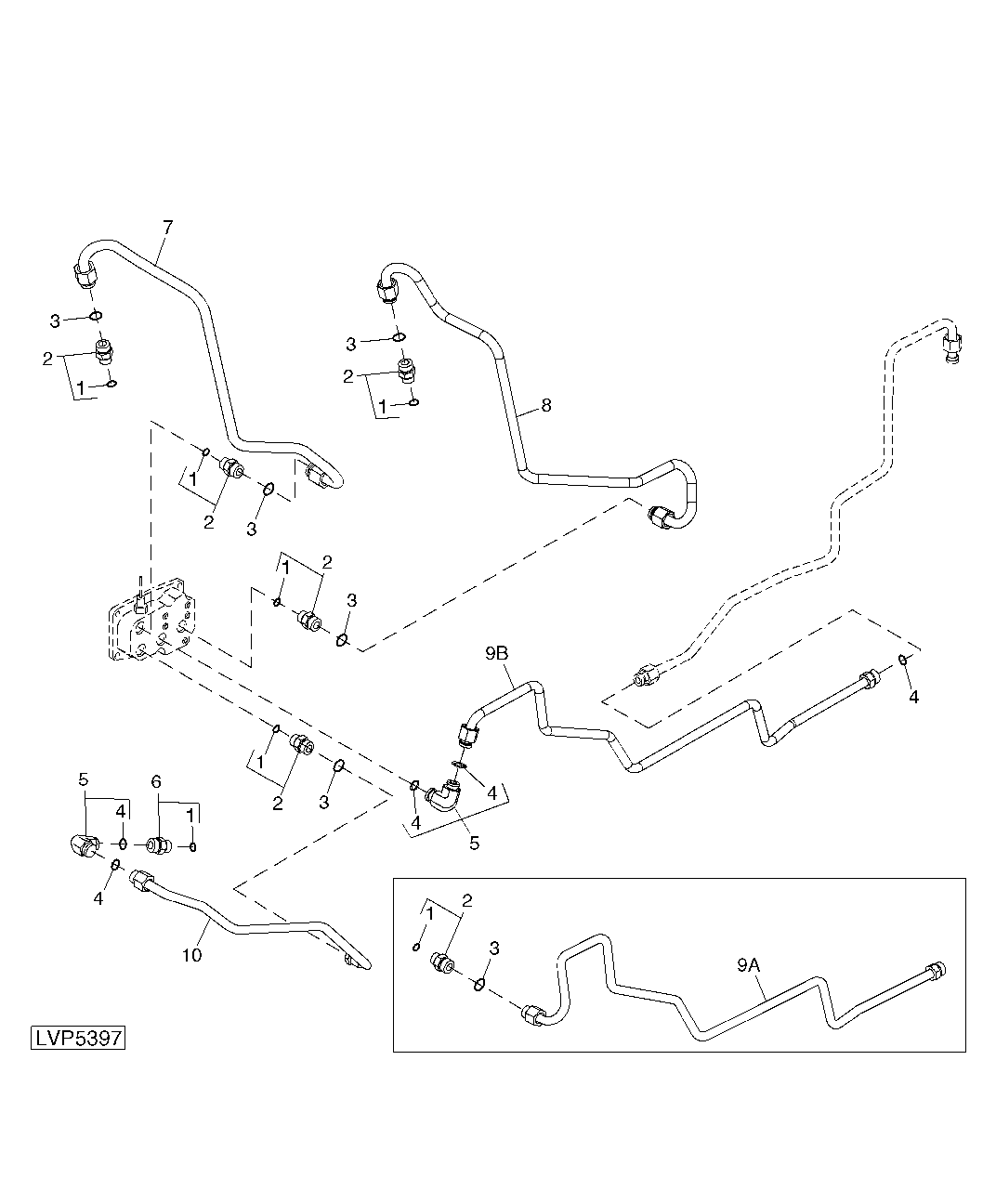

HYDRAULIC LINES REAR SCV (WITH CAB/ISOLATED OPEN OPERATOR STATION)
