Fuel Tank (With CAB/Isolated Open Operator Station) ( - 420000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21M7265	5	Screw	M5 X 12
2	SJ16584	1	Fuel Sender	SUB FOR RE179794 AND RE73292
3	R140759	1	Bracket	(ISOLATED OPEN OPERATOR STATION)
3	R140761	1	Bracket	(WITH CAB)
4	19M7786	2	Screw	M10 X 30, (HS=10.9)
5	14M7400	2	Lock Nut	M10
6	TY22462	6	Clamp	(SUB FOR AR48236)
6	TY22462	9	Clamp	(SUB FOR AR48236) (USE WITH RE220719)
7	-	1	Part 9	CTL 1980 mm, MF TY22551
7	-	1	Part 10	CTL 150 mm, MF TY22551
8	-	1	Part 11	CTL 1829 mm, MF TY22552
8	-	1	Part 12	CTL 915 mm, MF TY22552
9	R117761	1	Elbow Fitting	-
10	TY22462	2	Clamp	-
11	AT13740	1	Drain Valve	-
12	R112945	1	Elbow Fitting	-
13	RE176944	1	Fuel Tank	ORDER RE176945
14	19M7810	2	Screw	M10 X 80, (HS=10.9)
15	-	1	Part 19	CTL 915 mm, MF TY22552
16	19M8006	2	Screw	M8 X 120, (HS=10.9)
17	19M8029	2	Cap Screw	M16 X 30, (HS=10.9)
18	R140760	1	Bracket	-
19	14M7396	2	Lock Nut	M8
20	19M7865	4	Screw	M8 X 16, (HS=10.9)
21	R177910	2	Bracket	-
22	R179997	1	Pad	-
23	AL113086	1	Filler Cap	-
23	AL113087	1	Filler Cap	LOCKING CAP (INCLUDES KEYS)
24	L112337	1	Sealing Washer	-
25	L80418	1	Insert	-
26	AH159448	1	Link Chain	-
27	RE177725	1	Filler Neck	-
28	RE180575	1	Bracket	-
29	AH104837	2	Hose Clamp	(SUB FOR AT25242)
30	R177726	1	Hose	-
31	R194034	1	Ring	-
32	RE176945	1	Fuel Tank	-
33	R248743	1	Fitting	RETURN (SUB FOR R134008)
35	-	1	Part 41	CTL 865 mm, MF TY22551
36	-	1	Part 42	CTL 45 mm, MF TY22552
37	RE220719	1	Strainer	-
38	-	1	Part 44	CTL 810 mm, MF TY22552
34A	R134007	1	Tube	SUPPLY (ORDER AL117189, THIS APPLICATION)
34B	AL117189	1	Check Valve	SUPPLY

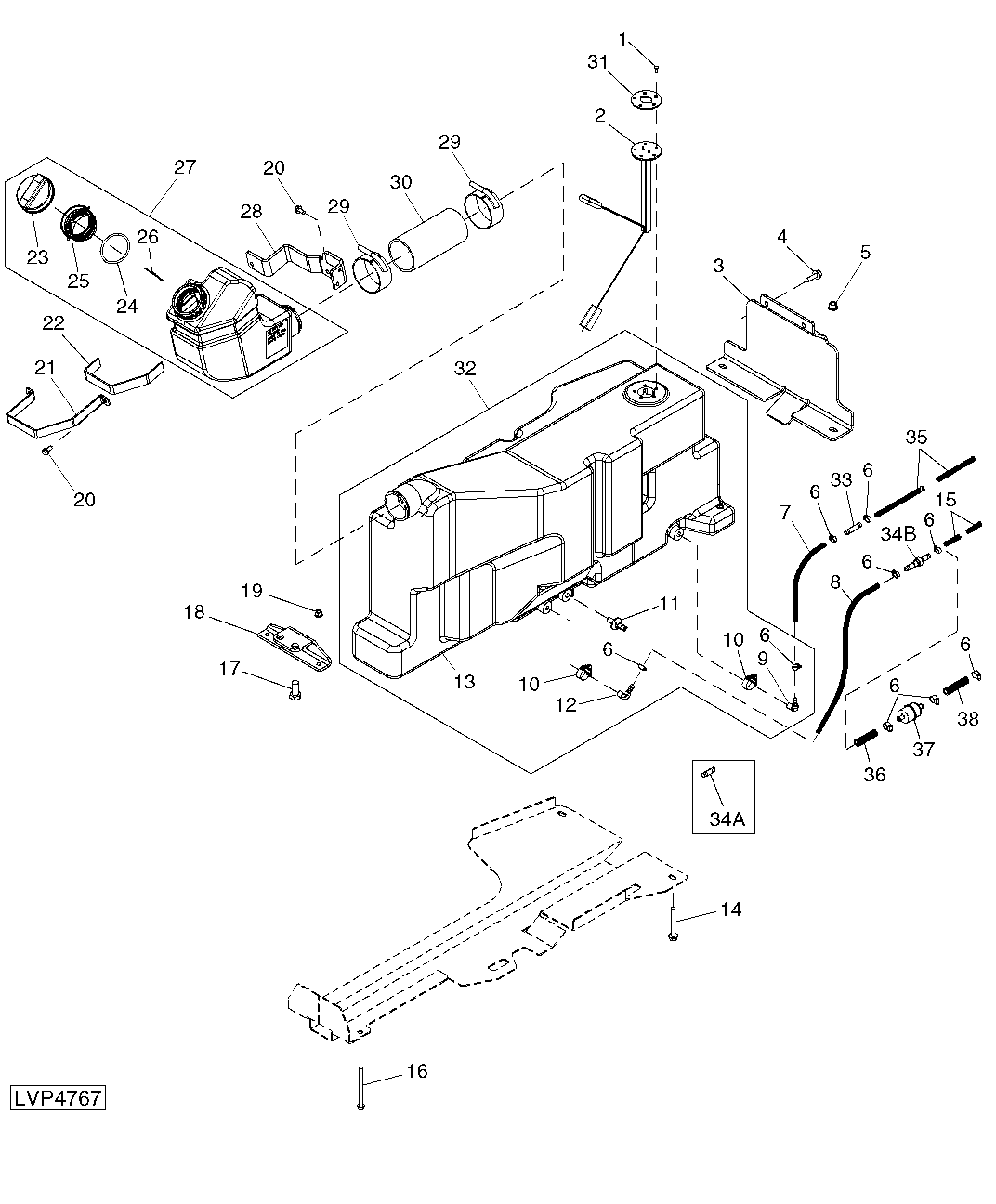

Fuel Tank (With CAB/Isolated Open Operator Station) ( - 420000)
