FENDER/PLATFORM (ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7183	8	Bolt	M8 X 16
2	R135870	1	Nut	-
3	24M7298	10	Washer	8.400 X 25 X 2 mm
4	19M7160	10	Cap Screw	M6 X 30
5	19M7784	8	Screw	M10 X 20, (HS=10.9)
6	H143834	2	Nut	-
7	R140417	1	Bracket	RH
8	R141039	1	Handle	-
9	19M7774	2	Screw	M6 X 12, (HS=10.9)
10	R140416	1	Bracket	LH
11	37M7067	4	Screw	-
12	L77901	1	Cover	-
13	RE73294	1	Handrail	LH
14	19M7867	4	Screw	M8 X 25, (HS=10.9)
15	03M7192	4	Bolt	M10 X 30
16	14M7298	8	Flange Nut	M8
17	14M7517	4	Lock Nut	M10
18	RE73295	1	Handrail	RH
19	RE73168	1	Platform	(SUB FOR RE200801)
20	24M7178	10	Washer	10.500 X 30 X 2.500 mm
21	19M7402	10	Cap Screw	M10 X 25, (HS=10.9)
22	R178128	1	Fender	LH
23	R178127	1	Fender	RH
24	RE46024	2	Handle	-
25	R177702	2	Shield	-
26	37M7059	12	Screw	M5 X 12
27	RE177694	2	Step	-
28	19M7786	8	Screw	M10 X 30, (HS=10.9)
29	14M7400	8	Lock Nut	M10
30	R140833	1	Cover	LH
31	RE178174	1	Cover	LH
32	R126355	6	Screw	-
33	RE178175	1	Cover	RH
34	R178205	1	Cover	RH
35	R105126	1	Stop	-
36	R42641	1	Eyebolt	-
37	R34537	1	Cam	-
38	34H73	1	Spring Pin	3/16" X 3/4"
40	R177890	1	Plate	-
41	RE179941	1	Isolator	RH
42	RE179940	1	Isolator	LH
43	19M7788	6	Screw	M12 X 25, (HS=10.9)
44	RE73298	4	Isolator	-
45	R183012	10	Washer	(SUB FOR R139542)
46	24M7101	8	Washer	11 X 34 X 3 mm
47	19M7784	8	Screw	M10 X 20, (HS=10.9)
48	14M7296	8	Flange Nut	M10
49	19M7806	4	Screw	M10 X 50, (HS=10.9)
50	H169634	10	Nut	-
51	R128728	1	Screw	-
52	14M7296	4	Flange Nut	M10
53	R219517	2	Support	LH SUPPORT
54	R219518	2	Support	RH SUPPORT
55	R215053	4	Step	-
56	19M7865	16	Screw	M8 X 16, (HS=10.9)
57	14M7396	16	Lock Nut	M8
39A	R177696	1	Splash Guards	(SUB R191596)
39B	R191596	1	Splash Guards	AR

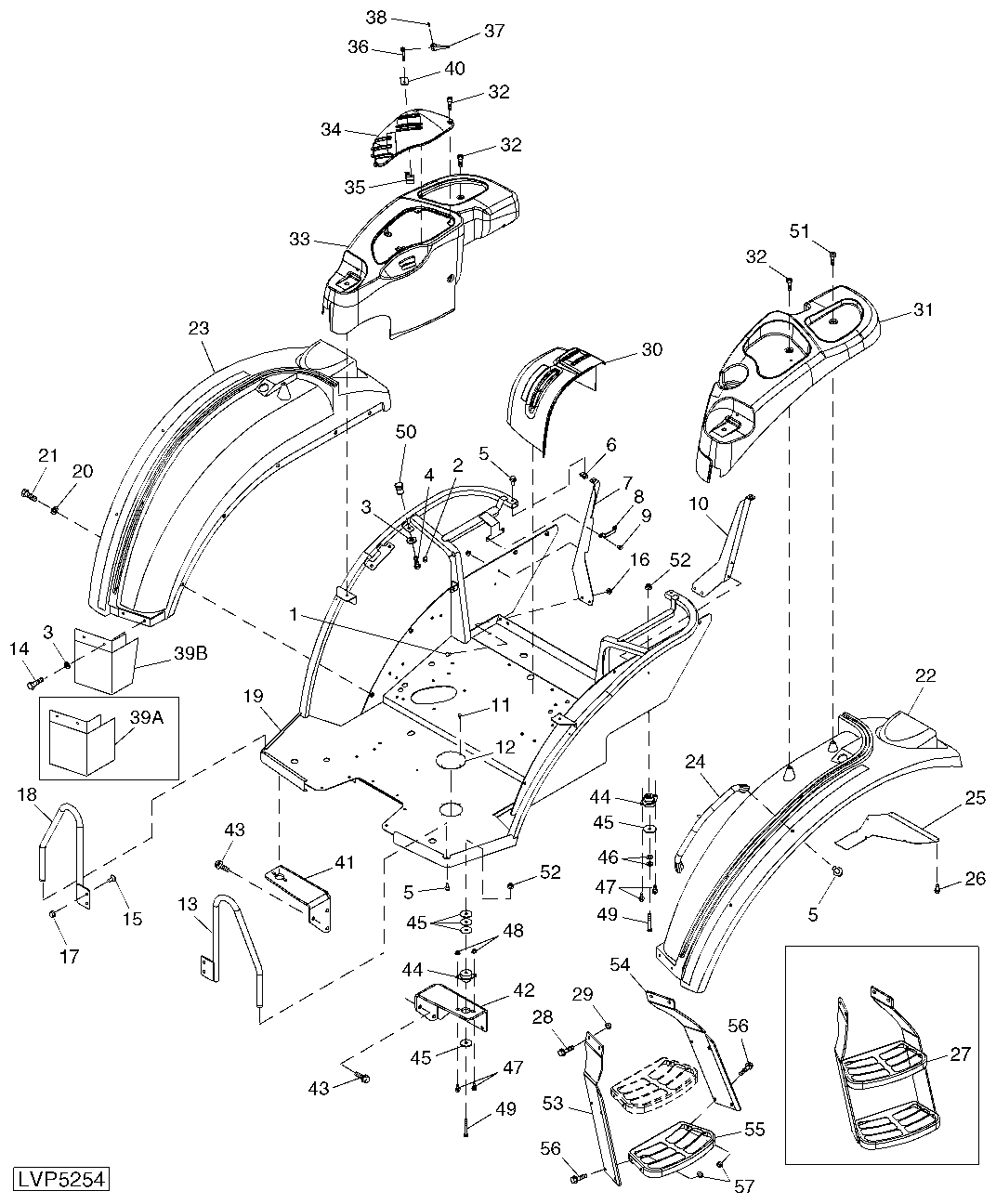

FENDER/PLATFORM (ISOLATED OPEN OPERATOR STATION)
