DUAL SCV JOYSTICK (WITH CAB/ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7068	4	Screw	-
2	R109238	1	Shield	RH (USE WITH RE187108) (SUB R208766)
2	R208766	1	Shield	RH (USE WITH RE222004)
4	R131147	1	Shield	LH (USE WITH RE187108) (SUB R218827)
4	R218827	1	Shield	LH (USE WITH RE222004)
5	14M7376	1	Lock Nut	M6
6	21M7292	1	Screw	M6 X 16
7	R177756	1	Cover	(WITH CAB)
7	R177382	1	Cover	(ISOLATED OPEN OPERATOR STATION)
8	14M7165	2	Lock Nut	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M6
9	19M8069	2	Screw	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M6 X 55, (HS=10.9)
10	R135870	4	Nut	(WITH CAB)
11	R177784	1	Bracket	(WITH CAB)
12	03M7187	2	Bolt	M8 X 35
13	03M7216	1	Bolt	M8 X 50
14	R70350	2	Grommet	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
15	RE179150	2	Push Pull Cable	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) (SUB FOR RE177770, THIS APPLICATION) (SUB FOR RE185405)
16	M112711	2	Pin	(SUB FOR CH10542 OR M800051, THIS APPLICATION)
17	R128357	2	Pin Fastener	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
18	R109390	2	Clamp	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
19	14M7298	3	Flange Nut	M8
20	19M7865	1	Screw	(WITH CAB) (ISOLATED OPEN OPERATOR STATION) M8 X 16, (HS=10.9)
21	21M7296	4	Screw	(WITH CAB) M6 X 20
22	RE72747	1	Bracket	(WITH CAB) (ISOLATED OPEN OPERATOR STATION)
23	19M7784	3	Screw	(WITH CAB) M10 X 20, (HS=10.9)
3A	RE187108	1	Basic Control Unit	SEE SEPARATE ASSY (USE WITH R131147 AND R109238) (SUB RE222004) (ALSO ORDER R208766 AND R218827)
3B	RE222004	1	Basic Control Unit	SEE SEPARATE ASSY (USE WITH R208766 AND R218827)

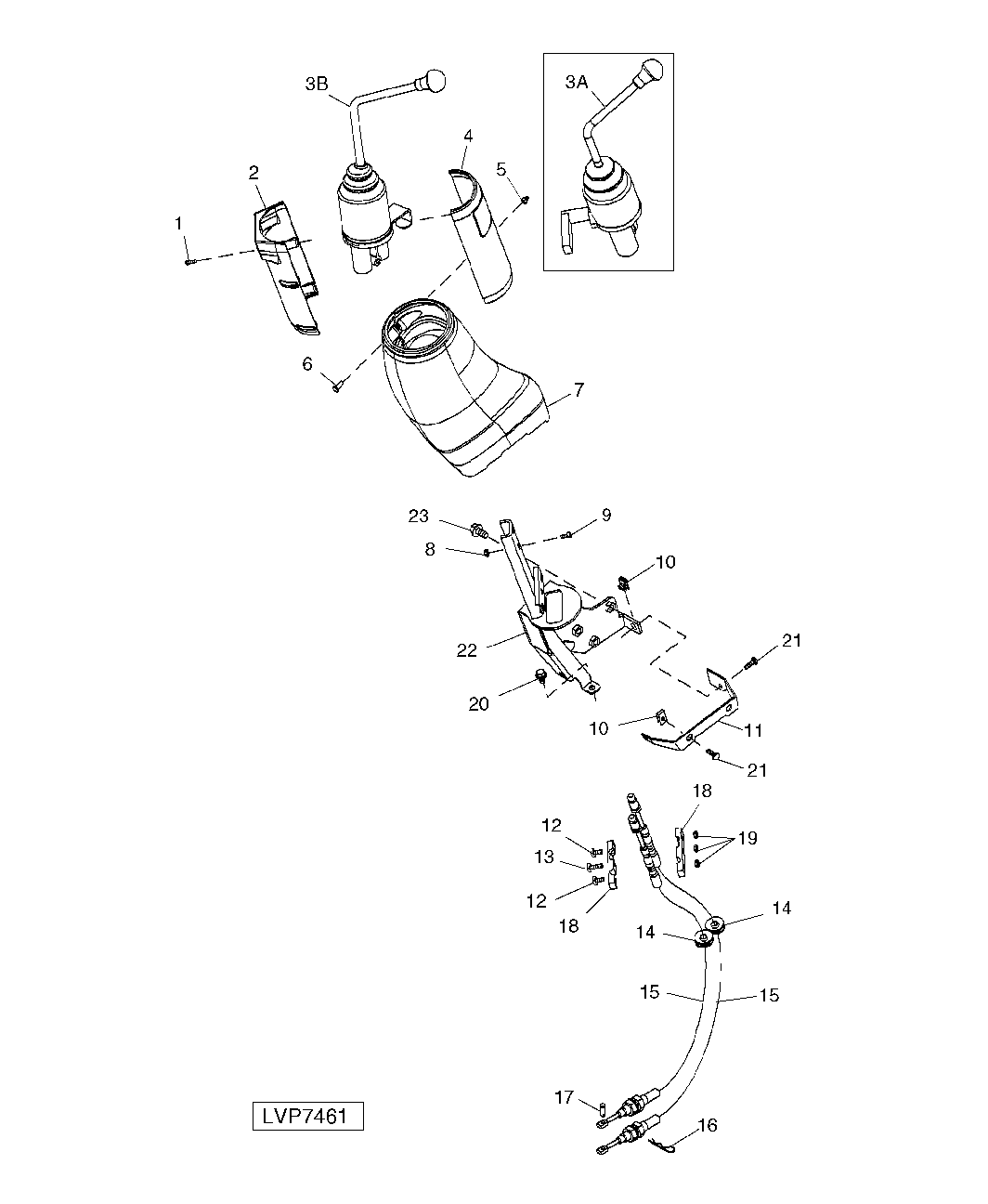

DUAL SCV JOYSTICK (WITH CAB/ISOLATED OPEN OPERATOR STATION)
