Открытый узел

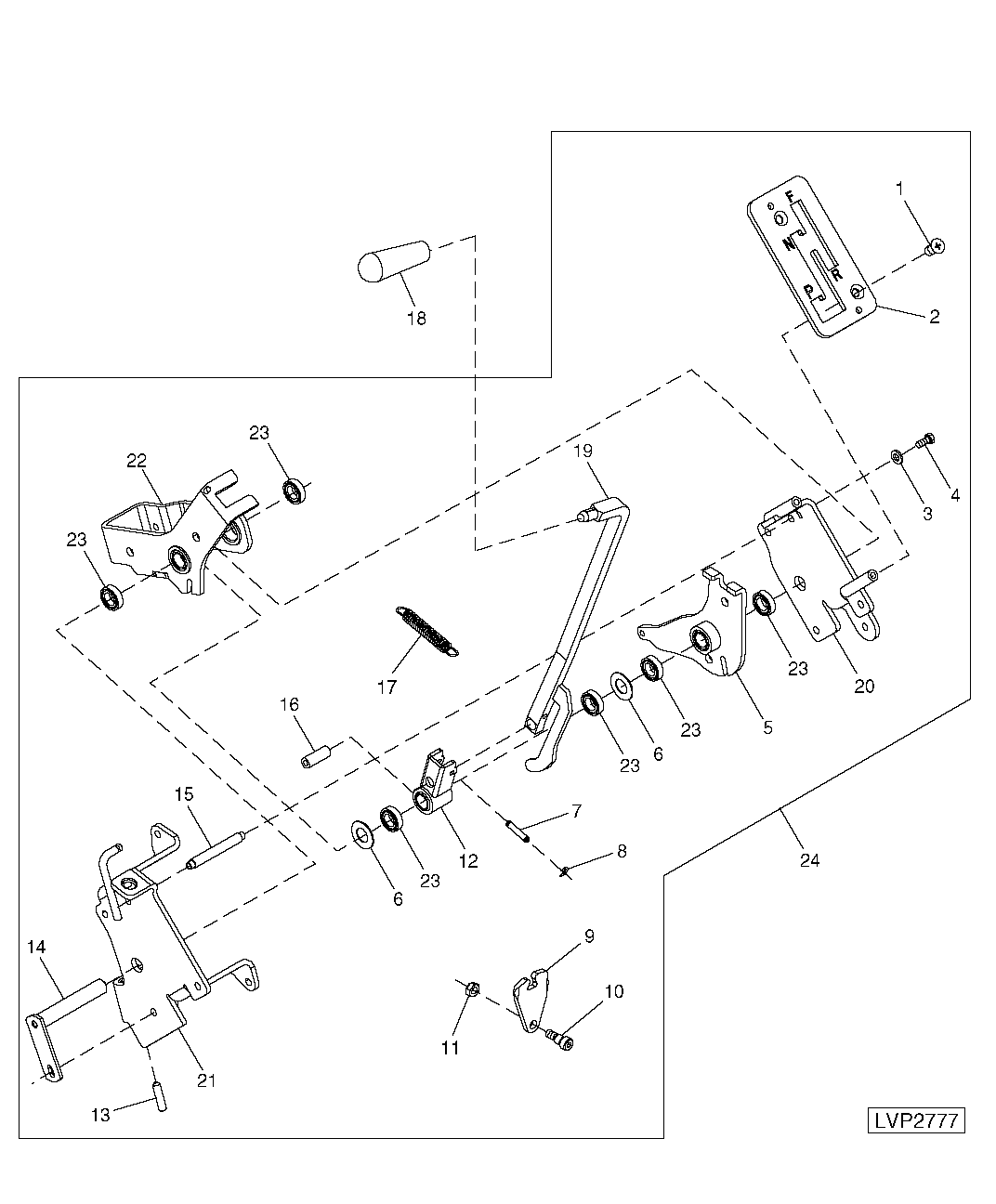

CONTROL ASSEMBLY (ORIGINAL EQUIPMENT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 2	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
1	-	2	Part 1	(STRADDLE MOUNT) NLA (ORDER RE200238)
2	-	1	Part 4	(WITH CAB/ISOLATED OPEN OPERATOR STATION) SHOWN, NLA (ORDER RE201854)
2	-	1	Part 3	(STRADDLE MOUNT) NLA (ORDER RE200238)
3	-	8	Part 5	(STRADDLE MOUNT) NLA (ORDER RE200238)
3	-	8	Part 6	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
4	-	8	Part 7	(STRADDLE MOUNT) NLA (ORDER RE200238)
4	-	8	Part 8	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
5	-	1	Part 9	(STRADDLE MOUNT) NLA (ORDER RE200238)
5	-	1	Part 10	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854) (SHOWN)
6	-	2	Part 11	(STRADDLE MOUNT) NLA (ORDER RE200238)
6	-	2	Part 12	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
7	-	1	Part 15	(STRADDLE MOUNT) NLA (ORDER RE200238)
7	-	1	Part 18	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (ORDER RE201854)
7	-	1	Part 17	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
7	-	1	Part 16	(STRADDLE MOUNT) NLA (ORDER RE200238)
7	-	1	Part 14	(STRADDLE MOUNT) NLA (ORDER RE200238)
7	-	1	Part 13	(STRADDLE MOUNT) NLA (ORDER RE200238)
8	-	2	Part 19	(STRADDLE MOUNT) NLA (ORDER RE200238)
8	-	2	Part 20	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
9	-	1	Part 21	(STRADDLE MOUNT) NLA (ORDER RE200238)
9	-	1	Part 22	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE200238) (SHOWN)
10	-	1	Part 23	(STRADDLE MOUNT) NLA (ORDER RE200238)
10	-	1	Part 24	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
11	-	1	Part 25	(STRADDLE MOUNT) NLA (ORDER RE200238)
11	-	1	Part 26	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
12	-	1	Part 28	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
12	-	1	Part 27	(STRADDLE MOUNT) NLA (ORDER RE200238)
13	-	1	Part 29	(STRADDLE MOUNT) NLA (ORDER RE200238)
13	-	1	Part 30	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
14	-	1	Part 31	(STRADDLE MOUNT) NLA (ORDER RE200238)
14	-	1	Part 32	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
15	-	4	Part 33	(STRADDLE MOUNT) NLA (ORDER RE200238)
15	-	4	Part 34	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
16	-	1	Part 35	(STRADDLE MOUNT) NLA (ORDER RE200238)
16	-	1	Part 36	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
17	-	1	Part 37	(STRADDLE MOUNT) NLA (ORDER RE200238)
17	-	1	Part 38	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
18	R138322	1	Knob	-
19	-	1	Part 40	(STRADDLE MOUNT) NLA (ORDER RE200238)
19	-	1	Part 41	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (ORDER RE201854)
20	-	1	Part 42	(STRADDLE MOUNT) NLA (ORDER RE200238)
20	-	1	Part 43	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (ORDER RE201854)
21	-	1	Part 44	(STRADDLE MOUNT) NLA (ORDER RE200238)
21	-	1	Part 45	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (ORDER RE201854)
22	-	1	Part 46	(STRADDLE MOUNT) NLA (ORDER RE200238)
22	-	1	Part 47	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (ORDER RE201854)
23	-	6	Part 48	(STRADDLE MOUNT) NLA (ORDER RE200238)
23	-	6	Part 49	(WITH CAB/ISOLATED OPEN OPERATOR STATION) NLA (ORDER RE201854)
24	-	1	Part 50	(STRADDLE MOUNT) NLA (ORDER RE200238)
24	-	1	Part 51	(STRADDLE MOUNT) NLA (ORDER RE200238)
24	-	1	Part 52	(STRADDLE MOUNT) NLA (ORDER RE200238)
24	-	1	Part 53	(STRADDLE MOUNT) NLA (ORDER RE200238)
24	-	1	Part 54	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (SUB FOR RE179946 OR RE191730, THIS APPLICATION) (ORDER RE201854)
24	-	1	Part 55	(WITH CAB/ISOLATED OPEN OPERATOR STATION) (SHOWN) NLA (SUB FOR RE179946 OR RE191730, THIS APPLICATION) (ORDER RE201854)

CONTROL ASSEMBLY (ORIGINAL EQUIPMENT)

Нет текстового описания
