Hydraulic Filter, Suction Line, Rockshaft Supply Line

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY22470	2	Clamp	-
2	P69052	1	Suction Hose	-
3	RE70371	1	Oil Line	-
3	RE73507	1	Oil Line	(ORD RE207719) (ORD AP40191) (ORD 61M5066) (ORD 38H5005) (ORD 51M7047) (ORD T77858) (ORD SU295642) (ORD H22660) (ORD H75541) (ORD 19M7865) (ORD 14M7298) (ORD P72573) (ORD P69052) (ORD (2) AR21840)
3	RE207719	1	Oil Line	-
4	R138405	1	Oil Line	-
4	R140794	1	Oil Line	USE WITH RE73507
4	P72573	1	Oil Line	USE WITH RE207719
5	19M7981	1	Cap Screw	M8 X 55
6	RE45819	1	Bracket	-
7	R117351	1	Spacer	-
7	28H1884	1	Spacer	0.493" X 0.675" X 1/2", ORDER R117351
8	R109303	2	Clamp	-
8	R141613	2	Clamp	-
9	14M7298	1	Flange Nut	-
10	19M7865	2	Screw	M8 X 16, (HS, HEAD MARKED 10.9)
11	-	1	Part 17	ORDER RE45864 AND RE61251
11	RE72823	1	Filter Head	-
12	RE45864	1	Oil Filter	-
14	R176683	1	Packing	-
15	19M7807	3	Screw	M10 X 60, (HS, HEAD MARKED 10.9)
15	19M7785	3	Screw	M10 X 25, (HS, HEAD MARKED 10.9)
16	F1870R	2	O-Ring	-
17	T77932	3	O-Ring	-
18	38H5018	1	Elbow Fitting	-
19	RE54839	1	Hydraulic Hose	-
20	RE72569	1	Oil Line	ORDER AP40266
20	AP40266	1	Oil Line	-
21	RE57710	1	Oil Line	-
22	RE54847	1	Oil Line	-
23	51M7045	3	O-Ring	19.300 X 2.200 mm
24	R177081	1	Spacer	ORDER R140816
24	R140816	1	Spacer	-
25	R10093	1	O-Ring	-
26	R26448	1	O-Ring	-
27	R114412	1	Fitting	-
28	38H5066	2	Elbow Fitting	-
29	T77858	4	O-Ring	-
30	R109228	1	Hose	-
31	TY22470	2	Clamp	-
32	R29936	1	O-Ring	-
33	T60340	1	Drain Plug	-
34	14M7167	1	Lock Nut	M10
35	19M7784	1	Screw	M10 X 20
36	P72833	1	Bracket	-
37	R73384	1	Clamp	-
13A	RE61251	1	Base	-
13B	-	1	Part 21	(ORD RE72823)

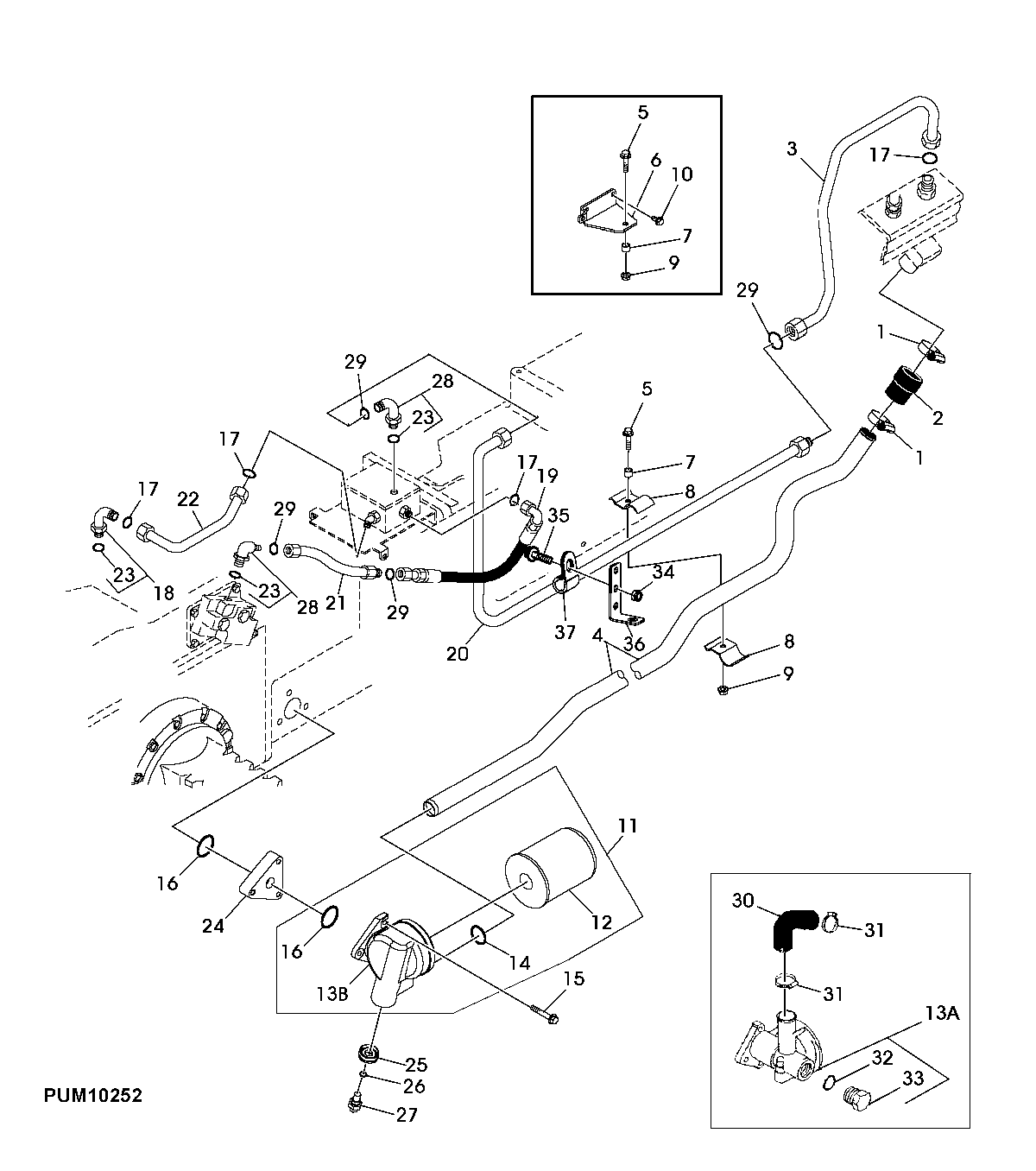

Hydraulic Filter, Suction Line, Rockshaft Supply Line

Нет текстового описания
