Открытый узел

Main Wiring Harness, SyncShuttle™, OOS (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	SJ32904	1	Wiring Harness	SUB FOR 28985
2	SU33199	1	Bracket	-
3	AL76702	5	Relay	-
4	LVA13729	2	Relay	-
5	57M10426	2	Elec. Connector Accessory	-
6	Z61311	5	Elec. Connector Housing	-
7	19M7139	1	Cap Screw	M8 X 20
8	16M7114	4	Rivet	6 mm
9	12H295	1	Lock Washer	0.190"
10	14M7375	1	Flange Nut	M5
11	57M8871	3	Elec. Connector Terminal	-
12	T28585	2	Electrical Connector Assy	-
13	24M7207	1	Washer	8.400 X 24 X 2 mm
14	57M8908	1	Clip	-
15	57M11580	1	Elec. Connector Accessory	-
16	57M7260	4	Elec. Connector Housing	-
17	57M10963	3	Elec. Connector Terminal	-
18	RE12363	1	Electrical Connector Assy	-
19	57M7328	2	Elec. Connector Housing	-
20	57M7263	1	Elec. Connector Housing	-
21	RE42470	1	Switch	-
22	57M10962	3	Elec. Connector Terminal	-
23	RE12364	1	Electrical Connector Assy	-
24	R107991	2	Clamp	-
25	19M7784	1	Screw	M10 X 20
26	57M8869	1	Elec. Connector Terminal	-
27	R213663	3	Clamp	-
28	57M8056	1	Relay Module	-
29	37H137	4	Screw	0.190" X 5/8"
30	57M10425	3	Elec. Connector Accessory	-
31	57M7255	1	Elec. Connector Housing	-
32	57M8815	7	Elec. Connector Housing	SUB FOR T28583
33	57M7183	1	Elec. Connector Accessory	-
34	RE262484	1	Diode	-
35	ET15766	1	Elec. Connector Housing	-
36	RE186986	3	Junction Block	-
37	57M8875	2	Elec. Connector Terminal	-
38	37M7061	3	Screw	M5 X 20
39	57M7280	1	Elec. Connector Housing	-
40	57M7256	1	Elec. Connector Housing	-
41	RE234727	1	Starter Relay	-
42	RE224163	1	Alarm System	-
43	57M7560	2	Elec. Connector Terminal	-
44	57M8905	2	Elec. Connector Housing	-
45	57M7839	1	Electrical Connector Assy	-
46	57M7261	2	Elec. Connector Housing	-
47	57M7262	1	Elec. Connector Housing	-
48	57M8484	1	Elec. Connector Housing	-
49	SJ12475	1	Cover	-
50	SU28023	1	Label	-
51	57M9772	1	Elec. Connector Housing	-

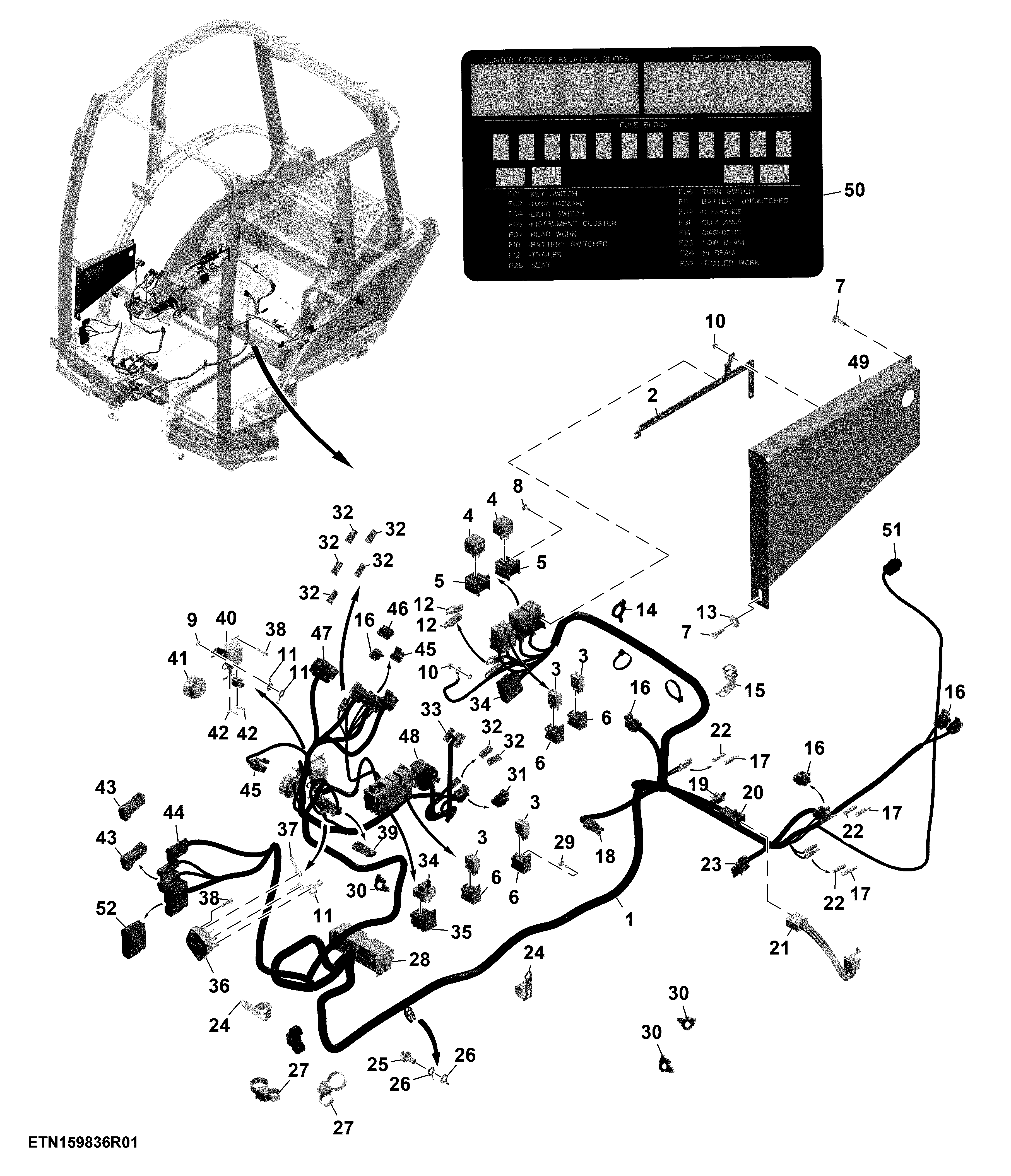

Main Wiring Harness, SyncShuttle™, OOS (2/2)

Нет текстового описания
