Winch (4000) (High Speed) (Direct Drive)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

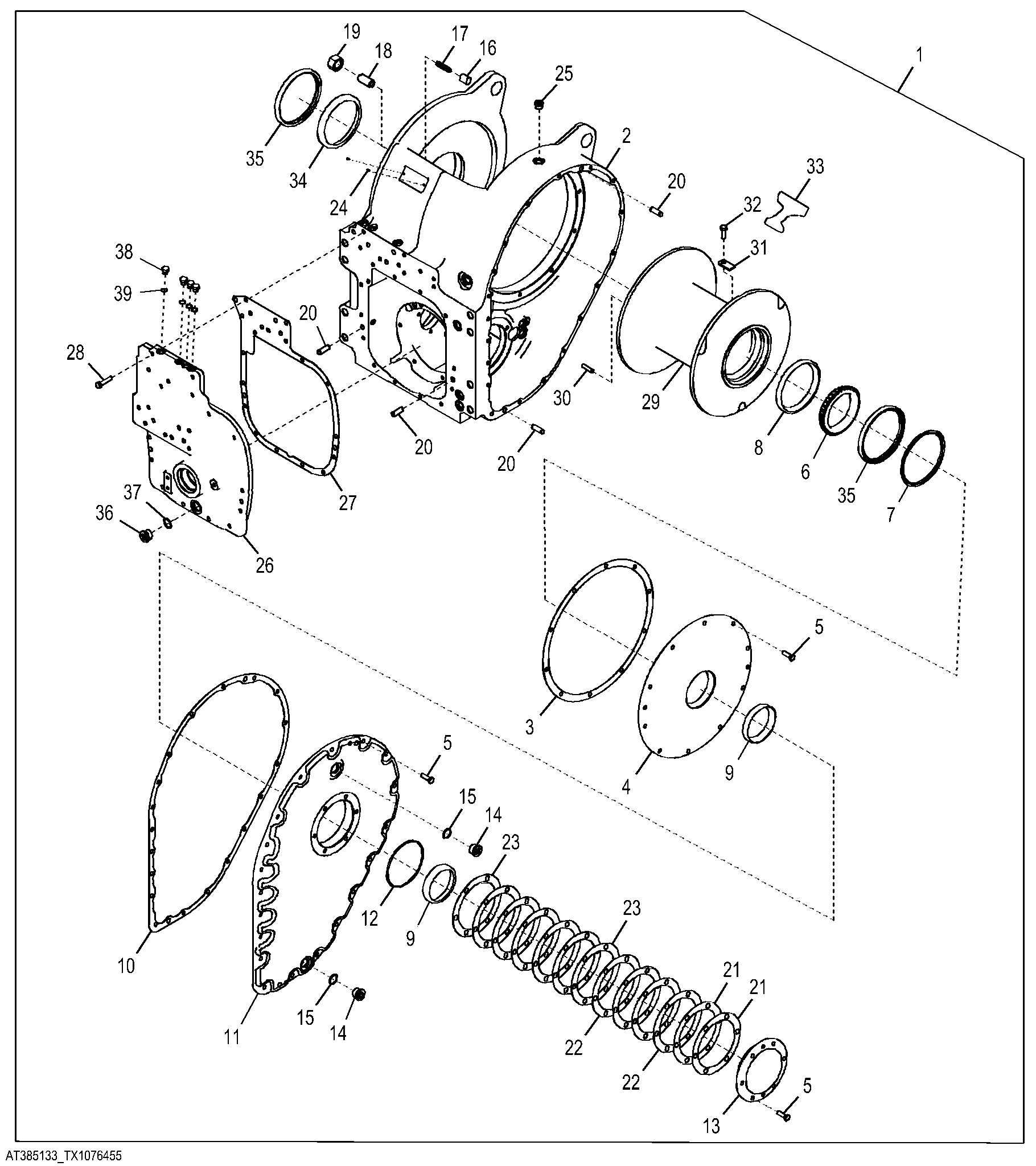

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT385129	1	Winch	Line Fill Complete Winch Additional Components On Separate Pages
2	T84710	1	Housing	-
3	T84699	1	Gasket	-
4	T142170	1	Bearing Housing W/O Bearing	-
5	19M7662	35	Cap Screw	M10 X 30
6	JD8915	1	Bearing Cone	-
7	T142269	1	V-Ring Seal	-
8	JD8245	1	Bearing Cup	-
9	JD8210	2	Bearing Cup	-
10	T84701	1	Gasket	-
11	T84700	1	Cover	-
12	T51625	1	O-Ring	-
13	T84702	1	Bearing Housing W/O Bearing	-
14	64H1020	2	Drain Plug	SUB FOR T64769
15	U12547	2	O-Ring	-
16	T132916	1	Arrestor	-
17	T132915	1	Compression Spring	-
18	T132914	1	Set Screw	-
19	14M7278	1	Nut	M24
20	T26565	4	Dowel Pin	-
21	R46323	2	Shim	-
22	R46324	4	Shim	-
23	R46325	7	Shim	-
24	37H26	2	Screw	0.116" X 1/4"
25	R33138	1	Fitting	-
26	T128161	1	Housing	-
27	T128162	1	Gasket	-
28	19M7572	16	Cap Screw	M10 X 45
29	AT151125	1	Drum	8 in., (INCLUDES U42011)
29	AT181675	1	Gear	Freespool Ring Gear Kit, USE WITH AT151125; INCLUDES T84696, (6) U42011, T162677
30	U42011	6	Dowel Pin	-
31	T52368	1	Strap	-
32	19M7662	1	Cap Screw	M10 X 30
33	T133170	1	Wedge	-
34	JD8245	1	Bearing Cup	-
35	AT173348	2	Seal	-
36	64H1020	2	Drain Plug	SUB FOR T64769
37	U12547	1	O-Ring	-
38	64H1004	5	Drain Plug	SUB FOR R27218
39	T77857	5	O-Ring	-

Winch (4000) (High Speed) (Direct Drive)
