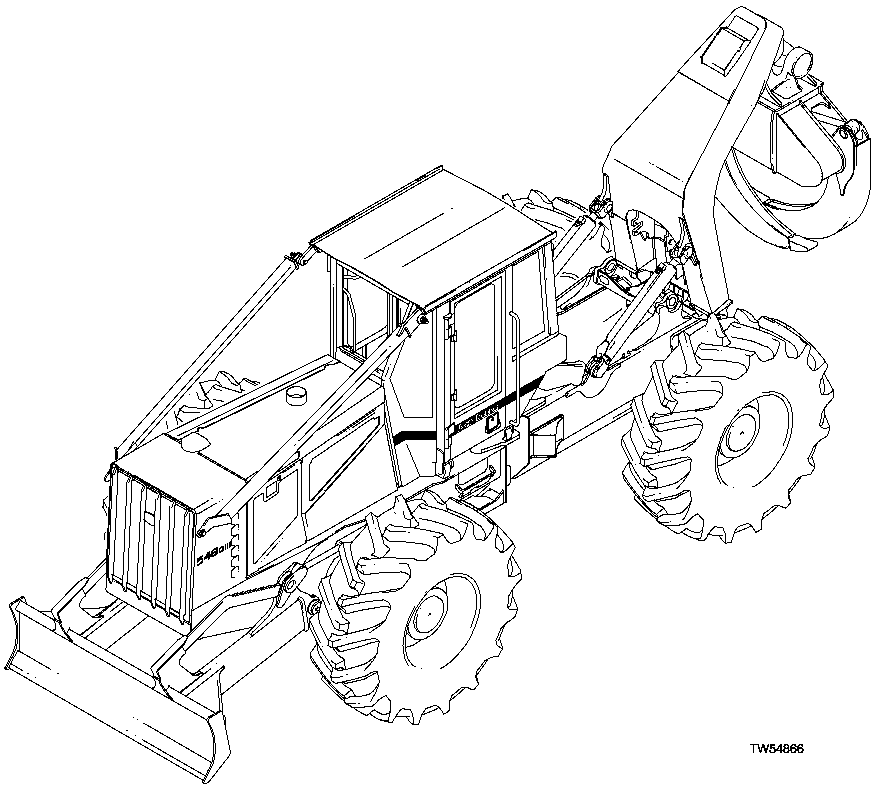

540G-III/360DC Cable and 548G-III/360DG Grapple Skidders (S.N. 604614 - 630435)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	10 SERVICE BRAKES	-
-	-	1	40 PTO OR WINCH DRIVE	-
-	-	1	38 GRAPPLE	-
-	-	1	37 ARCH OR BOOM OR CRANES	-
-	-	1	32 GRAPPLE	-
-	-	1	30 WINCH	-
-	-	1	21 MAIN HYDRAULIC SYSTEM	-
-	-	1	20 SAFETY, CONVENIENCE AND MISCELLANEOUS	-
-	-	1	19 SHEET METAL AND STYLING	-
-	-	1	18 OPERATOR'S STATION	-
-	-	1	17 FRAME CHASSIS OR SUPPORTING STRUCTURE	-
-	-	1	16 ELECTRICAL SYSTEM	-
-	-	1	13 MISCELLANEOUS VEHICLE	-
-	-	1	11 PARKING BRAKES	-
-	-	1	1 WHEELS	-
-	-	1	9 STEERING SYSTEM	-
-	-	1	7 CLUTCH	-
-	-	1	5 ENGINE AUXILIARY SYSTEM	-
-	-	1	04A Engine 00	-
-	-	1	03C Transmission DF180 Without Winch YZ19000	-
-	-	1	03B Transmission DF180 with Direct Drive and Winch YZ18999	-
-	-	1	03A Transmission	-
-	-	1	02D Front Axle, 1200 Narrow TMIV YZ19534	-
-	-	1	02C AXLES AND SUSPENSION SYSTEMS	-
-	-	1	02B Front Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19628	-
-	-	1	02A Rear Axle with Differential Lock - 1200 Series TeamMate™ IV YZ19535	-
-	-	1	04B Engine 6068TDW58-RE515432	-

540G-III/360DC Cable and 548G-III/360DG Grapple Skidders (S.N. 604614 - 630435)

John Deere › SKIDDER, LOG
