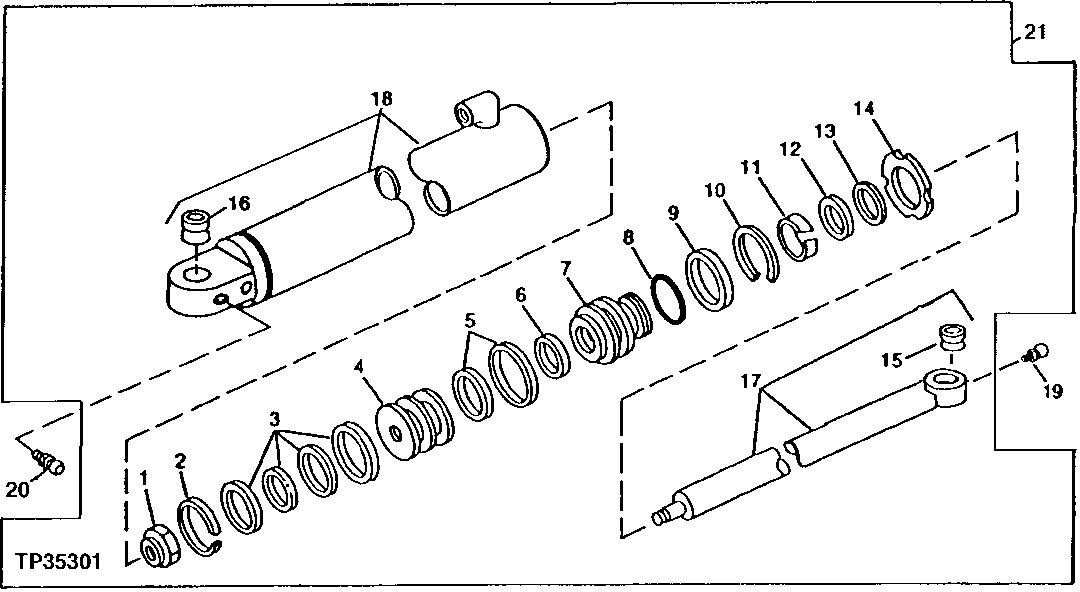

REPLACEMENT GRAPPLE CYLINDER (SINGLE FUNCTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H170539	1	Nut	(548E AND 648E)
2	R81775	1	Wear Ring	(B) (548E AND 648E)
3	RE20343	1	Seal	(B) (548E AND 648E)
4	H145456	1	Piston	(SUB FOR R81977)(548E AND 648E)
5	AH146561	1	Seal	(A) (548E AND 648E)
6	H152203	1	Seal	(548E AND 648E)
7	H157978	1	Hydr. Cylinder Rod Guide	(SUB FOR H154353)(548E AND 648E)
8	F950R	1	O-Ring	(548E AND 648E)
9	R81862	1	Back-Up Ring	(B) (548E AND 648E)
10	R81787	1	Snap Ring	(548E AND 648E)
11	H152794	1	Wear Ring	(A) (548E AND 648E)
12	R91731	1	Ring	(B) (548E AND 648E)
13	AH146557	1	Seal	(A) (548E AND 648E)
14	R81793	1	Nut	(548E AND 648E)
15	R82077	1	Bushing	(548E AND 648E)
16	R82076	1	Bushing	(548E AND 648E)
17	AH135601	1	Rod	(548E) (50 MM O.D.)
17	AH134887	1	Hydraulic Cylinder Rod	(648E) (50 MM O.D.)
18	AH135600	1	Hydraulic Cylinder Barrel	(548E) (100 MM I.D.)
18	AH134886	1	Hydraulic Cylinder Barrel	(648E) (100 MM I.D.)
19	JD7844	1	Lubrication Fitting	(548E AND 648E)
20	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
21	AH148706	1	Hydraulic Cylinder	(548E) (8.0 SQ. FT. GRAPPLE)
21	AH148707	1	Hydraulic Cylinder	(648E) (10.0 SQ. FT. GRAPPLE)
21	AH210484	1	Hydraulic Cylinder Kit	INCLUDES ALL (A) PARTS (ROD) (548E, 648E), (SUB FOR AH148164)
21	AH212101	1	Hydraulic Cylinder Kit	INCLUDES ALL (B) PARTS (BORE) (548E, 648E), (SUB FOR AH149844)

REPLACEMENT GRAPPLE CYLINDER (SINGLE FUNCTION)
