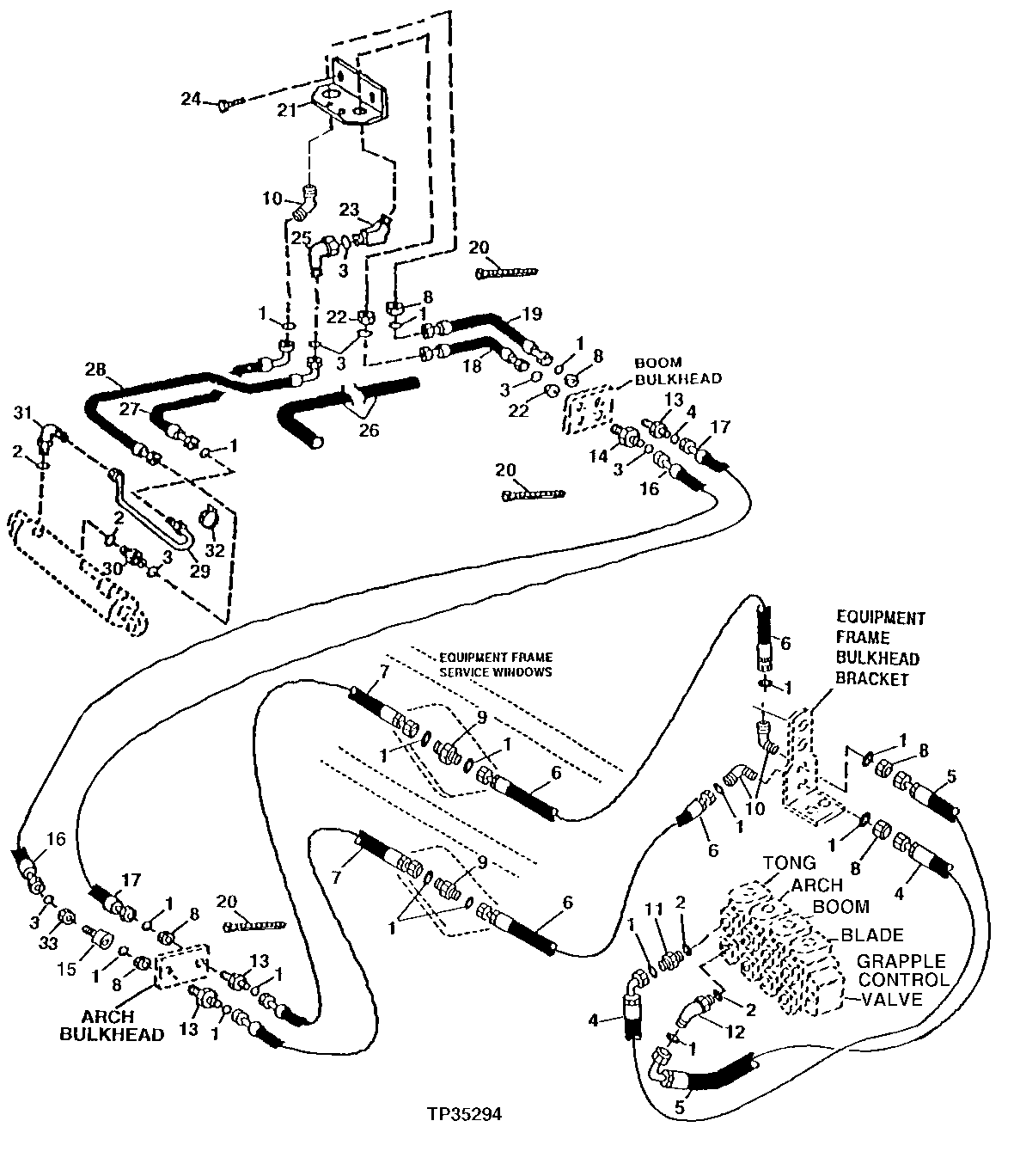

GRAPPLE CYLINDER LINES - DUAL FUNCTION

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070"), (548E, 648E AND 748E)
2	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116"), (548E, 648E AND 748E)
3	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (548E, 648E AND 748E)
4	AT162681	1	Hydraulic Hose	30.1752" X 1206 mm (47-1/2") X 30.1752", (548E, 648E AND 748E)
5	AT167557	1	Hydraulic Hose	(548E, 648E AND 748E)
6	AT166041	2	Hydraulic Hose	(648E)
6	AT191283	2	Hydraulic Hose	(748E), (SUB FOR AT169881)
7	AT162859	2	Hydraulic Hose	30.1752" X 1047 mm (41-1/4") X 30.1752", (548E, 648E AND 748E)
8	T78707	6	Nut	30.175 mm (1-3/16"), (548E, 648E AND 748E)
9	38H1272	2	Union Fitting	(548E, 648E AND 748E)
10	38H1324	3	Elbow Fitting	(548E, 648E AND 748E)
11	38H1215	1	Adapter Fitting	(548E, 648E AND 748E)
12	38H1048	1	Elbow Fitting	(548E, 648E AND 748E) (45 DEGREE)
13	38H1276	3	Adapter Fitting	(548E, 648E AND 748E) (90 DEGREE)
14	38H1275	1	Adapter Fitting	(548E, 648E AND 748E)
15	38H1474	1	Reducer	(548E, 648E AND 748E) (90 DEGREE)
16	AT162699	1	Hydraulic Hose	(548E, 648E AND 748E)
17	AT162700	1	Hydraulic Hose	(548E, 648E AND 748E)
18	AT162702	1	Hydraulic Hose	(548E, 648E AND 748E)
19	AT162701	1	Hydraulic Hose	(548E, 648E AND 748E) (90 DEGREE)
20	R44302	1	Tie Band	(548E, 648E AND 748E)
21	T143584	1	Plate	-
22	T78716	1	Nut	20.625 mm (13/16")
23	38H1321	1	Elbow Fitting	-
24	19M7843	2	Screw	M16 X 35
25	38H1095	1	Elbow Fitting	-
26	T143665	1	Hose	-
27	AT162706	1	Hydraulic Hose	30.1752" X 999 mm (39-1/4") X 30.1752"
28	AT162705	1	Hydraulic Hose	13/16" X 1092 mm (43") X 13/16"
29	AT158468	1	Tube	(748E) (11.5 FT. HEAD)
29	AT158469	1	Tube	(748E) (14.5 FT. HEAD)
29	AT158468	1	Tube	(648E)
30	38H1175	1	Adapter Fitting	(648E) (748E, USE WITH 11.5 FT. HEAD)
30	38H1013	1	Elbow Fitting	(748E) (USE WITH 14.5 FT. HEAD)
31	38H1007	1	Elbow Fitting	(648E) (748E, USE WITH 11.5 FT. HEAD)
31	38H1052	1	Elbow Fitting	(748E) (USE WITH 14.5 FT. HEAD)
32	C16054	1	Clamp	(648E) (USE WITH 9.5 FT. HEAD)
32	AR85327	1	Clamp	(648E) (USE WITH 11.5 FT. HEAD)
32	AR85327	1	Clamp	(748E)
33	38H1356	1	Tube Nut	-

GRAPPLE CYLINDER LINES - DUAL FUNCTION
