EQUIPMENT FRAME (GRAPPLE, SINGLE FUNCTION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

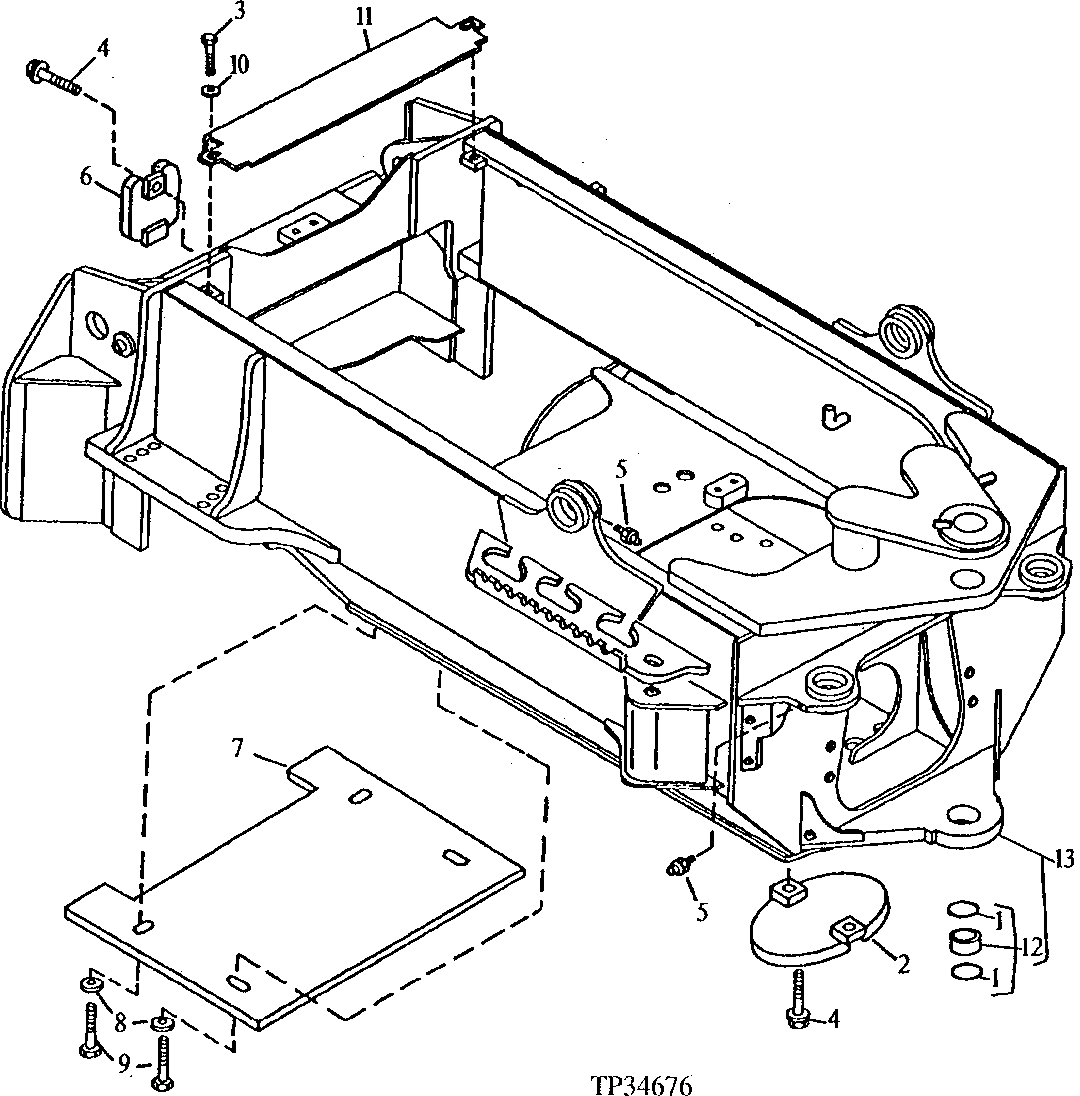

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T141886	2	Seal	(548E, 648E AND 748E)
2	AT140344	1	Door	(548E)
2	AT136094	1	Door	(648E)
2	AT136175	1	Door	(748E)
3	19M7791	2	Bolt	M12 X 40
4	19M7493	3	Cap Screw	M12 X 40, (548E, 648E AND 748E)
5	JD7759	4	Lubrication Fitting	(548E, 648E AND 748E)
6	AT151987	1	Door	(548E), (SUB FOR AT140345)
6	AT162454	1	Door	(648E AND 748E), (SUB FOR AT136095, THIS APPLICATION)
7	AT162815	1	Door	(548E) (USE WITH SMALL AXLE), (SUB FOR AT144848)
7	AT162814	1	Door	(648E AND 748E) (USE WITH LARGE AXLE), (SUB FOR AT144849)
8	24M7242	4	Washer	21.400 X 42 X 5 mm, (548E AND 648E)
9	19M8224	4	Cap Screw	M20 X 60, (548E AND 648E)
10	24M7180	2	Washer	13 X 37 X 3 mm
11	T132030	1	Cover	-
12	AT142307	1	Self-Aligning Bushing	(548E, 648E AND 748E)
13	AT149695	1	Frame	(548E) (CONVENIENCE ASSEMBLY)
13	AT166333	1	Frame	(548E) (CONVENIENCE ASSEMBLY)
13	AT149761	1	Frame	(648E) (CONVENIENCE ASSEMBLY)
13	AT166341	1	Frame	(648E) (CONVENIENCE ASSEMBLY)
13	AT149768	1	Frame	(748E) (CONVENIENCE ASSEMBLY)
13	AT166358	1	Frame	(748E) (CONVENIENCE ASSEMBLY)
13	-	1	Part 23	(548E, 648E AND 748E) RIGHT ( T148414, USE IF AVAILABLE) (NOT ILLUSTRATED)
13	-	1	Part 24	(548E, 648E AND 748E) LEFT ( T148415, USE IF AVAILABLE) (NOT ILLUSTRATED)

EQUIPMENT FRAME (GRAPPLE, SINGLE FUNCTION)
