COUPLING SHAFT (SERIAL NO. -535708)

Нет текстового описания

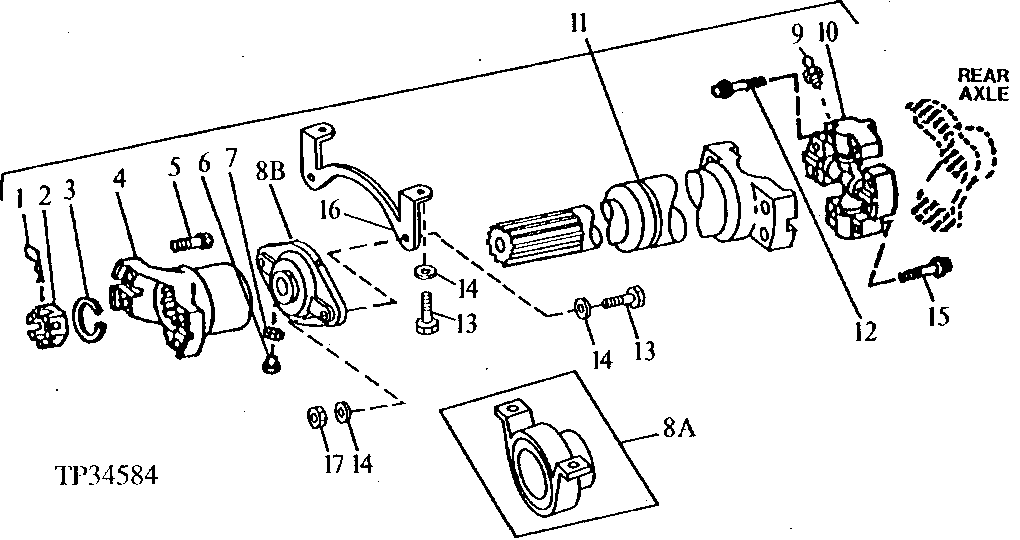

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T137932	1	Nut	(548E, 648E, 748E)
2	11M7083	1	Cotter Pin	3.200 X 50 mm, (548E, 648E, 748E)
3	T137960	1	Snap Ring	(548E, 648E, 748E)
4	T190910	1	Universal Joint Yoke	(548E)(648E WITH SINGLE FUNCTION GRAPPLE), (SUB FOR T132317)
4	T190908	1	Universal Joint Yoke	(648E WITH DUAL FUNCTION GRAPPLE)(748E), (SUB FOR T132318)
5	19H2960	4	Cap Screw	3/8" X 1-3/4", (548E)
5	19H3183	4	CAP SCREW	1/2" X 2-1/8", (648E) (USE WITH SINGLE AND DUAL FUNCTION GRAPPLE)
5	19H3752	4	Cap Screw	1/2" X 2-1/8", (748E)
6	T137959	1	Set Screw	(548E, 648E, 748E)
7	14H774	1	Nut	3/8", (548E, 648E, 748E)
9	JD7759	1	Lubrication Fitting	(548E, 648E, 748E)
10	-	1	Part 14	(548E) (SUB AT199701) (SEE FOLLOWING PAGE), (SUB FOR AT149826 AND AT73775)
10	AT149827	1	Cross And Bearing Assembly	(648E WITH SINGLE AND DUAL FUNCTION GRAPPLE) (748E)
11	-	1	Part 16	(548E) ( AT140419 NO LONGER AVAILABLE) (SUB AT199118) (SEE FOLLOWING PAGE FOR COMPONENTS)
11	AT199118	1	Universal Joint With Shaft	NLA; SUB AT498215
11	AT498215	1	Universal Joint With Shaft	-
11	-	1	Part 19	( AT157116 AND AT140422 NO LONGER AVAILABLE) (SUB AT199110) (SEE FOLLOWING PAGE FOR COMPONENTS)
12	19H2960	4	Cap Screw	3/8" X 1-3/4", (548E)
12	19H3183	4	CAP SCREW	1/2" X 2-1/8", (648E AND 748E)
13	19M7409	4	Cap Screw	M16 X 50, (548E, 648E AND 748E)
14	24M7241	6	Washer	17 X 34 X 4 mm, (548E, 684E AND 748E)
15	19H2960	4	Cap Screw	3/8" X 1-3/4", (548E)
15	19H3752	4	Cap Screw	1/2" X 2-1/8", (648E AND 748E) USE WITH SINGLE AND DUAL FUNCTION GRAPPLE)
16	T142581	1	Angle	(548E, 648E AND 748E)
17	14M7276	2	Nut	M16, (548E, 648E AND 748E)
8A	-	1	Part 11	(548E, 648E, 748E) ( AT145080 NO LONGER AVAILABLE) (SUB AT156939 BEARING AND T142581 ANGLE), (ALSO ORDER (4) 19M7409, (6) 24M7241 AND (2) 14M7276)
8B	AT156939	1	Bearing With Housing	(548E, 648E, 748E)
