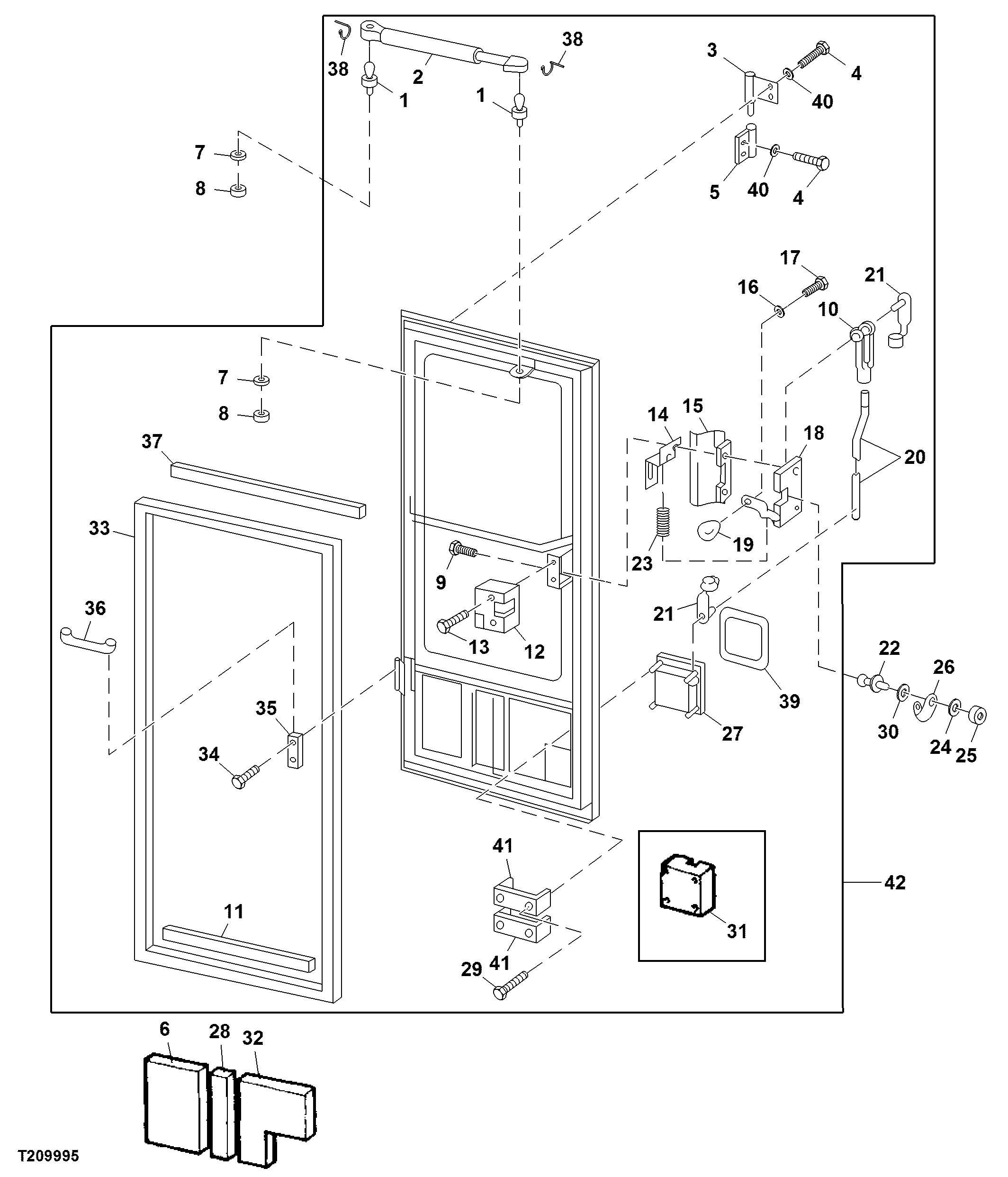

Cab and Canopy Door (SN 548416- )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	56M7007	2	Ball Joint Retainer	(548G, 648G AND 748G), (NOT ILLUSTRATED)
1	T142651	2	Ball Stud	(548E, 648E AND 748E)
2	AT192449	1	Cylinder	(SUB FOR AT180176)(548G, 648G AND 748G)
3	AT162930	2	Hinge	(548G, 648G AND 748G) UPPER RIGHT
3	AT162955	2	Hinge	(548G, 648G AND 748G) UPPER LEFT
4	19M7784	8	Screw	M10 X 20, (548G, 648G AND 748G)
4	24H1308	8	Washer	13/32" X 1" X 0.134", (548G, 648G AND 748G)
5	AT162929	2	Hinge	(548G, 648G AND 748G) LOWER
6	T131237	2	Pad	LEFT SIDE, (548G, 648G AND 748G)
7	12M7065	2	Lock Washer	8 mm, (548G, 648G AND 748G)
8	14H785	2	Nut	5/16", (548G, 648G AND 748G)
9	U43002	4	Screw	(548G, 648G AND 748G)
10	T131176	1	Yoke	(548G, 648G AND 748G)
10	T150163	1	Yoke	(548E, 648E AND 748E)
11	-	1	Part 15	(548G, 648G AND 748G) LOWER DOOR(CUT TO LENGTH) ( T131133 IS NO LONGER AVAILABLE) CUT TO LENGTH, (MAKE FROM AT66778)
12	T149188	1	Cover	(548G, 648G AND 748G) RIGHT SIDE, (SUB FOR T131153)
12	T149189	1	Cover	LEFT SIDE, (SUB FOR T131154)
13	19M7774	6	Screw	M6 X 12, (548G, 648G AND 748G)
14	T149220	1	Bracket	RIGHT (548G, 648G AND 748G)
14	T150148	1	Bracket	LEFT (548G, 648G AND 748G)
15	T149191	1	Plate	(548G, 648G AND 748G)
16	12H304	1	Lock Washer	3/8", (548G, 648G AND 748G)
17	19H1894	1	Cap Screw	3/8" X 3/4", (548G, 648G AND 748G)
18	AT165224	1	Latch	RIGHT SIDE (548G, 648G AND 748G)
18	AT165225	1	Latch	LEFT SIDE (548G, 648G AND 748G)
19	M80721	1	Knob	(548G, 648G AND 748G)
20	T149187	1	Rod	(SUB FOR T153333)
21	T122370	2	Spring Locking Pin	SUB FOR T131235 (548G, 648G AND 748G)
22	AR91896	1	Striker	(548G, 648G AND 748G)
23	T150146	1	Extension Spring	(548G, 648G AND 748G)
24	24M7240	1	Washer	13 X 25 X 3 mm, (548G, 648G AND 748G)
25	K40006	1	Lock Nut	11.125 mm (7/16"), (548G, 648G AND 748G)
26	T135583	1	Guard	(548G, 648G AND 748G)
27	AT165226	1	Lock	RIGHT SIDE (548G, 648G AND 748G)
27	AT165227	1	Lock	LEFT SIDE (548G, 648G AND 748G), (ALSO ORDER T186245)
27	T186245	1	Gasket	-
28	T131238	2	Pad	(548G, 648G AND 748G)
29	T124407	4	Screw	4.826 X 15.875 mm (0.190" X 5/8")
30	24H1226	1	Washer	1/2" X 1-1/4" X 0.083"
31	T149127	1	Bracket	(548G, 648G AND 748G)
32	T149185	1	Pad	LEFT SIDE (548G, 648G AND 748G)
32	T149184	1	Pad	RIGHT SIDE (548G, 648G AND 748G)
33	T131080	1	Seal	(548G, 648G AND 748G)
34	19M7865	4	Screw	M8 X 16, (548G, 648G AND 748G)
35	T150171	2	Strap	(548G, 648G AND 748G)
36	T150172	1	Strap	(548G, 648G AND 748G)
37	-	1	Part 47	MAKE FROM T316499 CUT TO LENGTH
38	AT322573	2	Hinge	(DOOR LOWER) (548G, 648G AND 748G)
39	T186245	1	Gasket	(DOOR LATCH BRACKET) (548G, 648G AND 748G)
40	AT66778	1	Weatherstrip	(CUT TO LENGTH, APPROX 21.75")
41	T183606	2	Bracket	(DOOR LATCH) (548GG 648E AND 748G)
42	-	1	Part 52	(548G, 648G AND 748G), (SUB AT321368 RIGHT SIDE ( AT303908 NO LONGER AVAILABLE))
42	AT321368	1	Door	(SUB FOR AT171673, AT183896, AT303908)RIGHT SIDE (ALSO ORDER SCREEN, WINDOW DOOR PANEL AS REQUIRED)
42	AT303911	1	Door	(548G, 648G AND 748G) (LEFT SIDE) (ALSO ORDER SCREEN, WINDOW AND DOOR PANEL AS REQUIRED) (CHARCOAL GRAY ONLY)
