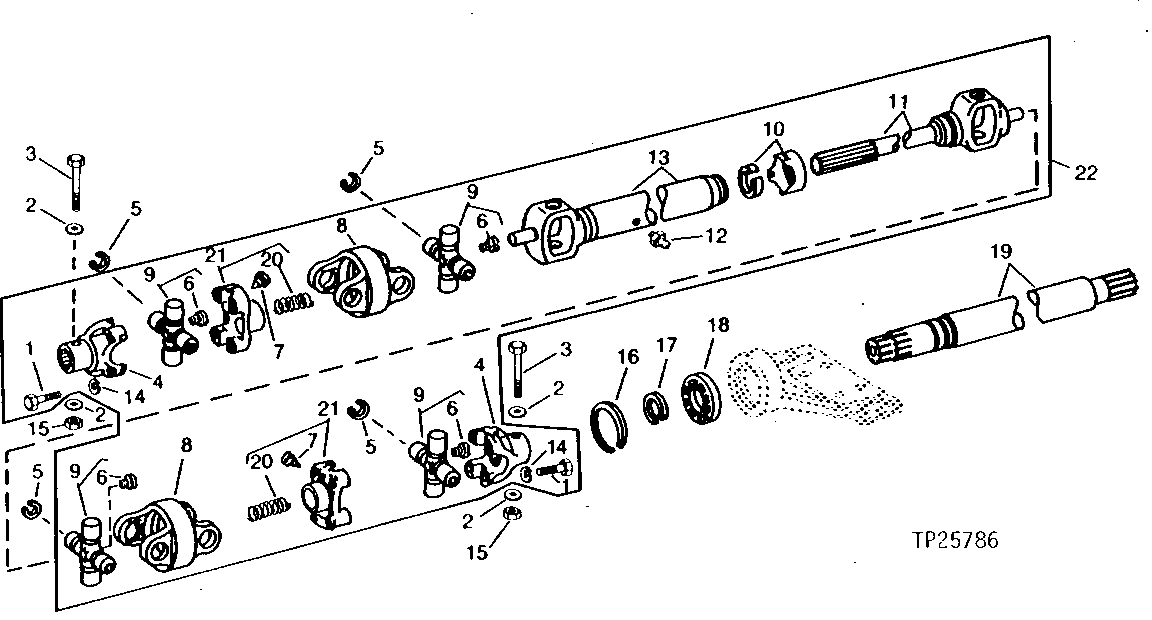

WINCH DRIVE LINE CONSTANT VELOCITY TELESCOPING JOINT (DANA-SPICER) [02L24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3374	8	Cap Screw	5/16" X 1-1/4"
2	R42729	4	Washer	-
3	19H2733	2	Cap Screw	3/8" X 2-3/8"
4	T56979	2	YOKE	-
5	N34377	12	SNAP RING	-
6	AT57867	4	Lubrication Fitting	-
7	AT57868	2	LUBRICATION FITTING	-
8	T56980	1	UNIVERSAL JOINT YOKE	-
9	AT54901	4	CROSS AND BEARING ASSEMBLY	SPIDER WITH BEARING
10	AT54898	1	SEAL KIT	-
11	AT54902	1	UNIVERSAL JOINT	-
12	JD7797	1	Lubrication Fitting	1/8"
13	AT78733	1	YOKE WITH TUBE	(SUB FOR AT54899)
14	12H303	2	Lock Washer	5/16"
15	14H1076	2	Nut	3/8"
16	A3815R	1	Snap Ring	-
17	F2370R	1	SNAP RING	-
18	JD8534	1	Ball Bearing	-
19	T45835	1	SHAFT	AUXILIARY DRIVE COUPLING
20	T71646	1	SPRING	-
21	AT68670	1	YOKE	-
22	AT49124	1	UNIVERSAL JOINT WITH SHAFT	(THIS NUMBER WILL CONTAIN EITHER MECHANICS OR DANA UNIVERSAL TELESCOPING JOINT)

WINCH DRIVE LINE CONSTANT VELOCITY TELESCOPING JOINT (DANA-SPICER) [02L24]
