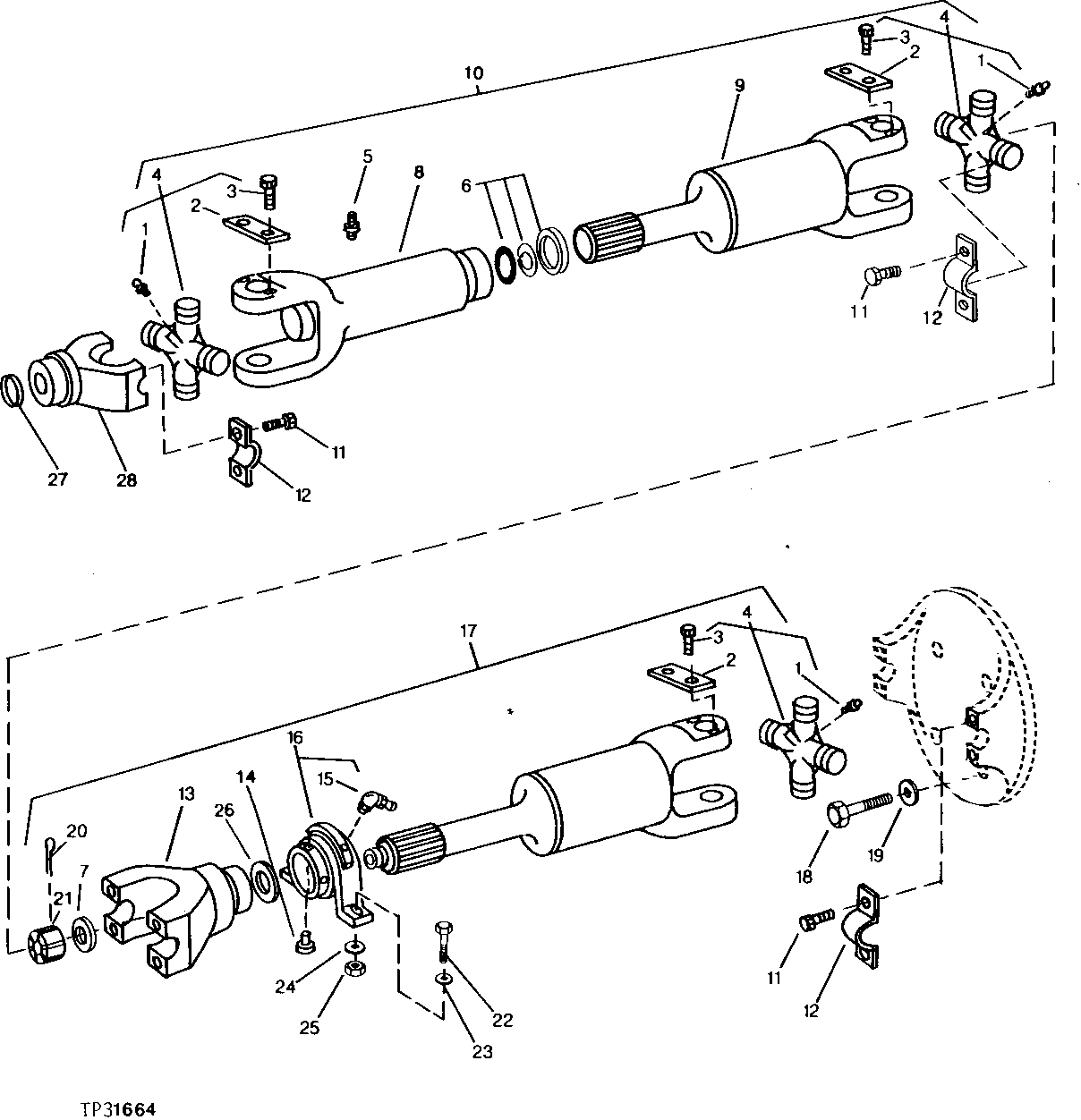

INPUT DRIVE SHAFTS AND DOUBLE U-JOINTS (SERIAL NO. 517647- ) [01C20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	3	Lubrication Fitting	-
2	T113783	3	PLATE	-
3	T113784	6	CAP SCREW	-
4	AT114511	3	KIT	-
5	JD7759	1	Lubrication Fitting	-
6	-	1	Part 6	( AT134938 NO LONGER AVAILABLE)
7	24H1276	1	Washer	-
8	-	1	Part 8	AT135751 NO LONGER AVAILABLE
9	AT135752	1	YOKE WITH TUBE	-
10	AT133113	1	YOKE WITH SHAFT	(SUB FOR AT107994) FOR HEAVY DUTY APPLICATIONS FURNISH AT150750 ALONG WITH T139905, R47655, (4) T140551, (4) T140552, (4) 14H807, (4) T66730, AND (4) T77706.
11	R85169	12	Screw	(SUB FOR T113121)
12	R85168	6	Clamp	(SUB FOR T113120)
13	T126008	1	UNIVERSAL JOINT YOKE	(SUB FOR T113116)
13	T126007	1	UNIVERSAL JOINT YOKE	(SUB FOR T122088)
14	T113716	1	PIN	-
15	JD7788	1	Lubrication Fitting	-
16	AT114341	1	BEARING WITH HOUSING	( AT134938 NO LONGER AVAILABLE)
17	AT129250	1	YOKE WITH SHAFT	USE IF AVAILABLE, (SUB FOR AT107996) (SUB AT133114)
17	AT133114	1	YOKE WITH SHAFT	(SUB FOR AT129250)
18	R74972	4	Screw	-
19	T23891	4	Washer	-
20	11M7083	1	Cotter Pin	3.200 X 50 MM
21	T119077	1	Nut	-
22	19M7813	2	Screw	M12 X 45
23	T21242	2	Washer	-
24	T21242	2	Washer	-
25	14M7299	2	Flange Nut	M12
26	T122090	1	WASHER	-
27	-	1	Part 29	( R89326 NOT REQUIRED THIS APPLICATION)
28	AT114690	1	UNIVERSAL JOINT YOKE	USE IF AVAILABLE, (SUB T126006)
28	T126006	1	UNIVERSAL JOINT YOKE	(SUB FOR AT114690)

INPUT DRIVE SHAFTS AND DOUBLE U-JOINTS (SERIAL NO. 517647- ) [01C20]
