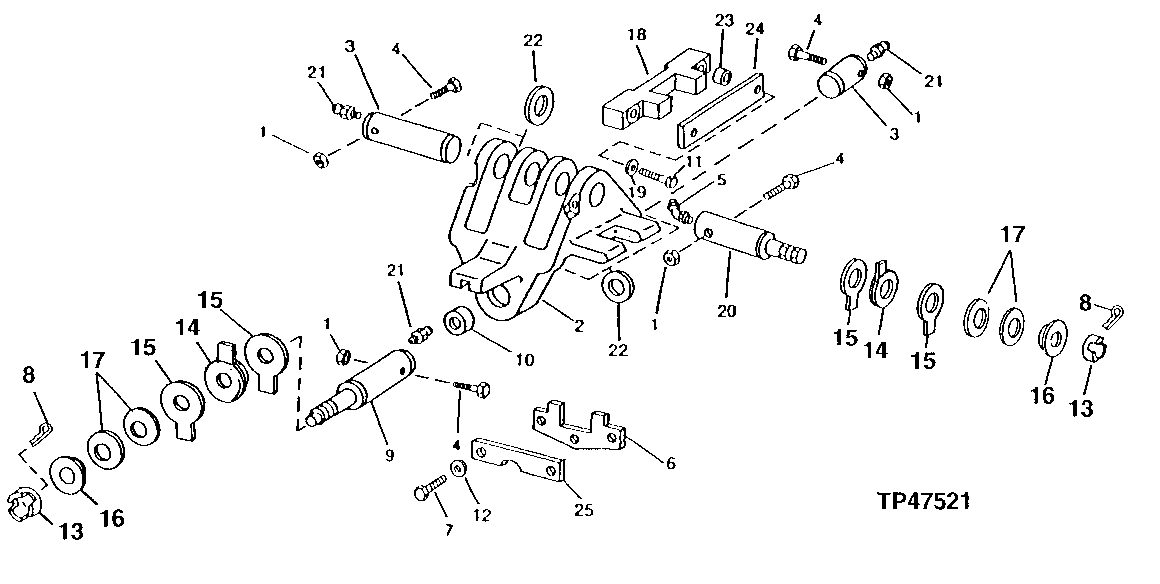

GRAPPLE DAMPENING YOKE (SINGLE FUNCTION BOOM) (SERIAL NO. -520036) [02K06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H129201	4	Lock Nut	(SUB FOR T32552 OR T11234)
2	-	1	Part 2	( T77967 NO LONGER AVAILABLE) (SUB AT117462) (ALSO ORDER T120179, AT135033, AT106760, (2) T90075, (2) T119137, (2) T119128 AND (2) 19M7949)
3	AT90345	2	PIN	(WITH GREASE FITTING) (SUB FOR T56471)
4	19H2104	4	Cap Screw	3/8" X 5"
5	JD7760	1	Lubrication Fitting	65°
6	T77975	1	PLATE	-
7	19M7753	3	Cap Screw	M12 X 70
8	11M7085	2	Cotter Pin	6.300 X 63 MM, (SUB FOR 11M7085)
9	T77974	1	PIN FASTENER	(SUB T120177, (3) T119128 AND (2) AT118732)
10	U12210	2	SELF-ALIGNING BUSHING	-
11	19M7364	2	Cap Screw	M12 X 80
12	24M7240	3	Washer	13 X 25 X 3 MM
13	14H991	2	Nut	1-1/2"
14	T77969	4	WASHER	-
15	T77970	6	PLATE	(SUB T120177, AT118732 AND (2) T119128)
16	T77971	2	SPACER	-
17	T44920	4	SPRING WASHER	SPRING
18	T77972	1	PLATE	(SUB T120179, AT135033, T119128, 19M7949 AND T119137)
19	24M7240	2	Washer	13 X 25 X 3 MM
20	T77968	1	PIN FASTENER	(SUB T120179, T119137, AT135033, (2) T119128 AND (2) 19M7949)
21	T162396	2	Lubrication Fitting	STRAIGHT, (SUB FOR JD7759 OR JD7798)
22	24H1592	1	Washer	2-1/32" X 2-1/2" X 0.105"
23	28H2539	2	Bushing	0.546" X 0.840" X 15/16"
24	T81364	1	Strap	-
25	T82469	1	STRAP	-

GRAPPLE DAMPENING YOKE (SINGLE FUNCTION BOOM) (SERIAL NO. -520036) [02K06]
