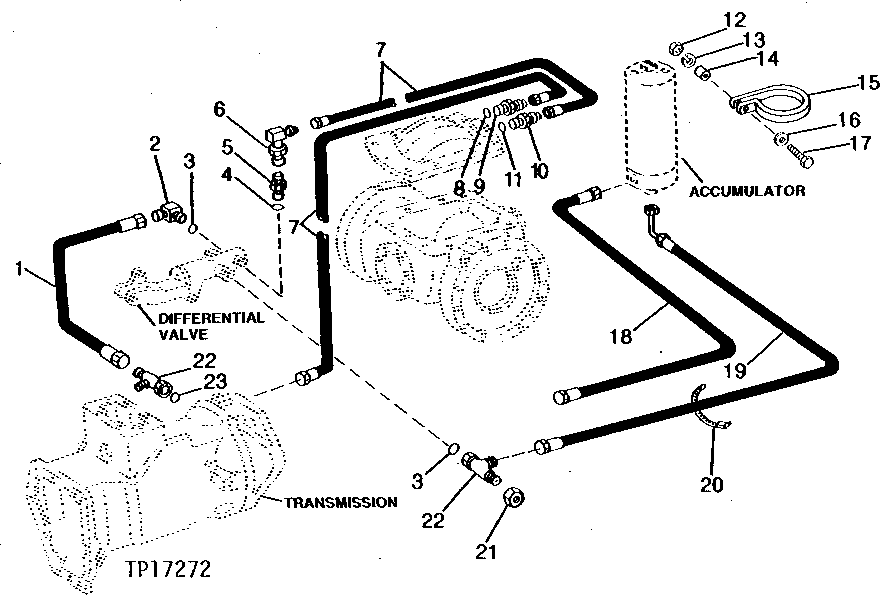

FRONT DIFFERENTAIL LOCK VALVE HYDRAULICS (WITH FRONT DIFFERENTIAL LOCK ONLY) [01D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16"
2	AT36464	1	ELBOW FITTING	-
3	R26287	2	O-Ring	-
4	R26286	1	O-Ring	-
5	R27272	1	Fitting	-
6	AR36552	1	Elbow Fitting	-
7	AR82265	2	HYDRAULIC HOSE	9/16" X 1 562 MM (61-1/2") X 9/16"
8	R26448	1	O-Ring	-
9	R27212	1	Fitting	PRESSURE PORT
10	R36075	1	Fitting	RETURN PORT
11	U12547	1	O-Ring	-
12	14H812	2	NUT	3/8"
13	24H1219	2	Washer	7/16" X 1" X 0.083"
14	28H1521	2	Spacer	0.493" X 0.675" X 9/16"
15	R35794	2	Clamp	-
16	24H1219	2	Washer	7/16" X 1" X 0.083"
17	19H2284	2	Cap Screw	3/8" X 7/8", (SUB 03H1495, THIS APPLICATION)
17	03H1833	2	Bolt	3/8" X 1-3/4"
18	AT72803	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 499 MM (59") X 9/16", (SUB FOR AT68899, THIS APPLICATION) INLET
19	AT46672	1	HYDRAULIC HOSE - FABRICATE	1/2" X 2 184 MM (86") X 9/16", OUTLET
20	H77698	1	Tie Band	-
21	R36926	1	FITTING	-
22	AR38337	2	Tee Fitting	CLUTCH HOUSING, LEFT SIDE PORT
23	R26375	1	O-Ring	-

FRONT DIFFERENTAIL LOCK VALVE HYDRAULICS (WITH FRONT DIFFERENTIAL LOCK ONLY) [01D11]
