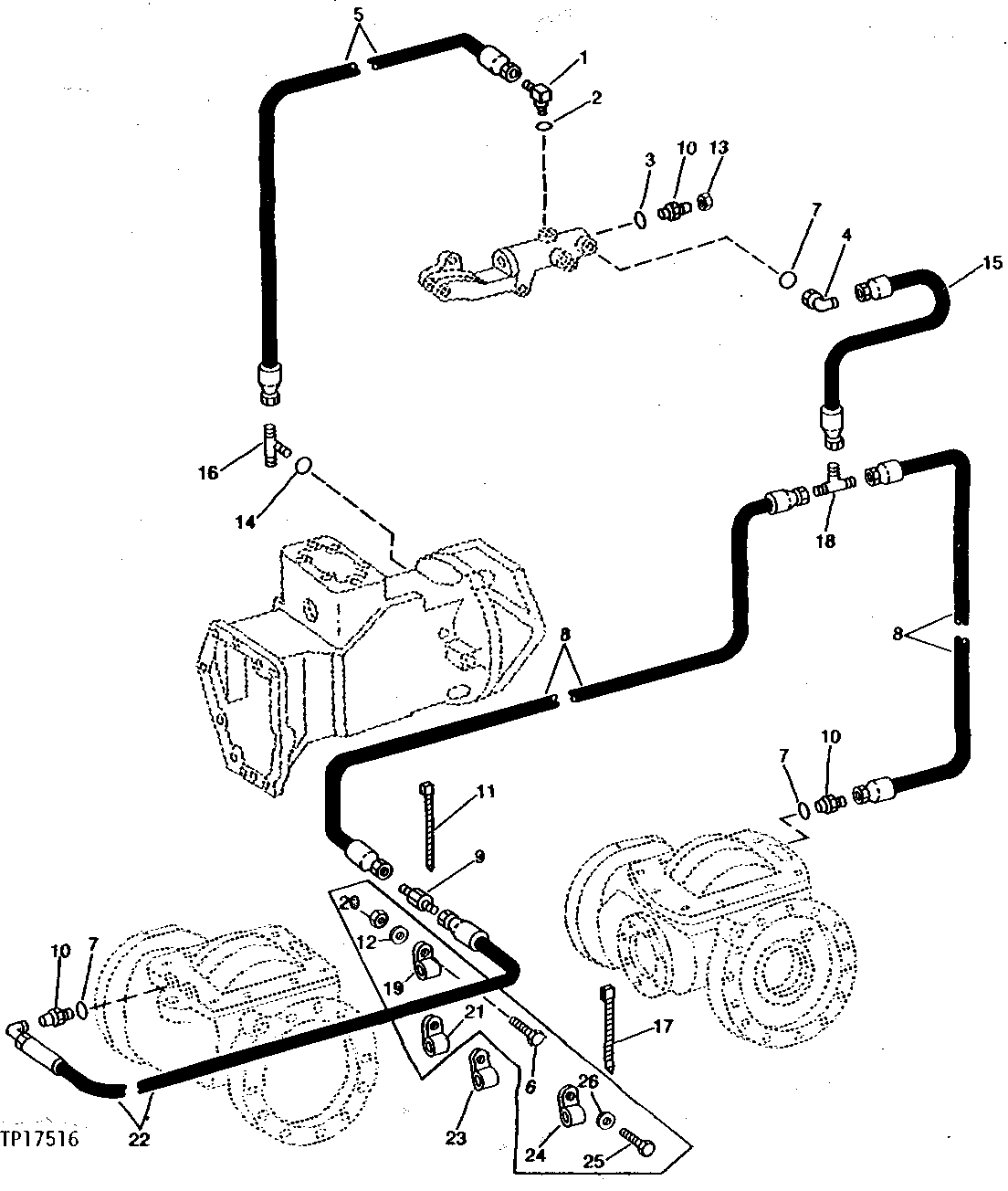

FRONT AND REAR DIFFERENTIAL LOCK VALVE HYDRAULICS [01D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT36464	1	ELBOW FITTING	-
2	R26287	1	O-Ring	-
3	R26286	1	O-Ring	-
4	AR36552	1	Elbow Fitting	-
5	AT34784	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16"
6	19H3411	1	Screw	3/8" X 1-1/8", (NO LONGER USED)
7	R26448	3	O-Ring	-
8	AR82265	2	HYDRAULIC HOSE	9/16" X 1 562 MM (61-1/2") X 9/16"
9	R27095	1	Fitting	-
10	R27212	3	Fitting	-
11	R44302	1	Tie Band	-
12	R42729	1	Washer	(NO LONGER USED)
13	R39783	1	Fitting	-
14	R26375	1	O-Ring	-
15	AR67565	1	Hose	-
16	AR38337	1	Tee Fitting	-
17	H77698	1	Tie Band	(SUB FOR T44946) 3 556 MM LONG (1-1/16" X 140")
18	T20926	1	Tee Fitting	-
19	R46667	2	Clamp	(NO LONGER USED)
20	14H1076	1	Nut	3/8", (NO LONGER USED)
21	AH97280	1	Clip	(NO LONGER USED)
22	AT71737	1	Hydraulic Hose	9/16" X 1 613 MM (63-1/2") X 9/16"
23	R73292	1	Clamp	(SUB FOR R46622)
24	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION) (NO LONGER USED)
25	19H1648	1	Cap Screw	3/8" X 3/4", (NO LONGER USED)
26	24H1305	1	Washer	13/32" X 13/16" X 0.065", (NO LONGER USED)

FRONT AND REAR DIFFERENTIAL LOCK VALVE HYDRAULICS [01D09]

Нет текстового описания
