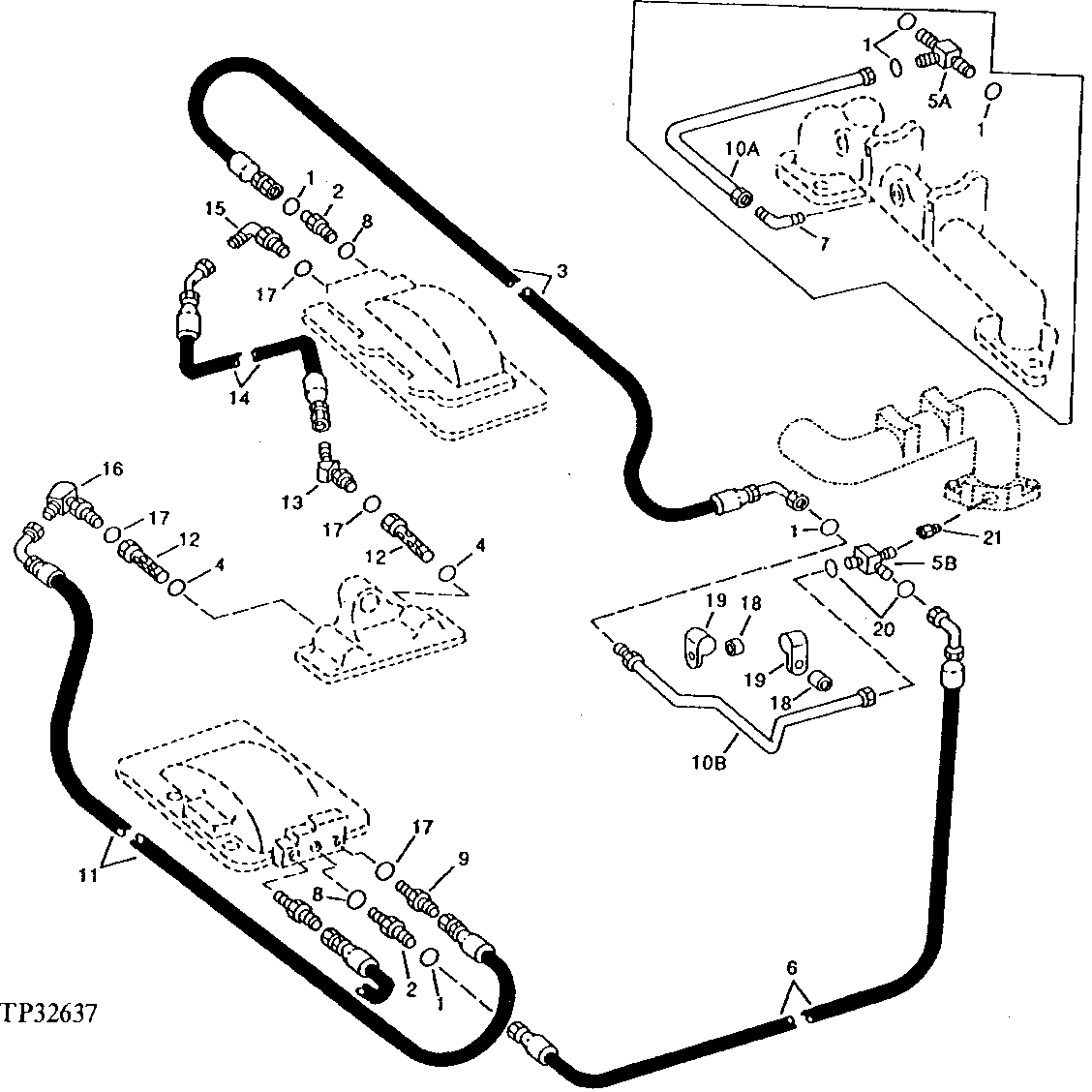

ALTERNATE DIFFERENTIAL RETURN SYSTEM [01D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77814	3	O-Ring	-
1	T77814	5	O-Ring	-
2	38H1166	2	Adapter Fitting	-
3	AT78954	1	HYDRAULIC HOSE - FABRICATE	9/16" X 4 166 MM (164") X 9/16"
4	U13639	2	O-Ring	-
6	AT78971	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 283 MM (50-1/2") X 9/16", (SUB FOR AT78953)
7	R67364	1	Elbow Fitting	-
8	R26287	2	O-Ring	-
9	R36075	1	Fitting	-
11	AT78956	1	HYDRAULIC HOSE	7/8" X 2 235 MM (88") X 7/8"
12	AT78910	2	Filter	-
13	AT48506	1	Elbow Fitting	-
14	AT77283	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 2 432 MM (95-3/4") X 1-1/16", (SUB FOR AT78955)
15	AT32331	1	Elbow Fitting	-
16	AH76990	1	Elbow Fitting	-
17	U12547	4	O-Ring	-
18	28H1522	2	Spacer	0.493" X 0.675" X 11/16"
18	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
19	T74410	2	Clamp	-
20	R87627	2	O-RING	(SUB FOR R27976, THIS APPLICATION)
21	15H511	1	Pipe Bushing	1/8"
5A	T78561	1	TEE FITTING	(SUB AT84233, AT161752, (2) R87627 AND AT78971)
5B	AT161752	1	Tee Fitting	(SUB FOR AT84234, THIS APPLICATION)
10A	AT77980	1	LINE	(SUB AT84233, AT161752, (2) R87627 AND AT78971)
10B	AT84233	1	LINE	-

ALTERNATE DIFFERENTIAL RETURN SYSTEM [01D13]

Нет текстового описания
