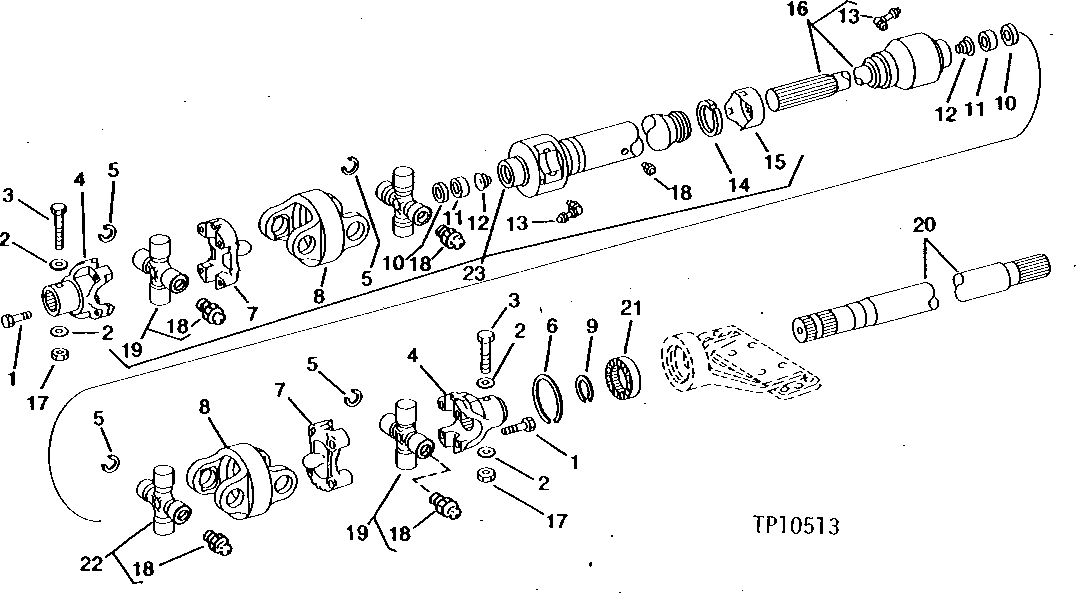

WINCH DRIVE LINE CONSTANT VELOCITY TELESCOPING JOINT (MECHANICS) [03F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3374	8	Cap Screw	(C) HS, SAE 8, 5/16" X 1-1/4", (SUB FOR T30583)
2	R42729	4	Washer	-
3	19H2733	2	Cap Screw	3/8" X 2-3/8"
4	T50377	2	UNIVERSAL JOINT YOKE	(C)
5	T30579	12	SNAP RING	(C) SNAP
6	A3815R	1	Snap Ring	(C)
7	T30575	2	YOKE	(C)
8	T30576	2	UNIVERSAL JOINT YOKE	(C)
9	F2370R	1	SNAP RING	(C)
10	AT29363	2	SEAL	(C)
11	T30578	2	BUSHING	(C)
12	T30577	2	SPRING	(C)
13	AT33957	2	LUBRICATION FITTING	(C) GREASE, 45°
14	T30581	1	ISOLATOR	(C)
15	T30580	1	RETAINER	(C)
16	-	1	Part 16	(C) ( AT49127 USE IF AVAILABLE)
17	14H931	2	Nut	1/8"
18	JD7759	1	Lubrication Fitting	(C) STRAIGHT, 1/8"
19	AT29361	2	CROSS AND BEARING ASSEMBLY	(WITH STANDARD GREASE FITTINGS)
20	T45835	1	SHAFT	AUXILIARY DRIVE COUPLING
21	JD8534	1	Ball Bearing	-
22	AT29362	2	CROSS AND BEARING ASSEMBLY	(WITH STANDARD GREASE FITTINGS)
23	-	1	Part 23	(C) ( AT49126 USE IF AVAILABLE)
..	AT49124	1	UNIVERSAL JOINT WITH SHAFT	TELESCOPING INCLUDES ALL PARTS IDENTIFIED BY (C) ON THIS PAGE (THIS NUMBER WILL CONTAIN EITHER MECHANICS OR DANA UNIVERSAL TELESCOPING JOINT, ALSO SEE PAGE 4025-2)

WINCH DRIVE LINE CONSTANT VELOCITY TELESCOPING JOINT (MECHANICS) [03F09]
