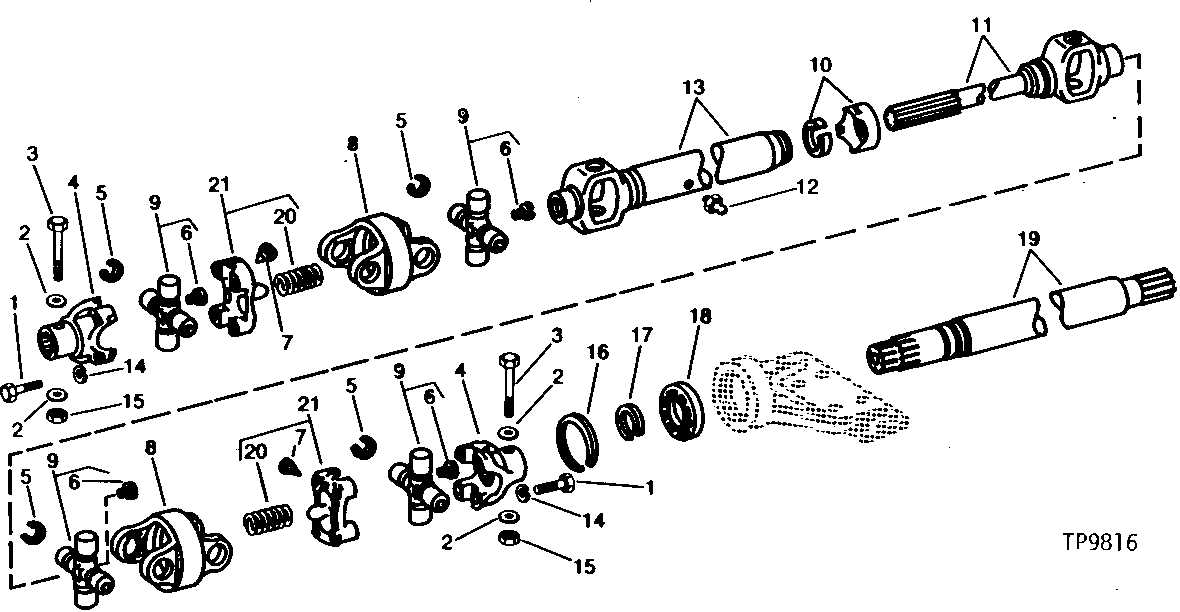

WINCH DRIVE LINE CONSTANT VELOCITY TELESCOPING JOINT (DANA-SPICER) [03F10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3374	8	Cap Screw	(A) 5/16" X 1-1/4"
2	R42729	4	Washer	-
3	19H2733	2	Cap Screw	3/8" X 2-3/8"
4	T56979	2	YOKE	(A)
5	N34377	12	SNAP RING	-
6	AT57867	4	Lubrication Fitting	-
7	AT57868	2	LUBRICATION FITTING	-
8	T56980	1	UNIVERSAL JOINT YOKE	(A)
9	AT54901	4	CROSS AND BEARING ASSEMBLY	(A) SPIDER WITH BEARING
10	AT54898	1	SEAL KIT	(A)
11	AT54902	1	UNIVERSAL JOINT	(A)
12	JD7797	1	Lubrication Fitting	(A) 1/8"
13	AT78733	1	YOKE WITH TUBE	(A) (SUB FOR AT54899)
14	12H303	2	Lock Washer	(A) 5/16"
15	14H931	2	Nut	3/8"
16	A3815R	1	Snap Ring	-
17	F2370R	1	SNAP RING	-
18	JD8534	1	Ball Bearing	-
19	T45835	1	SHAFT	AUXILIARY DRIVE COUPLING
20	T71646	1	SPRING	-
21	AT68670	1	YOKE	(A) (SUB FOR AT54896)
..	AT49124	1	UNIVERSAL JOINT WITH SHAFT	INCLUDES ALL PARTS IDENTIFIED BY (A) ON THIS PAGE (THIS NUMBER WILL CONTAIN EITHER MECHANICS OR DANA UNIVERSAL TELESCOPING JOINT)

WINCH DRIVE LINE CONSTANT VELOCITY TELESCOPING JOINT (DANA-SPICER) [03F10]
