WINCH CONTROL VALVE (SERIAL NO. -500256) [03B13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27218	1	Fitting Plug	-
2	R26448	1	O-Ring	-
3	R31698	1	SPRING	-
4	R46855	1	SPOOL VALVE	-
5	T55449	1	HOUSING	(SUB T70662 IF AVAILABLE)
5	-	1	Part 6	( T70662 USE IF AVAILABLE)
6	15H558	3	Pipe Plug	HEX. CTSK, 1/8"
7	34H285	1	Spring Pin	3/16" X 1-3/8"
8	T47332	1	VALVE SPOOL	(SUB T67153)
8	T67153	1	SPOOL VALVE	-
9	T51287	1	WASHER	-
10	T47334	1	TORSION SPRING	TORSION
11	T151906	1	GASKET	(SUB FOR T47335)
12	-	1	Part 14	( T47333 USE IF AVAILABLE)
13	12H304	3	Lock Washer	3/8"
14	19H2549	3	Cap Screw	3/8" X 1-7/8"
15	T41655	1	GRIP	-
16	AT46045	1	LEVER	WITH PIVOT
17	19H2553	1	Cap Screw	3/8" X 2-5/8"
18	R56464	1	O-Ring	-
19	R27216	1	DRAIN PLUG	-
20	R26287	1	O-Ring	-
21	R26479	5	SHIM	0.76 MM (.030")
22	T44784	1	Spring	-
23	400R	1	Ball	(SUB FOR R26552, THIS APPLICATION)
24	T47331	1	FITTING	-
25	U12547	1	O-Ring	(SUB FOR F3171R)
26	T47329	1	SPRING	-
27	24H1136	1	Washer	11/32" X 11/16" X 0.065"
28	R82133	1	SHIM	0.51 MM (.020") (SUB FOR T47330)
29	R26373	1	Spring	-
30	400R	1	Ball	STEEL
31	R33058	1	NEEDLE ROLLER	-
32	15H275	1	Pipe Plug	1/4", HEX. CTSK., 1/4"
33	24H1302	2	Washer	13/32" X 11/16" X 0.035"
34	19H2676	2	Cap Screw	3/8" X 1"
35	T55450	1	PIN	-
36	U15973	1	O-Ring	-
37	R48450	2	Washer	-
38	24H1682	1	Washer	13/32" X 7/8" X 0.120"
39	R26286	2	O-Ring	-
40	RE56322	1	Tee Fitting	(SUB FOR AT32333) 90°
41	RE56322	1	Tee Fitting	(SUB FOR AT32333) 90°
41	AT37092	1	ELBOW FITTING	90°
42	R26448	1	O-Ring	-
43	R39249	1	Adapter Fitting	-
44	R26287	1	O-Ring	-
45	R36742	1	COUPLING	-
46	AT46044	1	VALVE	(SUB AT78041, T74018, (2) 19H2676, (2) 24H1305, AT84157 AND T41655)
46	AT64118	1	VALVE	(540B SKIDDER) (SUB AT78041, T74018, (2) 19H2676, (2) 24H1305, AT84157 AND T41655)
46	AT64118	1	VALVE	(540B GRAPPLE SKIDDER) (SUB AT78041)
46	AT67641	1	VALVE	(SUB AT78041, T74018, (2) 19H2676, (2) 24H1305, AT84157, T41655 AND AT35601)
46	AT67641	1	VALVE	(SUB AT78041, T74018, (2) 19H2676, (2) 24H1305, AT84157 AND T41655)

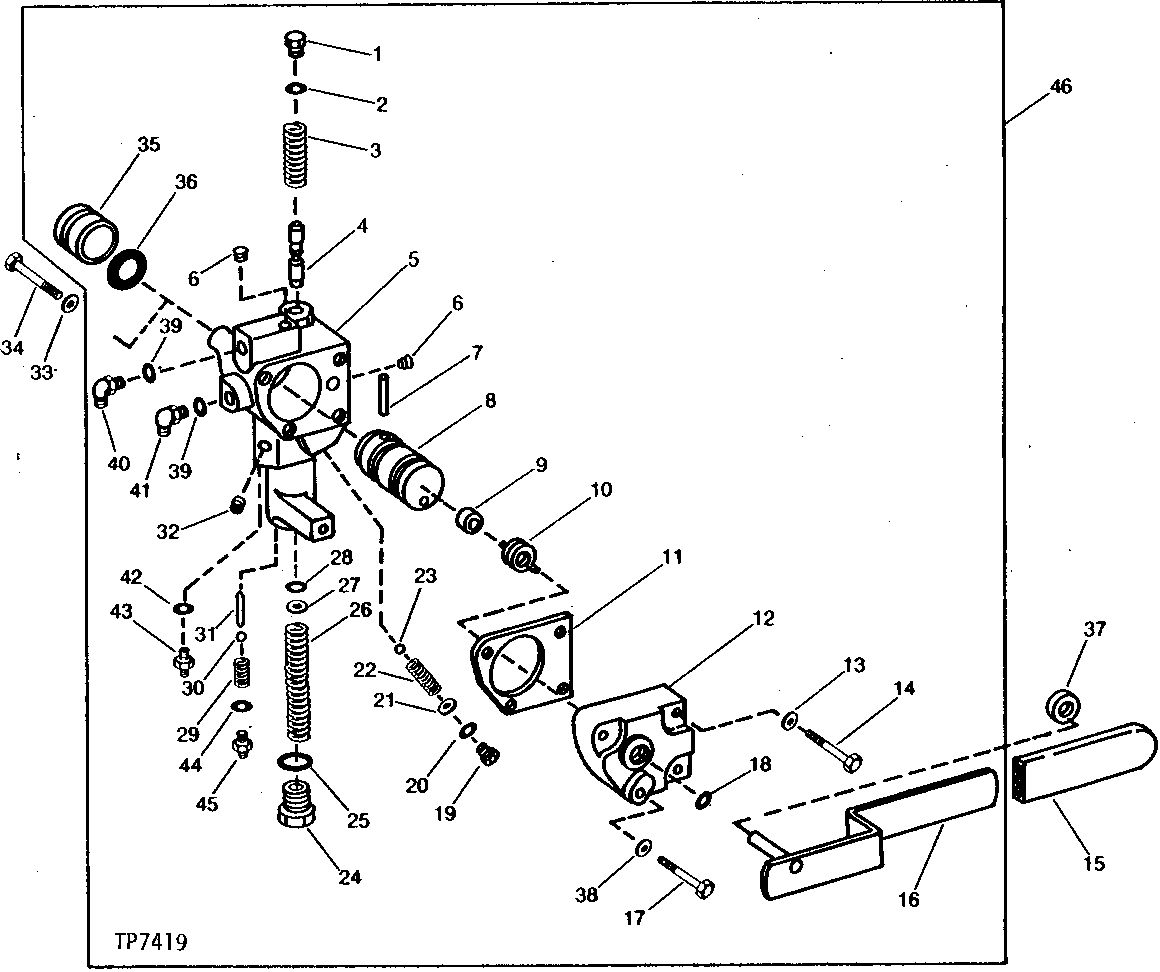

WINCH CONTROL VALVE (SERIAL NO. -500256) [03B13]
