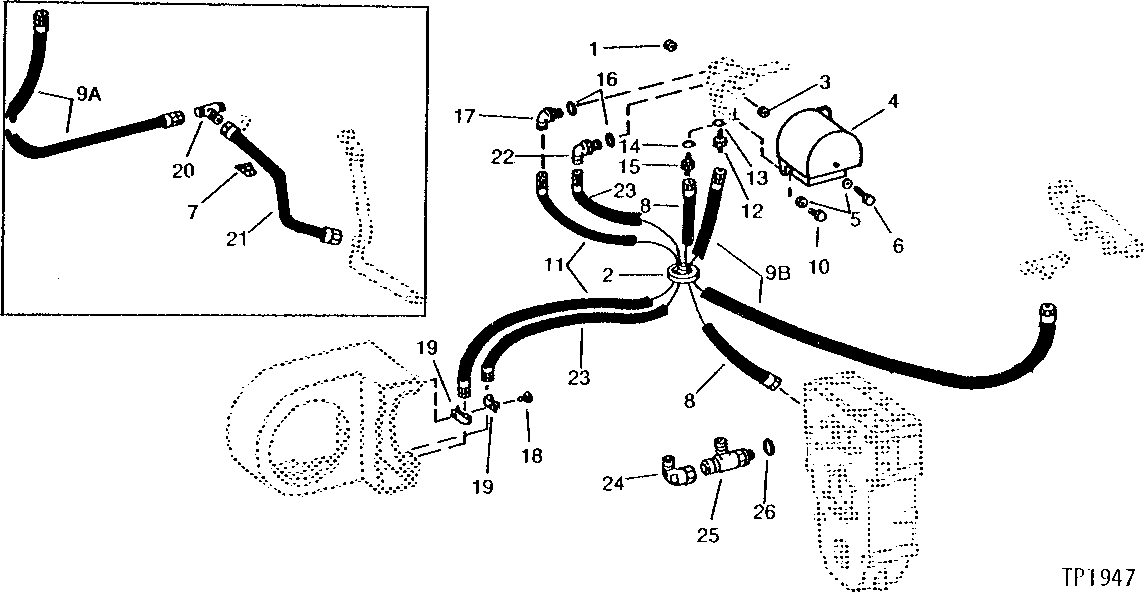

WINCH CONTROL VALVE HYDRAULICS (SERIAL NO. -500231) [03B17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	2	NUT	3/8"
2	T47338	1	Grommet	-
3	24H1682	1	Washer	13/32" X 7/8" X 0.120"
4	T68819	1	SHIELD	(SUB FOR T54313)
5	24H1302	4	Washer	13/32" X 11/16" X 0.035"
6	19H2458	1	Cap Screw	3/8" X 3"
7	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
8	AT46047	1	HYDRAULIC HOSE - FABRICATE	3/4" X 1 016 MM (40") X 3/4"
10	19H1648	2	Cap Screw	3/8" X 3/4"
11	AT39160	1	HYDRAULIC HOSE - FABRICATE	1/2" X 2 794 MM (110") X 1/2"
12	R36742	1	COUPLING	-
13	R26287	1	O-Ring	-
14	R26448	1	O-Ring	-
15	R39249	1	Adapter Fitting	-
16	R26286	1	O-Ring	-
17	RE56322	1	Tee Fitting	(SUB FOR AT32333)
18	19H3239	1	Cap Screw	3/8" X 1-1/4"
19	R46414	2	Clamp	(SUB FOR AH78125, THIS APPLICATION)
20	T27323	1	TEE FITTING	-
21	AT44032	1	HYDRAULIC HOSE - FABRICATE	1/2" X 1 430 MM (56-1/4") X 9/16"
22	RE56322	1	Tee Fitting	(SUB FOR AT32333)
22	AT37092	1	ELBOW FITTING	-
23	AT39160	1	HYDRAULIC HOSE - FABRICATE	1/2" X 2 794 MM (110") X 1/2"
23	AT61195	1	HYDRAULIC HOSE - FABRICATE	9/16" X 2 794 MM (110") X 9/16"
24	AT38127	1	Elbow Fitting	-
25	AT26327	1	Tee Fitting	-
26	R26375	1	O-Ring	-
9A	AT46046	1	HYDRAULIC HOSE - FABRICATE	1/2" X 2 210 MM (87") X 9/16"
9A	AR36561	1	HYDRAULIC HOSE	1/2" X 914 MM (36") X 1/2"
9B	AT73332	1	HYDRAULIC HOSE - FABRICATE	1/2" X 1 657 MM (65-1/4") X 1/2", (SUB FOR AT45499)
