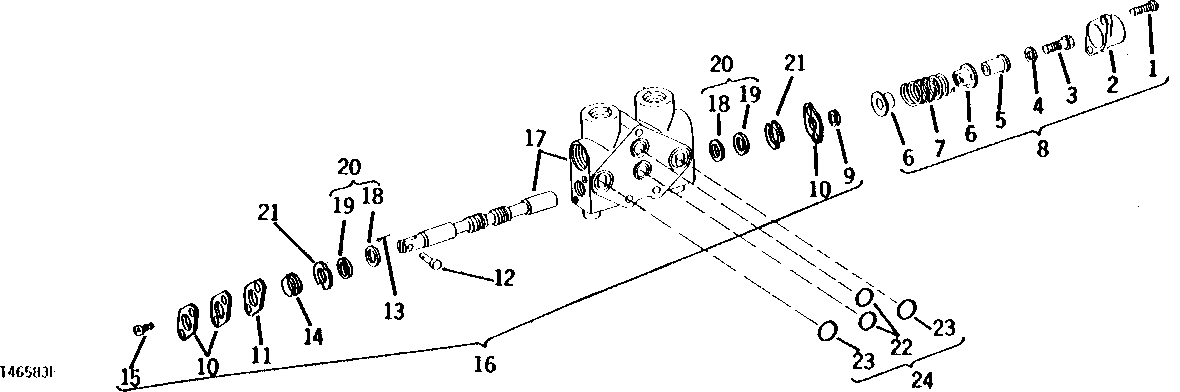

SELECTIVE CONTROL VALVE (BOOM SECTION-HEAVY DUTY RETAINER) [03E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T35975	2	SCREW	-
2	-	1	Part 2	(SUB AT53847)
3	21H1375	1	SCREW	5/16" X 3/4"
4	-	1	Part 4	(SUB AT53847)
5	-	1	Part 5	(SUB AT53847)
6	-	2	Part 6	(SUB AT53847)
7	-	1	Part 7	(SUB AT53847)
8	AT53847	1	STOP	-
9	-	1	Part 9	(SUB AT135683)
10	T104784	3	PLATE	-
11	T113012	1	PLATE	-
12	-	1	Part 12	(SUB AT135683)
13	11M7009	1	Cotter Pin	-
14	-	1	Part 14	(SUB AT53850)
15	-	2	Part 15	(SUB AT135683)
16	AT135683	1	Retainer	(SUB FOR AT53850)
17	-	1	Part 17	4-WAY, (SUB AT53860)
18	T104783	2	O-Ring	(K) (SUB FOR U11296)
19	T104785	2	Back-Up Ring	(K)
20	-	1	Part 20	(K) SPOOL SEAL (WHEN AT53858 IS NO LONGER AVAILABLE,SUB (2) T57246 AND (2) T104785)
21	-	2	Part 21	(SUB AT135683)
22	T75984	2	O-Ring	(K1) (SUB FOR T35990)
23	T30423	2	O-RING	(K1)
24	-	1	Part 24	(K1) (SUB AT160682)
..	AT140082	1	VALVE	(SUB FOR AT53860) (ALSO ORDER AT160682) (BOOM)
..	-	1	Part 26	(SUB FOR AT49993) (SUB AT114142)
..	AT61348	1	VALVE	(SUB AT114142)
..	AT62366	1	VALVE	(SUB AT114142)
..	-	1	Part 29	CONTROL, THREE SECTION ( AT114142 NOT AVAILABLE) (ORDER COMPONENT PARTS) (SUB FOR AT68644)

SELECTIVE CONTROL VALVE (BOOM SECTION-HEAVY DUTY RETAINER) [03E14]
