INPUT DRIVE SHAFT AND U-JOINTS DOUBLE UNIVERSAL TELESCOPING JOINT (ROCKWELL STANDARD) [01C04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T51443	1	UNIVERSAL JOINT YOKE	-
2	JD7842	2	Lubrication Fitting	1/4"
3	AT59126	2	KIT	CENTER PARTS REPAIR, (SUB FOR AT23096)
3	AT74268	2	CROSS AND BEARING ASSEMBLY	CENTER PARTS REPAIR
4	T25242	1	WASHER	-
5	-	1	Part 6	( T49027 NO LONGER AVAILABLE, SUB AT114339)
6	T77706	8	Washer	(SUB FOR T73908 AND R37419)
7	T25247	8	SCREW	(SUB T82430)
7	T82430	8	SCREW	(SUB FOR T66881)
7	T82430	8	SCREW	(SUB FOR T76091)
8	T25245	1	WASHER	(SUB T61641, THIS APPLICATION)
9	T25244	2	WASHER	(SUB T61641, THIS APPLICATION)
10	T25243	1	CAP	(SUB T61641, THIS APPLICATION)
11	-	1	Part 14	( AT50955 NO LONGER AVAILABLE, SUB AT114339)
12	30H17	1	Plug	(USE WITH AT50955) (SUB FOR T25246)
13	T61641	1	Seal	(SUB T29903, T25244 AND T25243, THIS APPLICATION)
14	T29903	1	BACK-UP RING	(SUB FOR T61641, ALSO ORDER T25243 AND T25244) (USE WITH AT74271)
15	T77706	12	Washer	(SUB FOR T73908 AND R37419)
16	T66730	8	SCREW	(SUB FOR R37418)
17	JD7759	1	Lubrication Fitting	1/8"
18	T45169	4	BOLT	(SUB T66731)
18	T66731	4	SCREW	-
19	T25244	1	WASHER	(SUB FOR T61641, ALSO ORDER T29903 AND T25243, THIS APPLICATION)
20	T25243	1	CAP	(SUB FOR T61641, ALSO ORDER T29903 AND T25244, THIS APPLICATION)
21	AT50954	1	UNIVERSAL JOINT	(SUB AT114339)
21	AT63315	1	UNIVERSAL JOINT	(SUB AT114339)
21	AT114339	1	DRIVE SHAFT	(SUB FOR AT74271)

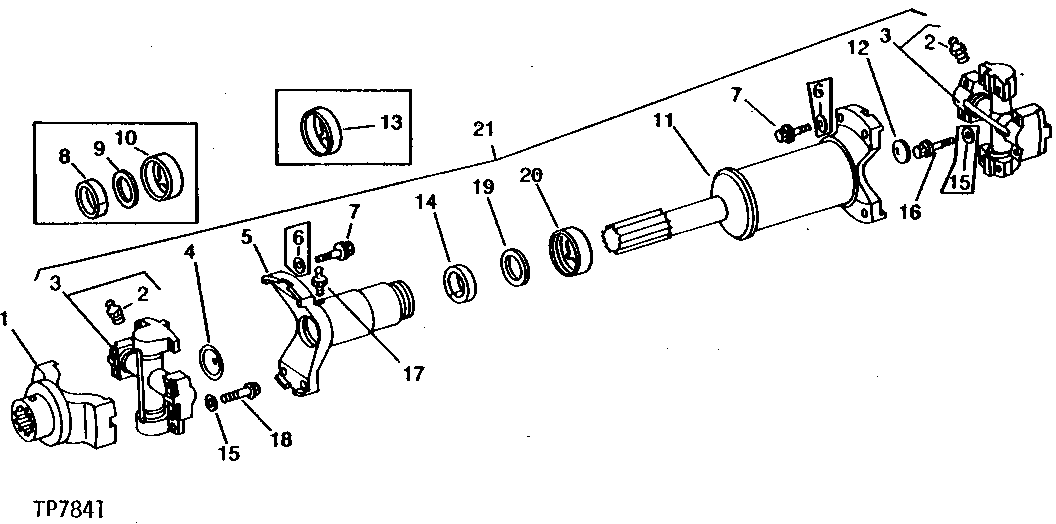

INPUT DRIVE SHAFT AND U-JOINTS DOUBLE UNIVERSAL TELESCOPING JOINT (ROCKWELL STANDARD) [01C04]
