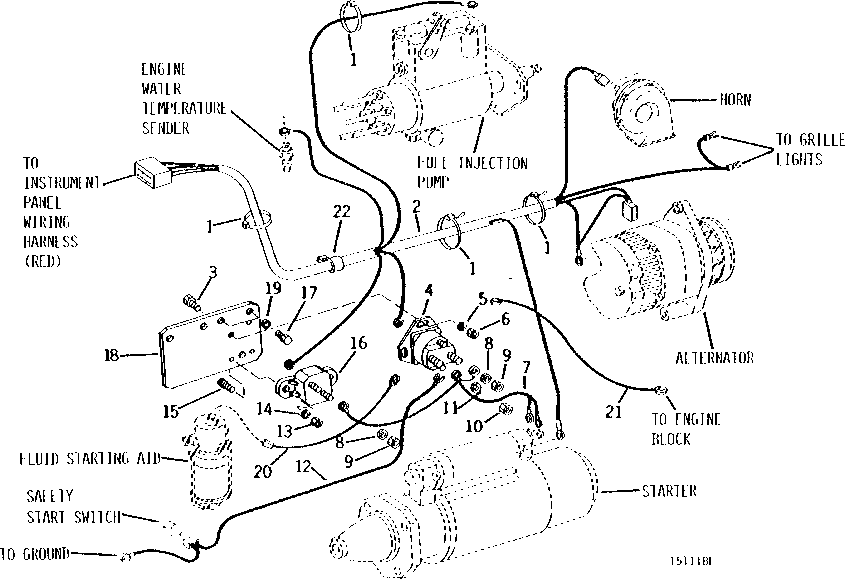

ENGINE WIRING HARNESS (SERIAL NO. 257646-267650) [02E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	10	Tie Band	-
2	AT54633	1	WIRING HARNESS	ENGINE MAIN WIRING (SUB AT56824 HARNESS AND AT56827 LEAD)
3	19H1948	2	Cap Screw	1/4" X 3/4"
4	AT68973	1	Relay	STARTER SOLENOID, (SUB FOR AT40955) (SUB RE38391)
4	RE38391	1	Starter Relay	-
5	12H302	2	Lock Washer	1/4"
6	14H786	2	Nut	1/4"
7	AT54639	1	WIRING LEAD	STARTER TO STARTER RELAY (SUB AT56825 LEAD AND AT56826 LEAD)
8	12H295	4	Lock Washer	0.190"
9	14H631	4	Nut	0.190"
10	14H785	2	Nut	5/16"
11	12H291	2	Lock Washer	5/16"
12	AT66527	1	WIRING LEAD	STARTER SAFETY SWITCH, (SUB FOR AT54640)
13	14H778	2	Nut	0.190"
14	12H246	2	LOCK WASHER	0.190"
15	21H1312	2	SCREW	0.190" X 1"
16	AT54634	1	CIRCUIT BREAKER	-
17	19H2284	2	Cap Screw	3/8" X 7/8"
18	T56749	1	BRACKET	STARTER RELAY (SUB T125683 AND T78974)
19	12H304	2	Lock Washer	3/8"
20	AT54643	1	WIRING LEAD	FLUID STARTING AID
21	AT43827	1	WIRING LEAD	STARTER RELAY GROUND
22	R73384	1	Clamp	(SUB FOR T24494) COATED

ENGINE WIRING HARNESS (SERIAL NO. 257646-267650) [02E19]
