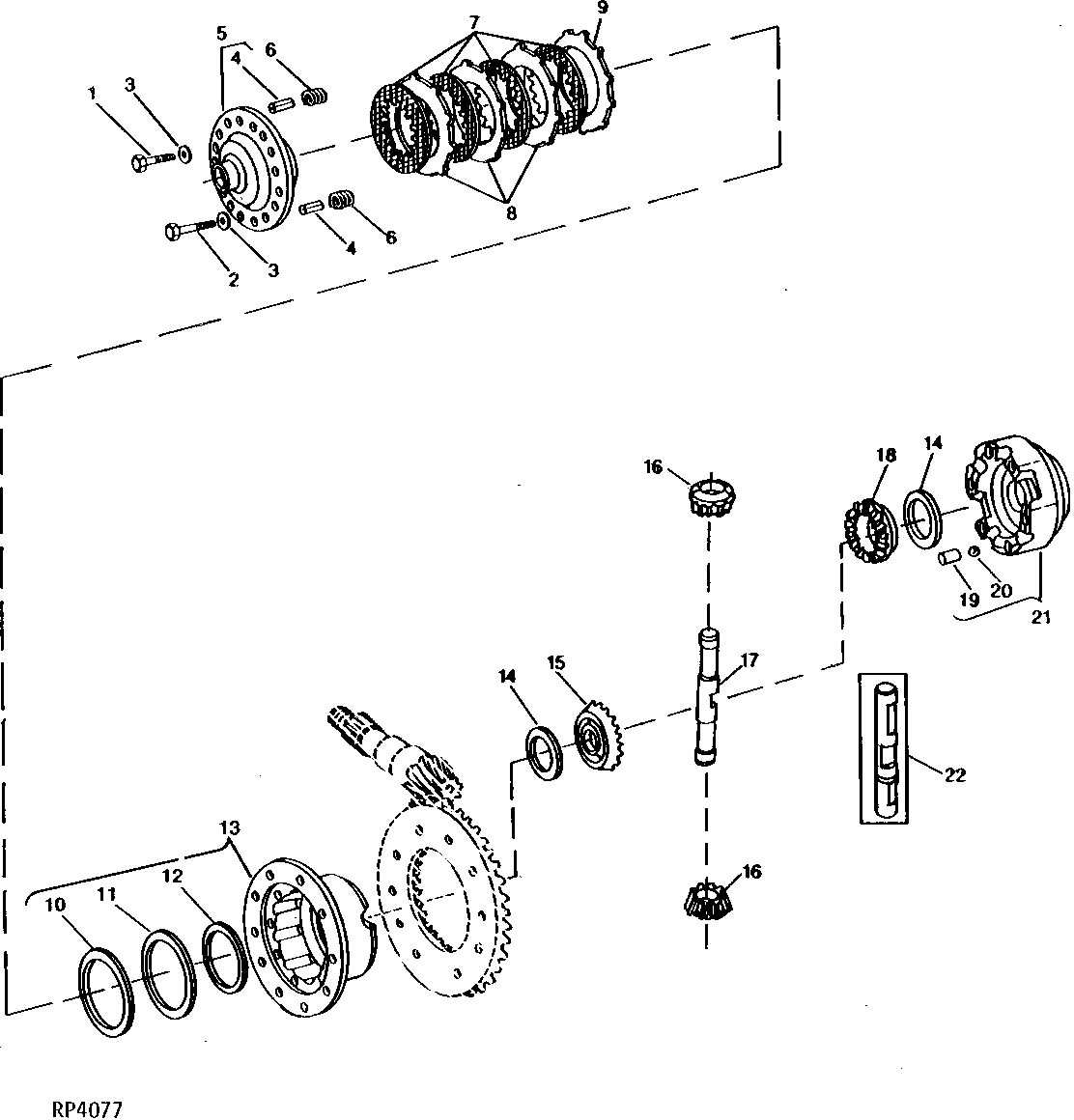

DIFFERENTIAL HOUSING (SERIAL NO. -338002) [01B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64523	8	BOLT	-
1	R43866	8	CAP SCREW	(SUB R64523 AND R64525)
2	R64524	2	Cap Screw	(SUB FOR R57737)
3	R64525	10	Thrust Washer	-
4	R56504	2	Spring Pin	-
5	AR78834	1	COVER	(MARKED R63776 OR R48608) (SUB FOR AR51830) (SUB R78157 AND (2) R56504)
6	R41770	2	Spring	-
7	RE239643	4	Disk With Inner Spline	(SUB FOR RE12518)
8	R78155	3	Clutch Plate	(SUB FOR R34520)
9	R78156	1	Clutch Plate	(SUB FOR R34517)
10	R60122	1	Piston	-
11	R69011	1	Washer	-
12	R69012	1	Packing	-
13	AR95648	1	HOUSING	(MARKED R73003)
14	R77145	2	WASHER	(SUB FOR R65741)
15	R74869	1	Bevel Gear	(SUB FOR R60008) (ALSO ORDER (2) R63788, (4) R42443 AND R77145)
16	R42443	2	PINION	(SUB (2) R63788 AND (4) R42443, THIS APPLICATION)
17	R68347	1	SHAFT	(SUB (2) R63788 AND (4) R42443, THIS APPLICATION)
18	R74868	1	Bevel Gear	(SUB FOR R60007) (ALSO ORDER (2) R63788, (4) R42443 AND R77145)
19	R32186	1	DOWEL PIN	(USE WITH R41902 SINGLE PINION SHAFT)
19	R32186	1	DOWEL PIN	(USE WITH R68347 SINGLE PINION SHAFT)
20	H871R	1	Ball	-
20	400R	1	Ball	-
21	AR77084	1	HOUSING	(MARKED R61994) (SUB AR96863, RE15628 AND AR95648)
22	R41902	1	PINION SHAFT	(SUB (2) R63788 AND (4) R42443, THIS APPLICATION)
22	R63788	2	Shaft	(ALSO ORDER (4) R42443)
