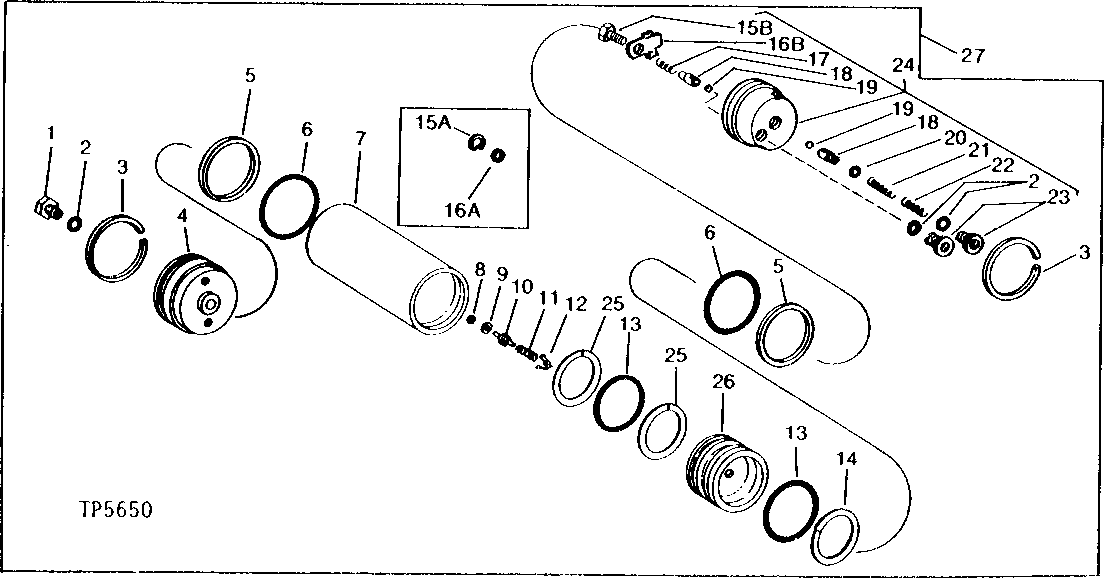

BRAKE ACCUMULATOR (MODEL NO. 23HA1) [02C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	-
2	R26286	3	O-Ring	-
3	U10136	2	SNAP RING	(SUB R78101)
3	R78101	2	SNAP RING	-
4	R48957	1	END	-
5	R78823	2	BACK-UP RING	(SUB FOR R35684, THIS APPLICATION)
6	R86192	2	O-RING	(SUB FOR U12331)
7	R46986	1	HYDRAULIC CYLINDER BARREL	(SUB R77866)
7	R77866	1	HYDRAULIC CYLINDER BARREL	-
8	R60038	1	Packing	-
9	R47087	1	WASHER	-
10	R47085	1	VALVE	-
11	R47086	1	SPRING	-
12	R41877	1	GUIDE	-
13	A4728R	2	O-Ring	-
14	R27649	1	BACK-UP RING	-
17	R44256	1	SPRING	(USE WITH AR67781)
18	R44254	2	GUIDE	-
19	400R	2	Ball	-
20	R31632	2	SHIM	-
21	R47606	1	Spring	-
22	R47605	1	SPRING	-
23	R47607	2	Pipe Plug	-
24	AR93259	1	CAP	(SUB FOR AR67781)
25	L29015	2	BACK-UP RING	-
26	R57103	1	PISTON	-
27	RE11970	1	ACCUMULATOR	(SUB RE29336) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)
27	AR71296	1	ACCUMULATOR	(ALSO ORDER R27094 AND R26286, THIS APPLICATION) (SUB RE29336) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)
15A	R33282	1	Snap Ring	-
15B	R74022	1	RETAINER	(USE WITH AR93259)
16A	R48013	1	Washer	(USE WITH AR67781)
16B	R75866	1	LOCK PLATE	(USE WITH AR93259)

BRAKE ACCUMULATOR (MODEL NO. 23HA1) [02C23]
