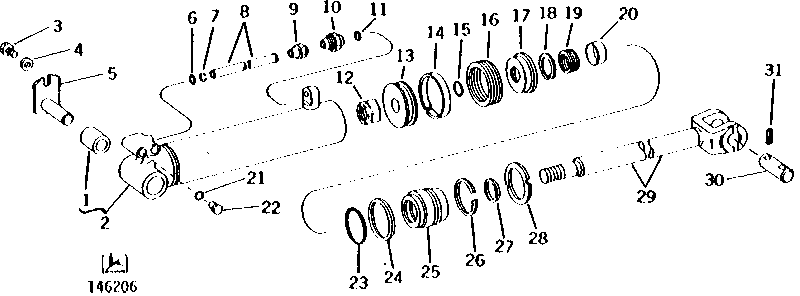

BLADE LIFT CYLINDER (SERIAL NO. -266132) [03C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42737	2	BUSHING	(C)
2	AT49009	1	HYDRAULIC CYLINDER BARREL	(C)
3	19H1895	1	CAP SCREW	1/2" X 3/4"
4	L139T	1	WASHER	9/16" X 1-1/2" X .188"
5	AT45335	1	PIN FASTENER	PIVOT
6	R394R	1	O-Ring	(C)
7	N132177	1	Back-Up Ring	(C)
8	T44971	1	TUBE	(C)
9	R27274	1	FITTING PLUG	(C)
10	R39249	1	Adapter Fitting	(C)
11	R26448	1	O-Ring	(C)
12	U13572	1	LOCK NUT	(C)
13	U17349	1	PISTON	(C)
14	U17217	1	WEAR RING	(C) (B)
15	R56461	1	O-Ring	(C) (B) (SUB FOR A3606R, THIS APPLICATION)
16	T38193	1	PACKING	(C) (B) (SUB FOR R72827)
17	U17345	1	PISTON	(C)
18	N51168	1	Snap Ring	(C)
19	R76804	1	SEAL	(C) (B) (SUB FOR T37123)
20	U41825	1	WEAR RING	(C) (B)
21	R26375	2	O-Ring	(C)
22	T22867	2	Drain Plug	(C) (SUB FOR R39112, THIS APPLICATION)
23	U10776	1	O-Ring	(C) (B)
24	R78993	1	BACK-UP RING	(C) (B) (SUB FOR U10777, THIS APPLICATION)
25	U42078	1	HYDR. CYLINDER ROD GUIDE	(C)
26	U10775	1	SNAP RING	(C)
27	U10296	1	SEAL	(C) (B)
28	U10769	1	NUT	(C)
29	AU13853	1	HYDRAULIC CYLINDER ROD	(C)
30	T38674	1	PIN FASTENER	-
31	34H337	2	Spring Pin	5/16" X 2-1/2"
..	AT49008	1	CYLINDER	(SUB AT55896, AT72491, R26375 AND R26448)
..	AR105432	1	HYDRAULIC CYLINDER KIT	(SUB FOR AU41735 AND AR96519)
