22 Engine 3029HPY105-DZ121277

22 Engine 3029HPY105-DZ121277

22 Engine 3029HPY105-DZ121277

22 Engine 3029HPY105-DZ121277

22 Engine 3029HPY105-DZ121277

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

22 Engine 3029HPY105-DZ121277

Нет текстового описания

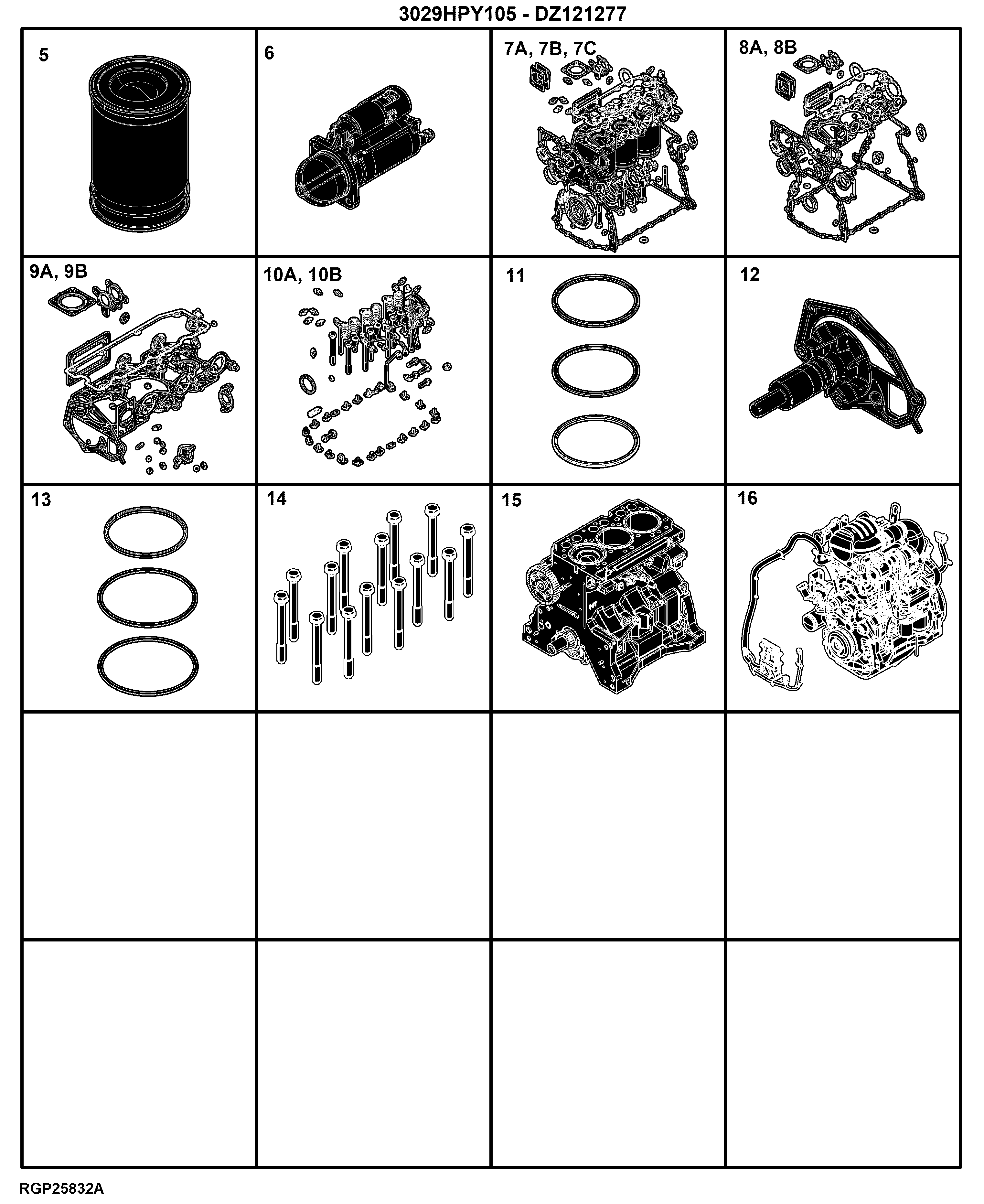

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	656C Turbocharger	-
-	-	1	67J4 Engine Sensors	-
-	-	1	7702 Timing Gear Train	-
-	-	1	84QY Engine Wiring Harness	-
-	-	1	8966 Exhaust Gas Recirculation	-
-	-	1	91GQ Exhaust Pipe	-
-	-	1	98AW Lift Straps	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Bearing Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Cylinder Head Bolt Kit	-
-	-	1	9901 Cylinder Head Removal Gasket Kit (1/2)	-
-	-	1	9901 Cylinder Head Removal Gasket Kit (2/2)	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	63HJ Low Pressure Fuel Lines	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Hardware Kit (1/2)	-
-	-	1	9901 Hardware Kit (2/2)	-
-	-	1	9901 Nozzle Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Pump Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Starter Motor Kit	-

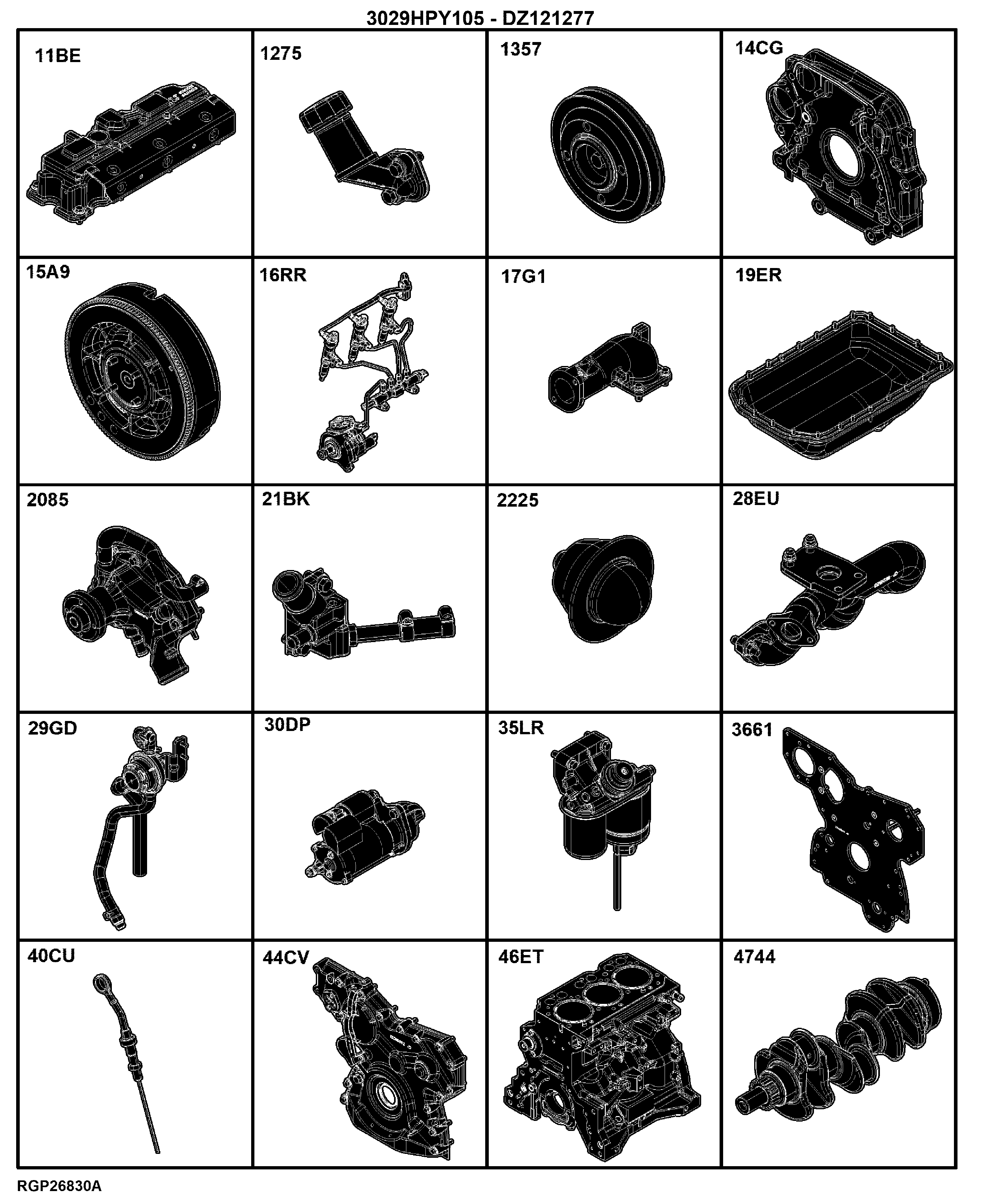

-	-	1	3661 Front Plate	-
-	-	1	1275 Oil Filler Cover	-
-	-	1	1357 Crankshaft Pulley	-
-	-	1	14CG Flywheel Housing	-
-	-	1	15A9 Flywheel	-
-	-	1	16RR Fuel Injection System	-
-	-	1	17G1 Air Intake Manifold	-
-	-	1	19ER Oil Pan	-
-	-	1	2085 Water Pump	-
-	-	1	21BK Thermostat Cover	-
-	-	1	2225 Thermostat	-
-	-	1	28EU Exhaust Manifold	-
-	-	1	29GD Ventilating System	-
-	-	1	30DP Starter Motor	-
-	-	1	35LR Fuel Filter	-
-	-	1	11BE Valve Cover	-
-	-	1	40CU Engine Oil Dipstick	-
-	-	1	44CV Timing Gear Cover	-
-	-	1	46ET Cylinder Block	-
-	-	1	4744 Crankshaft and Bearings	-

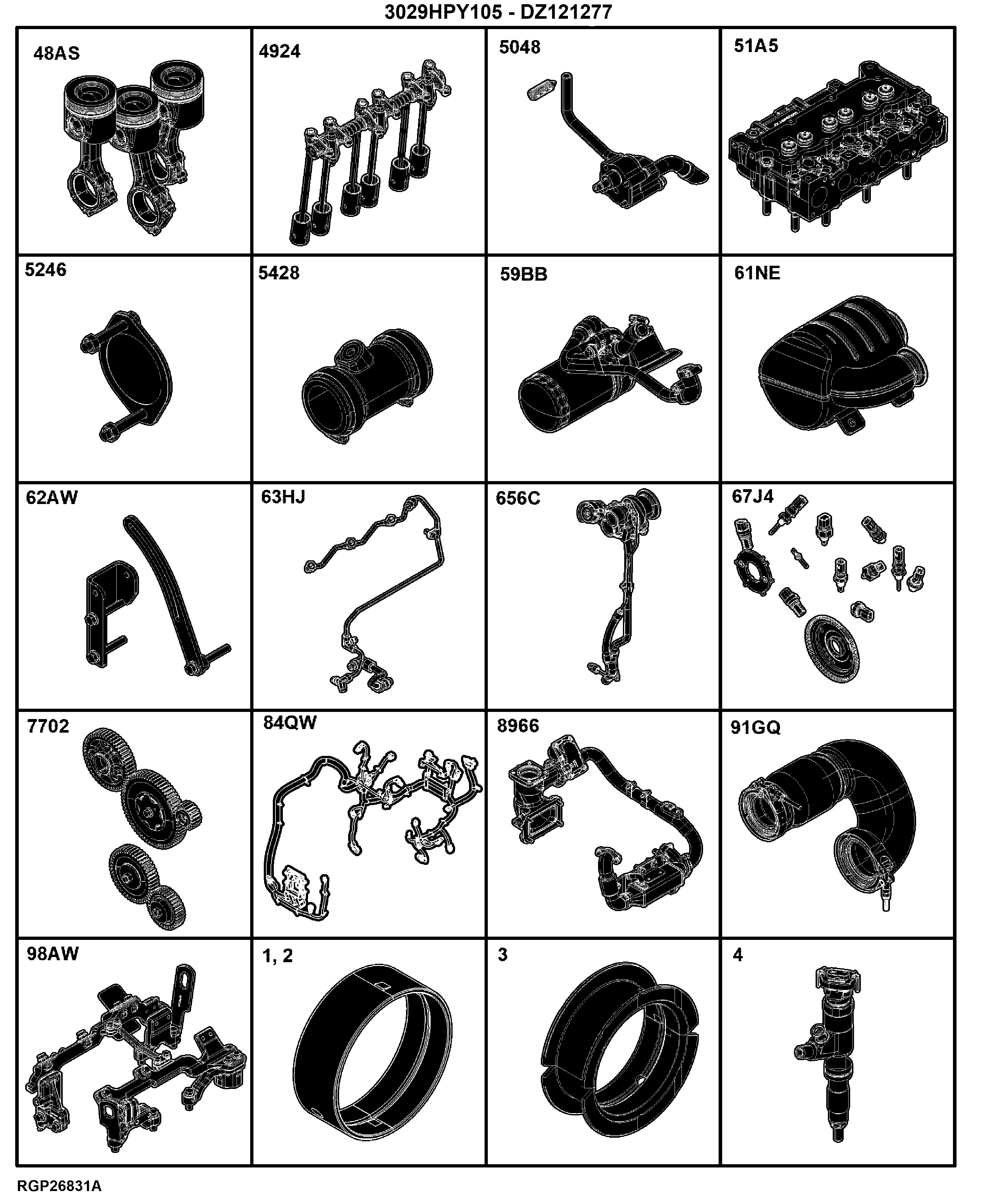

-	-	1	48AS Connecting Rods and Pistons	-
-	-	1	4924 Valve Actuating Mechanism	-
-	-	1	5048 Engine Oil Pump	-
-	-	1	51A5 Cylinder Head with Valves	-
-	-	1	5246 Gear Driven Auxiliary Drive	-
-	-	1	5428 Air Intake Turbo	-
-	-	1	59BB Engine Oil Cooler and Oil Filter	-
-	-	1	61NE Aftertreatment, Exhaust System	-
-	-	1	62AW Alternator Mountings	-
