Front Support, Battery Tray And Grille

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	2	Screw	M8 X 16
2	14M7298	2	Flange Nut	M8
3	RE56746	1	Tie Bar	RH
4	RE56745	1	Tie Bar	LH
5	19M7784	4	Screw	M10 X 20
6	37H29	2	Screw	5/16" X 5/8"
7	14M7303	2	Flange Nut	M6
8	R126276	1	Support	-
9	RE45701	1	Latch	-
10	19M7318	2	Screw	M6 X 30
11	R135713	1	Rod	-
12	A3096R	1	Compression Spring	-
13	R52646	1	Washer	-
14	R105113	2	Pad	-
15	RE65579	1	Label	(SUB FOR RE65218, THIS APPLIC OR RE63995ATION, RE67664)
16	RE63224	1	Grille	ASSY (SUB FOR RE40819, THIS APPLICATION)
17	21M7246	2	Screw	M6 X 16
18	R105289	1	Deflector	-
19	RE66040	1	Screen	RH ASSY (SUB FOR RE40812)
19	RE66041	1	Screen	LH ASSY (SUB FOR RE40813)
20	14H1039	2	Nut	5/8"
21	RE58315	1	Support	(W/O CAB)
22	R141683	2	Rod	(SUB FOR R119390)
23	19H3169	1	Cap Screw	5/8" X 4-1/4"
24	R226459	1	Front Axle Support	(SUB FOR R124415, R126457 OR R204379 ) (SUB FOR R137676, THIS APPLICATION)
25	19H3309	1	Cap Screw	5/8" X 7-1/4"
26	19H2358	2	Cap Screw	9/16" X 2-1/4"
27	T26929	2	Bushing	-
28	RE63225	1	Grille	-
29	R121315	8	Rivet	-
30	19M7784	2	Screw	M10 X 20
31	-	1	Part 32	NSEP (ORDER RE63224)
32	RE46021	1	Frame	NLA (ORDER RE63224)
33	37M7240	12	Screw	-

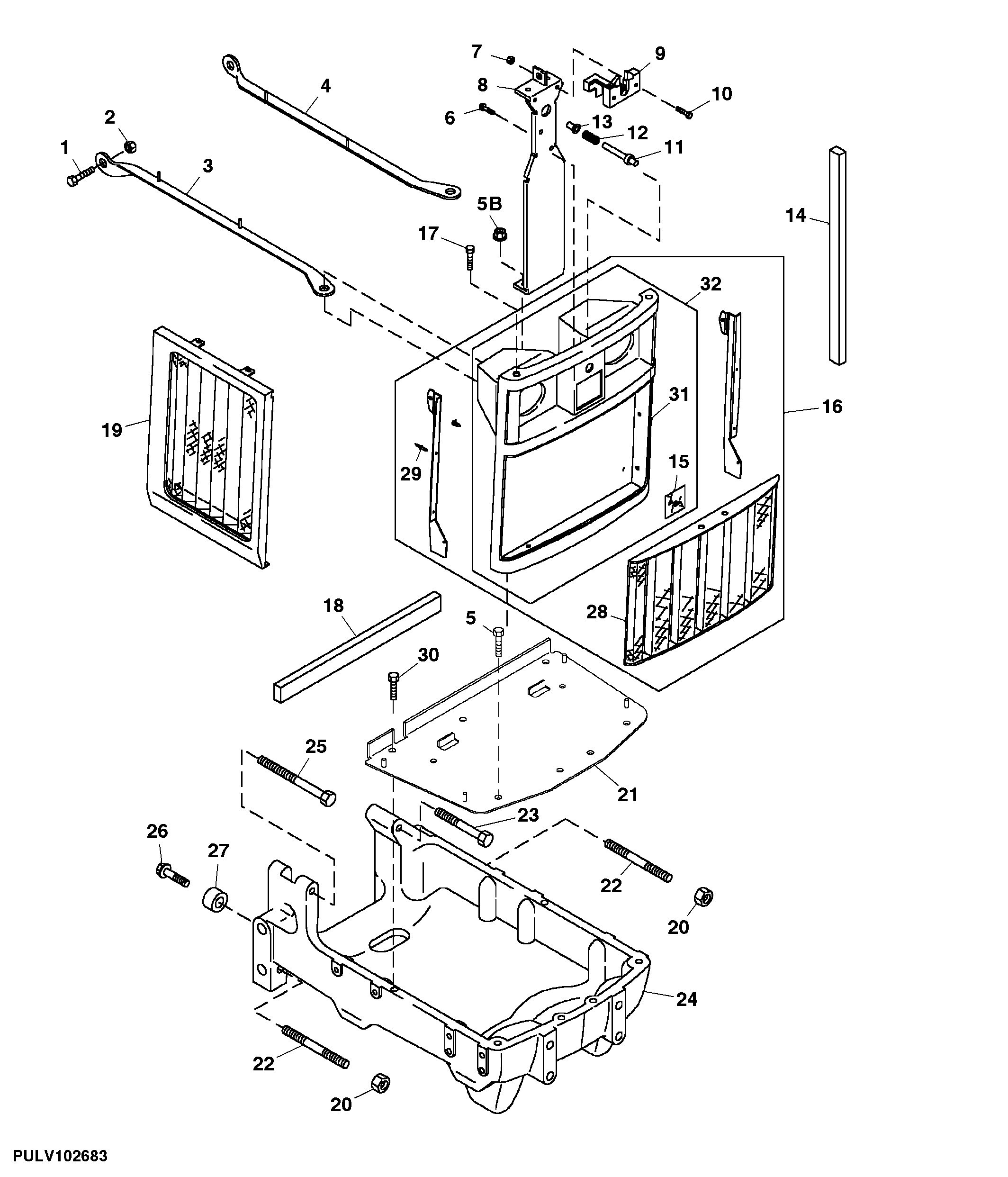

Front Support, Battery Tray And Grille
