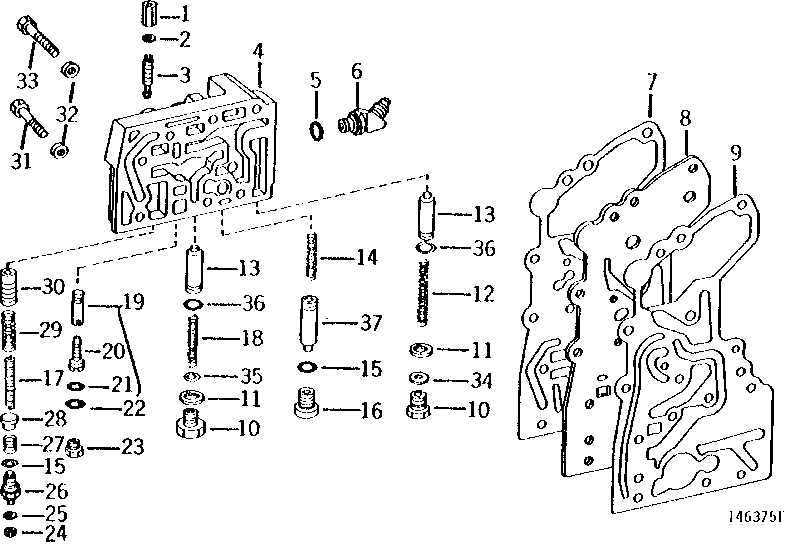

TRANSMISSION CLUTCH REGULATING VALVE [01G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F2847R	1	NUT	-
2	F2846R	1	WASHER	-
3	R39587	1	SET SCREW	-
4	-	1	Part 4	(MARKED R41404) (WHEN AR44030 IS NO LONGER AVAILABLE SUB R41404 AND 15H624)
4	R41404	1	HOUSING	-
4	15H561	1	Pipe Plug	1/2", (NOT ILLUSTRATED)
5	U12547	1	O-Ring	(SUB FOR F3171R)
6	AR47803	1	ELBOW FITTING	60°, (SUB FOR AR32852)
7	R98926	1	GASKET	(SUB FOR R33178, R46816 AND R51573)
8	R33164	1	PLATE	-
9	R46815	1	GASKET	(SUB FOR R33177)
10	R52589	2	FITTING PLUG	(SUB FOR R33163)
11	R1742R	2	WASHER	-
12	R39808	1	SPRING	-
13	R33162	2	VALVE	(SUB R57559 AND R33259)
13	R57559	2	VALVE	-
14	R28914	1	SPRING	-
15	R26375	2	O-Ring	-
16	R33138	1	Fitting	-
17	R33173	1	Spring	WELLAND SERIAL NO. ( 40227- )
18	R41850	1	SPRING	-
19	-	1	Part 22	(SUB FOR T24533) (WHEN AR47611 IS LONGER AVAILABLE SUB R45573, R10093 AND R34028)
19	R45573	1	ORIFICE	(DOES NOT INCLUDE BOLT AND O-RING)
20	R34028	1	Bolt	-
21	R10093	1	O-Ring	-
22	R26286	1	O-Ring	-
23	R27094	1	Drain Plug	-
24	14H631	1	Nut	0.190"
25	24H1283	1	Washer	7/32" X 1/2" X 0.049"
26	AR40795	1	TOUCH SWITCH	-
27	R41147	1	Spring	WELLAND SERIAL NO. ( - 40226)
27	R46426	1	SPRING	WELLAND SERIAL NO. ( 40227- )
28	R41148	1	GUIDE	-
29	R42057	1	Spring	-
30	R57560	1	VALVE	(SUB FOR R49198) (ALSO ORDER R33259)
31	19H2055	5	CAP SCREW	7/16" X 2-1/4"
32	12H293	7	Lock Washer	7/16"
33	19H3197	2	CAP SCREW	7/16" X 4"
34	R33521	1	Shim	.762 MM (.030")
35	R33521	1	Shim	.762 MM (.030")
36	R33259	2	O-Ring	-
37	R57559	1	VALVE	(SUB FOR R33162)

TRANSMISSION CLUTCH REGULATING VALVE [01G11]

Нет текстового описания
