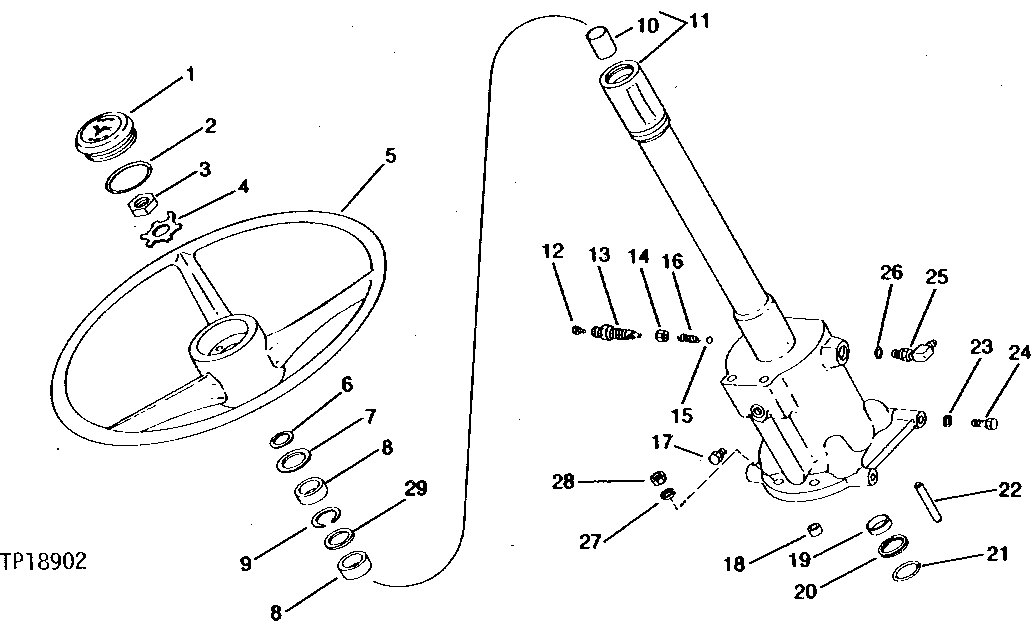

STEERING VALVE CYLINDER ASSEMBLY [01I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	(SUB FOR R34324, R45792, R47998 OR AL118173)
2	B3690R	1	O-Ring	-
3	14H904	1	Nut	3/4"
4	R71650	1	LOCK WASHER	(SUB FOR T17148, THIS APPLICATION)
5	AR26625	1	STEERING WHEEL	-
6	B169R	1	SNAP RING	-
7	24H1659	1	Washer	29/32" X 1-5/8" X 0.120"
8	R32730	2	SEAL	(A) (SUB FOR AR34172, THIS APPLICATION)
9	R26933	1	SNAP RING	-
10	R27320	1	BUSHING	-
11	AR32700	1	CYLINDER	WELLAND SERIAL NO. ( - 40267) (MARKED R34118) (SUB FOR AR40006)
11	AR47290	1	CYLINDER	WELLAND SERIAL NO. ( 40268- ) (MARKED R45297, R44846 OR R73816) (SUB FOR AR47289) (MARKED R45297)
12	21H1335	1	Screw	0.190" X 5/16"
13	R27299	1	SCREW	-
14	R27453	1	Nut	-
15	400R	1	Ball	-
16	R26373	1	Spring	-
17	15H558	1	Pipe Plug	1/8"
18	AR67783	1	O-RING KIT	(A) (SUB FOR R41708 AND AR42009)
19	R27087	1	WASHER	-
20	R26441	1	BACK-UP RING	(A)
21	A3606R	1	O-RING	(A)
22	R32186	1	DOWEL PIN	-
23	12H304	4	Lock Washer	3/8"
24	19H3239	4	Cap Screw	3/8" X 1-1/4"
25	AT35120	1	Elbow Fitting	( -XXXXXX) (SUB FOR AT32337)
25	AT35121	1	Elbow Fitting	(C) (XXXXXX- )
26	R26448	1	O-Ring	(C)
27	12H293	2	Lock Washer	WELLAND SERIAL NO. ( 40268- ) 7/16"
28	14H813	2	Nut	WELLAND SERIAL NO. ( 40268- ) 7/16"
29	R32731	1	WASHER	-
..	AR39585	1	KIT	OVERHAUL STEERING PISTON CYLINDER AND VALVE
..	AT35124	1	KIT	OIL LINE

STEERING VALVE CYLINDER ASSEMBLY [01I23]
