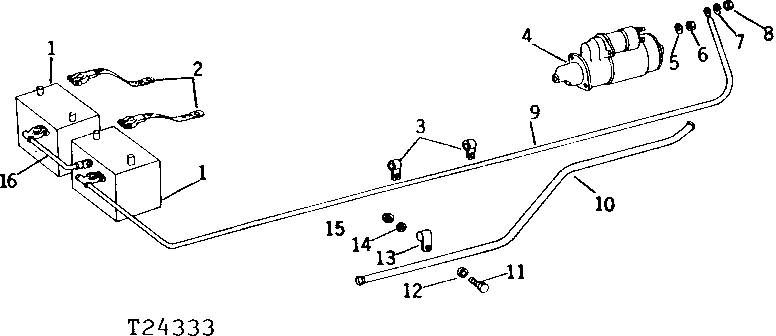

STARTING MOTOR, BATTERIES AND CABLES [02I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT29160	2	DRY CHARGED BATTERY	12 VOLT, 580 CRANKING AMPS AT 0°F, 180 MINUTE RESERVE CAPACITY AT 25 AMPS
1	AT29159	2	DRY CHARGED BATTERY	12 VOLT, 475 COLD CRANKING AMPS AT 0°F 150 MINUTE RESERVE CAPACITY AT 25 AMPS
2	AT26691	2	GROUND CABLE	-
3	T13814	2	Clamp	-
4	-	1	Part 5	(DELCO-REMY NO. 1998367) (SUB FOR AT25619, DELCO-REMY NO. 1107863 AND 1107871, 750 AMP) (SUB FOR AR66424, DELCO-REMY NO. 1109251, 900 AMP) (SUB FOR RE19187, DELCO-REMY NO. 1998367) (SUB FOR RE42730) (SUB RE62916)
5	T19603	1	LOCK WASHER	-
6	14H605	1	Nut	0.164"
7	12H304	1	Lock Washer	3/8"
8	14H732	1	Nut	3/8"
9	-	1	Part 11	WELLAND SERIAL NO. ( 40281- ) (BATTERY TO STARTING MOTOR) ( AT34677 USE IF AVAILABLE)
9	AT34674	1	BATTERY CABLE	(BATTERY TO STARTING MOTOR)
9	-	1	Part 10	WELLAND SERIAL NO. ( - 40280) ( AT26692 NO LONGER AVAILABLE) ( SUB AT34677 IF AVAILABLE AND AT31229)
10	T35700	1	LINE	(A)
11	19H1765	2	Cap Screw	(A) 3/8" X 1-3/4"
12	28H1521	2	Spacer	(A) 3/8" X 9/16"
13	T35699	2	Clamp	(A)
14	12H304	2	Lock Washer	3/8"
15	14H812	2	NUT	3/8"
16	AT31229	1	CABLE	(BATTERY TO BATTERY)
..	-	1	Part 20	( AT34677 USE IF AVAILABLE)
