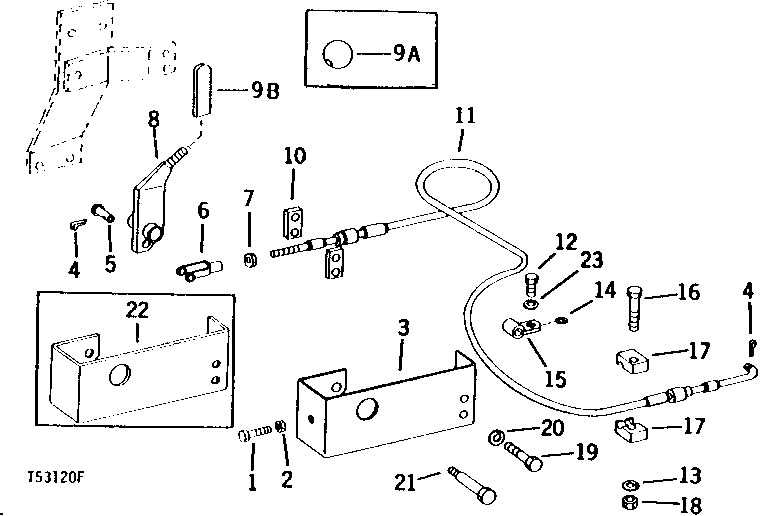

NO. 3305 POWER WINCH CONTROL LEVER (WINCH SERIAL NO. -28652) [02F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2117	1	Cap Screw	(A) 5/16" X 1-1/8", HS, SAE 8
2	14H611	1	Nut	(A) 5/16"
3	AT36783	1	GUARD	(A)
4	11M7077	2	Cotter Pin	1.600 X 25 MM, (USE WITH L4667T)
4	11M7082	2	Cotter Pin	2.500 X 25 MM, (USE WITH R662R)
5	L4667T	1	PIN FASTENER	SUB. R662R AND 11H234
5	R662R	1	PIN FASTENER	-
6	M3742T	1	Yoke	-
7	14H649	1	Nut	1/4"
8	AT20163	1	LEVER	WELLAND SERIAL NO. ( - 40399)
8	AT33828	1	LEVER	WELLAND SERIAL NO. ( 40400- )
10	F3187R	2	STRAP	-
11	AT12824	1	PUSH PULL CABLE	WELLAND SERIAL NO. ( 40400- ) (SUB AT48916, AT36783, AT48917, T14307, T38158, 14H611 AND 19H2321, THIS APPLICATION)
11	AT48916	1	PUSH PULL CABLE	(A) (SUB FOR AT36784, THIS APPLICATION) (ALSO ORDER AT48917 SKIDDERS PRIOR TO SERIAL NUMBER 142076, SEAT SUPPORT, (4) 28H1514 SPACERS AND (4) 19H2117 CAP SCREWS)
11	AT114506	1	PUSH PULL CABLE	(SUB FOR AT21059) (ALSO ORDER T33514 AND T30368)
12	19H2284	1	Cap Screw	3/8" X 7/8"
13	12H304	1	Lock Washer	3/8"
14	T30368	1	WASHER	-
15	T33514	1	Clamp	(SUB FOR T30367, THIS APPLICATION)
16	19H1765	1	Cap Screw	3/8" X 1-3/4"
17	T33483	2	CLAMP	(SUB FOR T19036)
18	14H812	1	NUT	3/8"
19	19H3552	2	Cap Screw	5/16" X 1-1/2"
20	12H303	2	Lock Washer	5/16"
21	T49588	1	Cap Screw	(SUB FOR T26190)
22	T22356	1	GUARD	WELLAND SERIAL NO. ( - 40399)
22	T34707	1	GUARD	WELLAND SERIAL NO. ( 40400- ) (SUB AT48916, AT36783, AT48917, T14307, T38158, 14H611 AND 19H2321)
23	24H1305	1	Washer	13/32" X 13/16" X 0.065"
..	AT36787	1	KIT	WELLAND SERIAL NO. ( 40400- ) WINCH CONTROL, (SUB AT48916, AT36783, AT48917, T14307, T38158, 14H611 AND 19H2321)
9A	F2861R	1	KNOB	-
9B	T41655	1	GRIP	-

NO. 3305 POWER WINCH CONTROL LEVER (WINCH SERIAL NO. -28652) [02F22]
