NO. 3305 POWER WINCH BRAKE BAND ASSEMBLY [02G07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

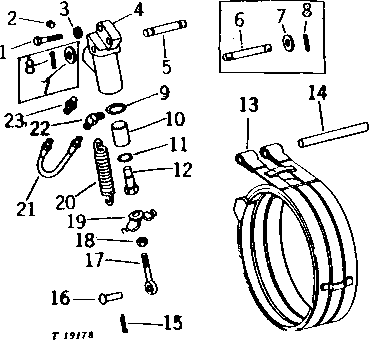

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2719	2	CAP SCREW	7/16" X 1-7/8"
2	15H558	1	Pipe Plug	1/8"
3	12H293	2	Lock Washer	7/16"
4	T23692	1	CYLINDER	(SUB T55249)
4	T55249	1	HYDRAULIC CYLINDER	(SUB FOR T46852)
5	T31728	1	PIN	-
6	T23698	1	PIN FASTENER	(SUB T31728)
7	24H1375	2	Washer	11/16" X 1-1/8" X 0.060"
8	11M7015	2	Cotter Pin	3.200 X 25 MM
9	AT71341	1	SEAL	(SUB FOR A3606R AND R56461, THIS APPLICATION)
10	T73440	1	PISTON	(SUB FOR T23693 AND T70875)
11	T23694	1	Snap Ring	-
12	T70873	1	NUT	(SUB FOR T23697) (ALSO ORDER T70872 AND (2) 14H934)
13	AT108008	1	BRAKE BAND	(SUB FOR AT43302)
13	AT41546	1	BRAKE BAND	(SUB AT108008)
13	AT21240	1	BRAKE BAND	(SUB AT108008)
14	T19790	1	PIN	-
15	11M7081	1	Cotter Pin	2.500 X 20 MM
16	L364T	1	PIN	-
17	T70872	1	EYEBOLT	(SUB FOR T23695) (ALSO ORDER T70873 AND (2) 14H934)
18	14H807	1	Nut	7/16", (USE WITH T23697 OR T23695)
18	14H934	2	Nut	7/16", (USE WITH T70873 OR T70872)
19	T23696	1	ANCHOR	-
20	T70874	2	EXTENSION SPRING	(SUB FOR T24837 AND T64562) (ALSO ORDER T70875)
21	AT21243	1	OIL LINE	-
21	AT47131	1	OIL LINE	-
22	AR26635	1	ELBOW FITTING	-
22	AT47130	1	FITTING	-
23	R26892	1	Fitting	-
23	R32136	1	FITTING	-

NO. 3305 POWER WINCH BRAKE BAND ASSEMBLY [02G07]
