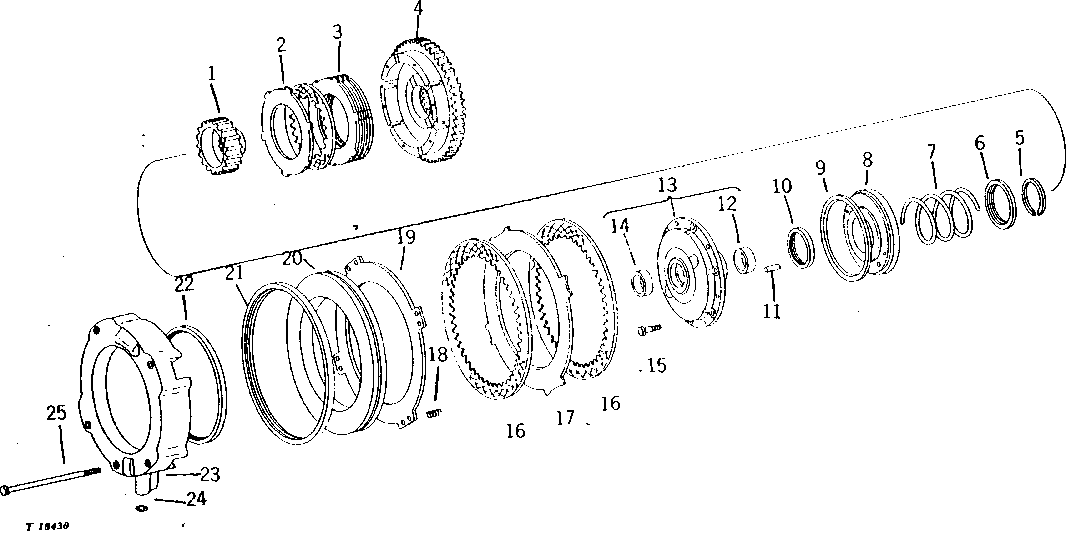

FOURTH PLANETARY BRAKE AND CLUTCH PACK [01G23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33263	1	SPLINED COUPLING	(A) (C)
2	R46391	4	CLUTCH PLATE	(A) (C) (SUB FOR R33873)
3	AR94516	4	DISK WITH INNER SPLINE	(A) (C) (SUB FOR AR69611)
4	R41174	1	DRUM	(A)
4	R49262	1	DRUM	(C)
5	R33247	1	Snap Ring	(A) (C) (B)
6	R33114	1	ROUND RETAINER	(A) (C) (B)
7	R31359	1	SPRING	(A) (C) (B)
8	R41039	1	PISTON	(A) (C) (B)
9	R41166	1	SEAL	(A) (C) (B)
10	R33246	1	Seal	(A) (C) (B)
11	R28671	1	Dowel Pin	(A) (C)
12	R79077	1	BUSHING	(A) (C) (SUB FOR R34611 AND R67875)
13	AR89865	1	HOUSING	(A) (C) (SUB FOR AR32104) (MARKED R33012)
14	R34612	1	BUSHING	(A) (C)
15	R41168	6	Cap Screw	(A) (C)
16	RE17162	2	DISK WITH INNER SPLINE	(A) (C) (SUB FOR AR69610)
17	R48236	1	Plate	(A) (C) (SUB FOR R33872)
18	R74852	12	SPRING	(A) (C) (SUB FOR R33054, THIS APPLICATION)
19	R48235	1	PLATE	(A) (C) (SUB FOR R33871)
20	R65592	1	PISTON	(A) (C) (SUB FOR R33261)
21	R65480	1	PACKING	(A) (C) (SUB FOR R44817)
22	R65479	1	PACKING	(A) (C) (SUB FOR R44816)
23	R33042	1	HOUSING	(A) (C)
24	R56464	4	O-Ring	(SUB FOR R459R, THIS APPLICATION)
25	08H4098	5	CAP SCREW	(A) (C) 3/8" X 8"
..	AR53386	1	TRANSMISSION	(SUB AR89858)
..	AR89858	1	TRANSMISSION	(SUB FOR AR53386, AR52637 AND AR83522)
..	AR92572	1	CLUTCH	(SUB AR52702)

FOURTH PLANETARY BRAKE AND CLUTCH PACK [01G23]
