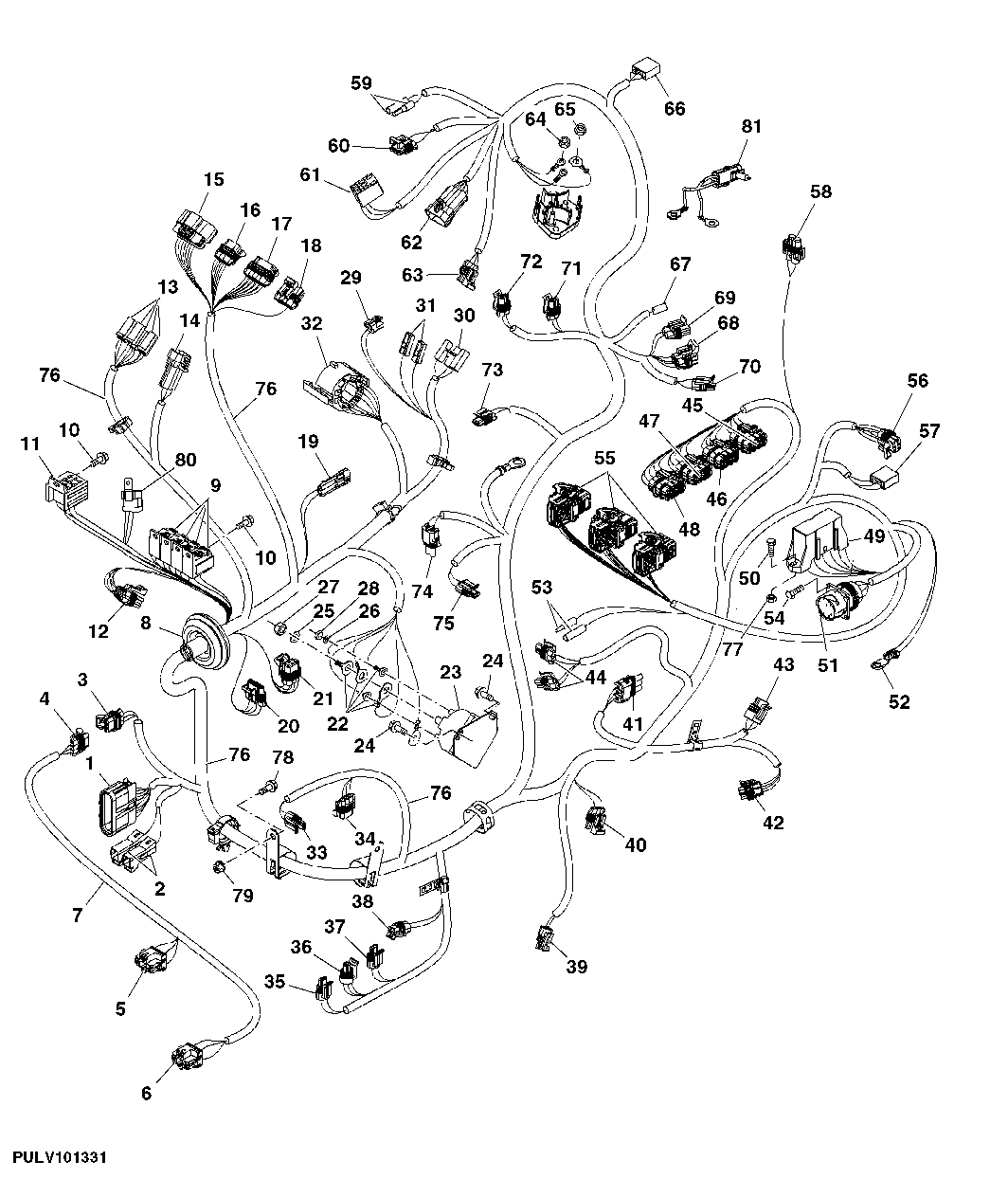

WIRING HARNESS (REAR) (STRADDLE MOUNT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
51	-	1	Part 1	(TO SERVICE ADVISOR™)
52	-	1	Part 2	VEC POWER
53	-	2	Part 3	LEFT WARNING LAMP
54	R108166	4	Rivet	-
55	-	3	Part 5	TRACTOR CONTROLLER
56	-	1	Part 6	LEFT EXTERNAL HITCH SWITCH
57	-	1	Part 7	LEFT TAIL/TURN LAMP
58	-	1	Part 8	REAR WORK LAMP
59	-	2	Part 9	RIGHT WARNING LAMP
60	-	1	Part 10	LOAD DEPTH SENSOR
61	-	1	Part 11	REAR PTO SWITCH
62	-	1	Part 12	HITCH RAISE/LOWER ASSEMBLY
63	-	1	Part 13	HI/LO JOYSTICK
64	14M7194	2	Nut	M6
65	14M7297	2	Nut	M5
66	SJ296582	1	Chassis Wiring Harness	RIGHT TAIL/TURN LAMP
67	-	1	Part 17	BACK UP ALARM
68	57M7260	1	Elec. Connector Housing	7-PIN TRAILER CONNECTOR
69	57M7278	1	Elec. Connector Housing	7-PIN TRAILER CONNECTOR
70	57M7850	1	Elec. Connector Housing	ELECTRO-HYDRAULIC PTO SOLENOID
71	57M7254	1	Elec. Connector Housing	HITCH LOWER
72	57M7254	1	Elec. Connector Housing	HITCH RAISE
73	57M7328	1	Elec. Connector Housing	SEAT SWITCH
74	57M7328	1	Elec. Connector Housing	PARK SENSOR SWITCH / NEUTRAL START SWITCH
75	RE12363	1	Electrical Connector Assy	HYDRAULIC OIL TEMPERATURE
76	SJ296582	1	Chassis Wiring Harness	(SUB FOR RE198443)
77	14M7450	2	Flange Nut	M5
78	19M7866	2	Screw	M8 X 20, HS=10.9
79	14M7298	2	Flange Nut	M8
80	AM123716	1	Relay	-
81	RE270815	1	Wiring Harness	FUEL TRANSFER PUMP JUMPER
..	28H3376	1	Spacer	0.364" X 0.540" X 9/16"

WIRING HARNESS (REAR) (STRADDLE MOUNT)
