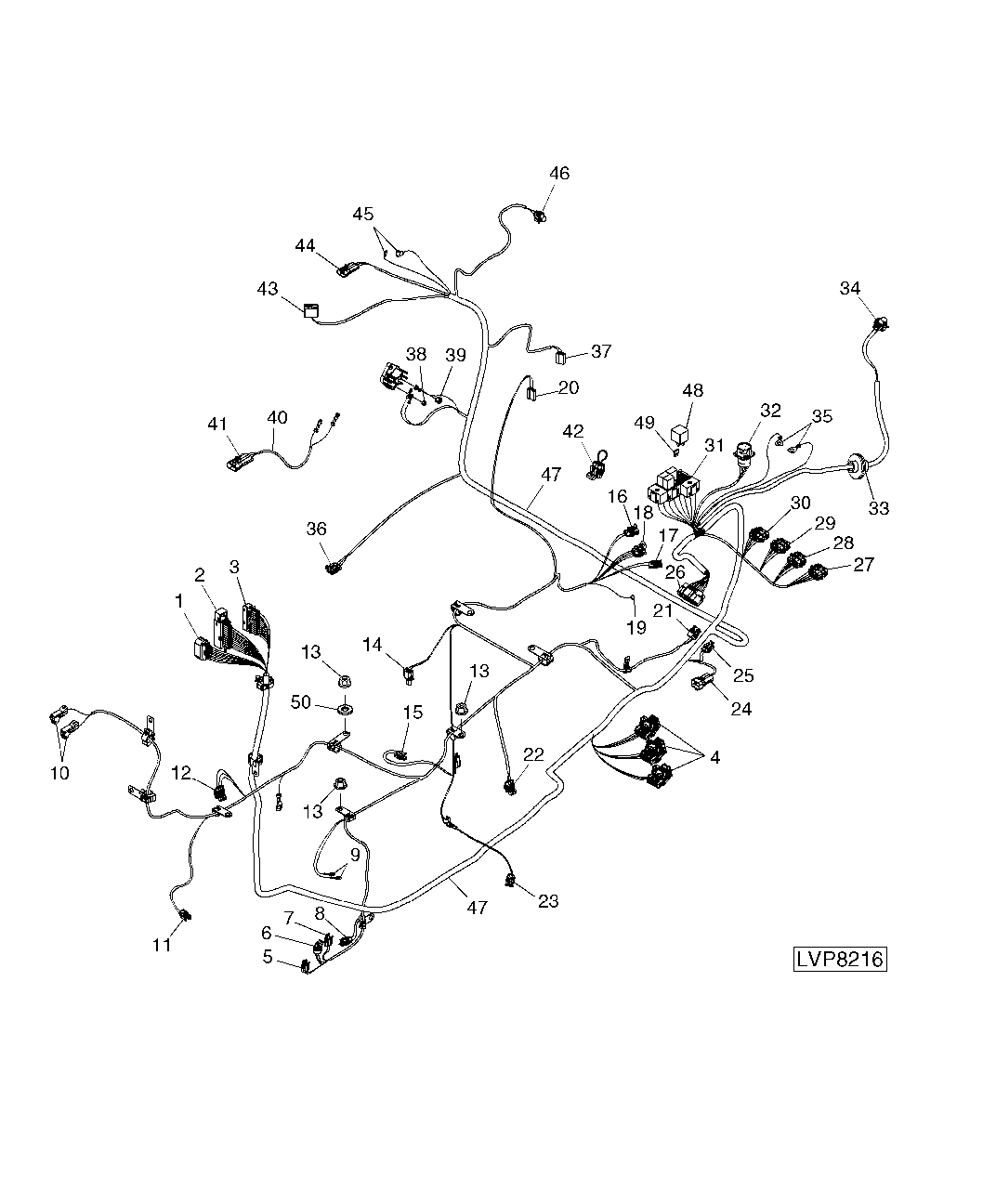

WIRING HARNESS (REAR) (POWRREVERSER™ TRANSMISSION WITH MECHANICAL HITCH) (CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(TO CONSOLE HARNESS)
2	-	1	Part 2	(TO CONSOLE HARNESS)
3	-	1	Part 3	(TO CONSOLE HARNESS)
4	-	3	Part 4	(TO TRACTOR CONTROLLER)
5	-	1	Part 5	FORWARD SOLENOID
6	-	1	Part 6	PRESSURE TRANSDUCER
7	-	1	Part 7	REVERSE SOLENOID
8	-	1	Part 8	CLUTCH CABLE VALVE
9	-	2	Part 9	FUEL LEVEL SENDER
10	-	2	Part 10	(TO POWER CABLES)
11	-	1	Part 11	HI SOLENOID
12	-	1	Part 12	COUNTERSHAFT SPEED SENSOR
13	14M7298	6	Flange Nut	M8
14	-	1	Part 14	PARK SENSOR SWITCH / NEUTRAL START SWITCH
15	-	1	Part 15	HYDRAULIC OIL PUMP
16	-	1	Part 16	ELECTRO-HYDRAULIC PTO SOLENOID
17	-	1	Part 17	7-PIN TRAILER CONNECTOR
18	-	1	Part 18	7-PIN TRAILER CONNECTOR
19	-	1	Part 19	BACK-UP ALARM
20	-	1	Part 20	FRONT WASHER PUMP
21	-	1	Part 21	ELECTRO-HYDRAULIC PTO SPEED SENSOR
22	-	1	Part 22	GROUND SPEED SENSOR
23	-	1	Part 23	MFWD SOLENOID
24	-	1	Part 24	PTO SWITCH
25	-	1	Part 25	SEAT SWITCH
26	-	1	Part 26	(TO ROOF HARNESS)
27	-	1	Part 27	(TO VEC) (BLACK)
28	-	1	Part 28	(TO VEC) (GRAY)
29	-	1	Part 29	(TO VEC) (BLUE)
30	-	1	Part 30	(TO VEC) (GREEN)
31	-	1	Part 31	(ORDER RE206236)
32	-	1	Part 32	(TO SERVICE ADVISOR)
33	Z53033	2	Grommet	-
34	-	1	Part 34	LEFT TAIL/TURN LAMP
35	-	2	Part 35	VEC POWER
36	-	1	Part 36	HI/LO SWITCH
37	-	1	Part 37	REAR WASHER PUMP
38	14M7194	2	Nut	M6
39	14M7297	2	Nut	M5
40	RE178526	1	Wiring Harness	(USE WITH MSG93)
41	-	1	Part 41	AIR SEAT COMPRESSOR
42	RE206064	1	Wiring Harness	ELECTRO-HYDRAULIC PTO JUMPER
43	-	1	Part 43	REAR PTO SWITCH
44	-	1	Part 44	REAR WIPER OPTION
45	-	2	Part 45	CIGAR LIGHTER
46	-	1	Part 46	RIGHT TAIL/TURN LAMP
47	RE206236	1	Wiring Harness	-
48	SJ15809	3	Relay	SUB FOR LVA13711
49	-	2	Part 49	20 AMP
49	-	1	Part 50	30 AMP
50	12M7032	1	Lock Washer	8.400 mm

WIRING HARNESS (REAR) (POWRREVERSER™ TRANSMISSION WITH MECHANICAL HITCH) (CAB)
