WIRING HARNESS (CONSOLE) (POWRREVERSER™ TRANSMISSION) (ISOLATED OPEN OPERATOR STATION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(TO FRONT HARNESS)
2	-	1	Part 2	(TO CONSOLE HARNESS)
3	-	1	Part 3	(TO HEADLAMP HARNESS)
4	-	1	Part 4	RIGHT HEADLAMP
5	-	1	Part 5	LEFT HEADLAMP
6	RE198440	1	Headlamp Wiring Harness	-
7	-	1	Part 7	INSTRUMENTATION
8	-	1	Part 8	INSTRUMENTATION
9	-	1	Part 9	INSTRUMENTATION
10	-	1	Part 10	INSTRUMENTATION
11	37M7089	1	Screw	M6 X 12
12	AL76702	4	Relay	-
13	RE262484	1	Diode	(SUB FOR RE153894)
14	-	1	Part 14	BRAKE SWITCH
15	H145832	4	Clip	-
16	-	1	Part 16	MFWD SWITCH
17	-	6	Part 17	LIGHT SWITCH
18	-	1	Part 18	(TO REAR HARNESS)
19	-	1	Part 19	(TO REAR HARNESS)
20	-	1	Part 20	(TO REAR HARNESS)
21	57M8828	1	Elec. Connector Accessory	(SUB FOR T126786) POWRREVERSER™ FUSE BLOCK
22	57M7121	3	Fuse	10 AMP
23	R138078	1	Grommet	-
24	-	1	Part 24	ELECTRO-HYDRAULIC DIRECTIONAL REVERSER SWITCH
25	-	1	Part 25	CLUTCH ASSEMBLY
26	-	2	Part 26	WARNING HORN
27	-	1	Part 27	STARTER RELAY
28	19M7775	2	Screw	M6 X 16, HS=10.9
29	12M7032	2	Lock Washer	8.400 mm
30	14H785	2	Nut	5/16"
31	14H631	2	Nut	0.190"
32	12M7060	2	Washer	5.300 mm
33	-	1	Part 33	POWER SHUTTLE CONTROL SWITCH
34	-	1	Part 34	TURN SIGNAL SWITCH
35	-	2	Part 35	HORN SWITCH
36	-	1	Part 36	KEY SWITCH
37	RE199696	1	Wiring Harness	CONSOLE
38	RE164448	1	Starter Relay	-
39	37M7061	2	Screw	M5 X 20

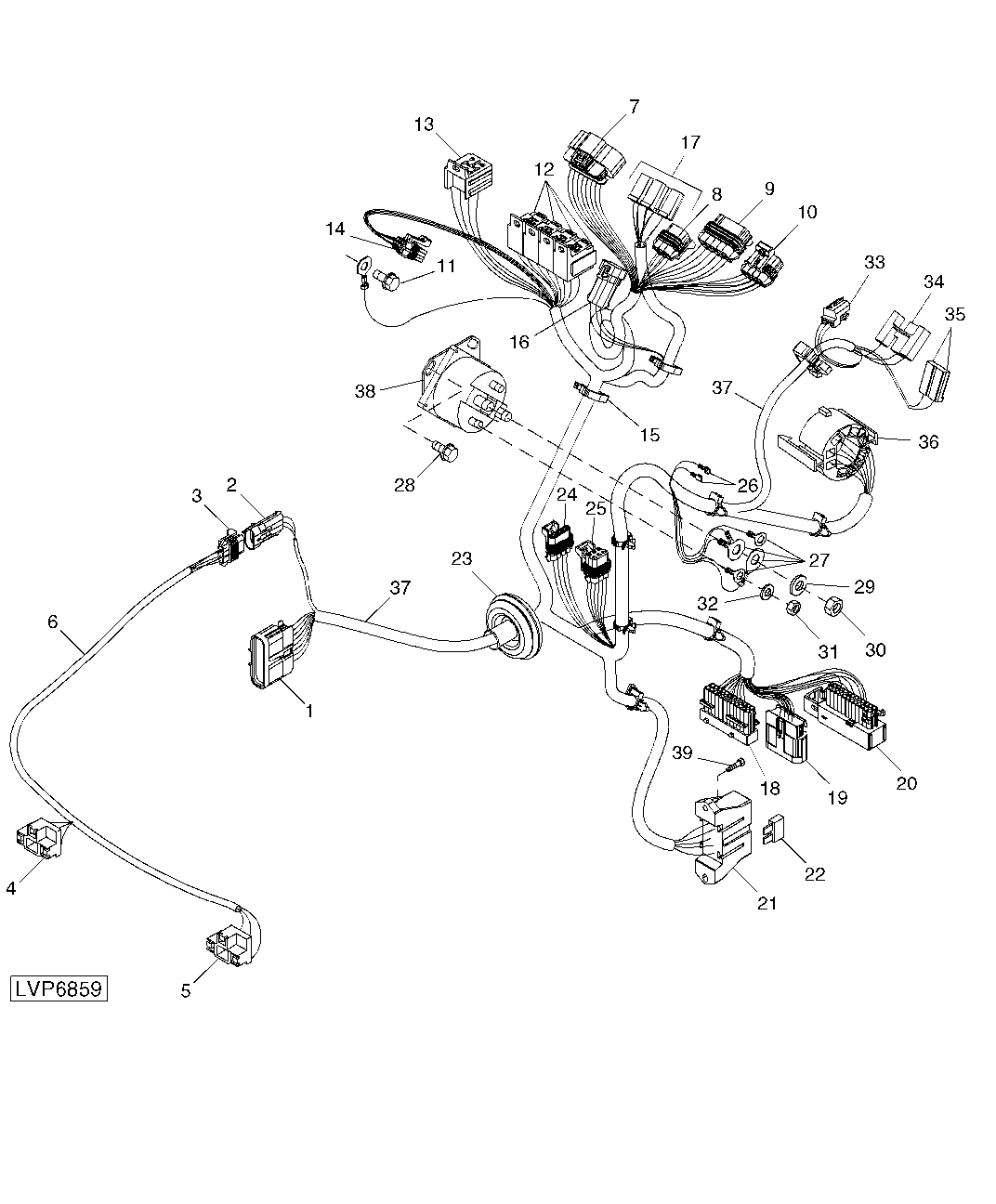

WIRING HARNESS (CONSOLE) (POWRREVERSER™ TRANSMISSION) (ISOLATED OPEN OPERATOR STATION)
