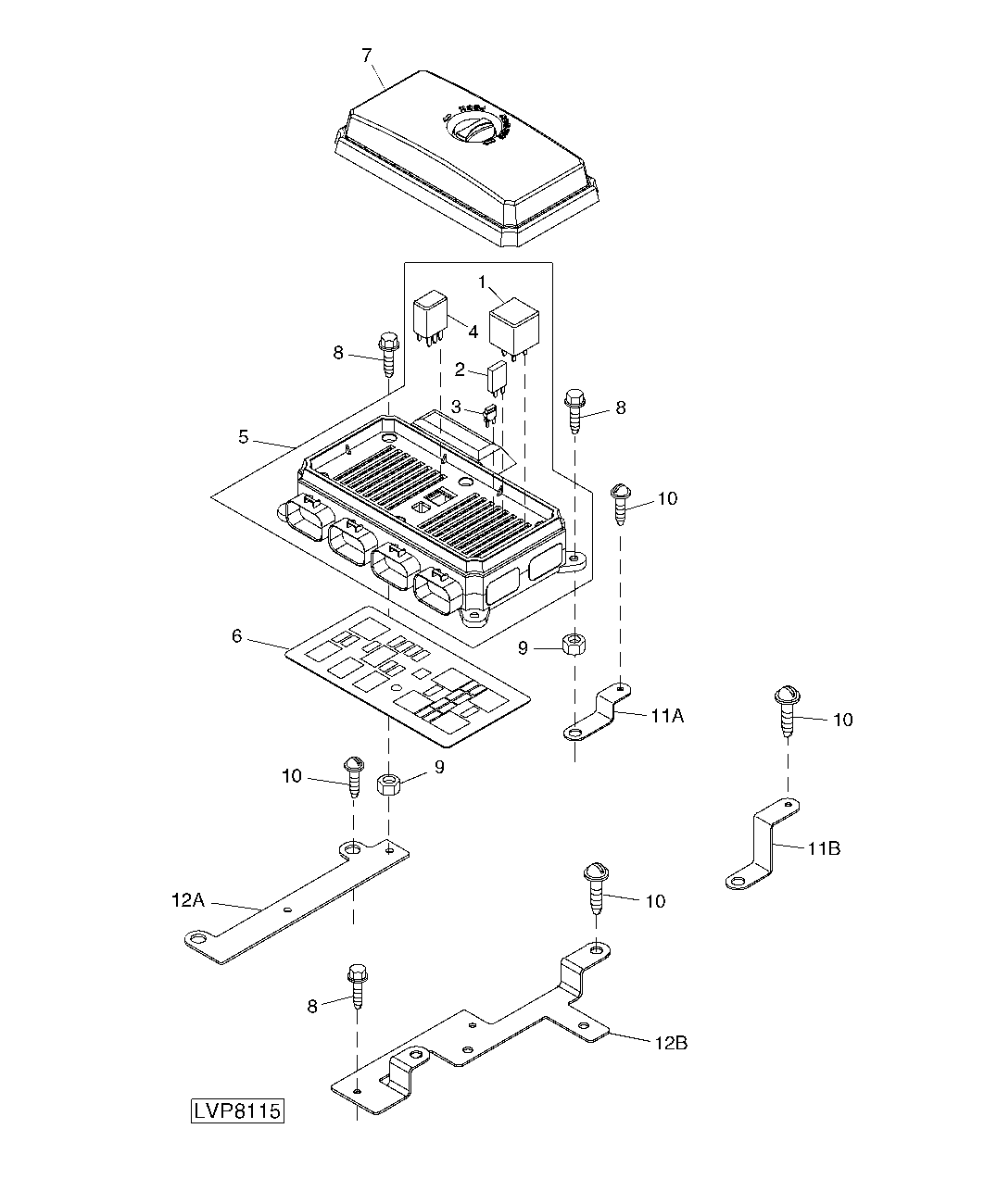

VEC LOAD CENTER ASSEMBLY AND MOUNTING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE253565	5	Relay	(SUB FOR LVA13729, THIS APPLICATION)
2	57M8640	1	Diode	3 AMP
3	57M7688	3	Fuse	5 AMP
3	57M7689	5	Fuse	10 AMP
3	57M7690	2	Fuse	15 AMP
3	57M7691	2	Fuse	20 AMP
3	57M8163	6	Fuse	30 AMP
4	AT308380	4	Relay	(SUB FOR LVA13711, THIS APPLICATION)
5	RE237531	1	Electrical Load Center	(CAB) VEC, (SUB FOR RE208525, THIS APPLICATION)
5	RE237531	1	Electrical Load Center	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION) VEC
6	-	1	Part 11	(SUB FOR R237546 ) (ORDER RE237548)
7	R237532	1	Cover	(STRADDLE MOUNT) (ISOLATED OPEN OPERATOR STATION)
8	37M7059	3	Screw	(ISOLATED OPEN OPERATOR STATION) (CAB) M5 X 12
8	19M7862	4	Screw	(STRADDLE MOUNT) M6 X 20, HS=10.9
9	14M7347	4	Nut	(STRADDLE MOUNT) M8
10	R224342	3	Screw	(ISOLATED OPEN OPERATOR STATION) (CAB) (SUB FOR 37M7374)
11A	R216141	1	Bracket	(ISOLATED OPEN OPERATOR STATION)
11B	R209439	1	Bracket	(CAB)
12A	R216140	1	Bracket	(ISOLATED OPEN OPERATOR STATION)
12B	R208523	1	Bracket	(CAB)

VEC LOAD CENTER ASSEMBLY AND MOUNTING
