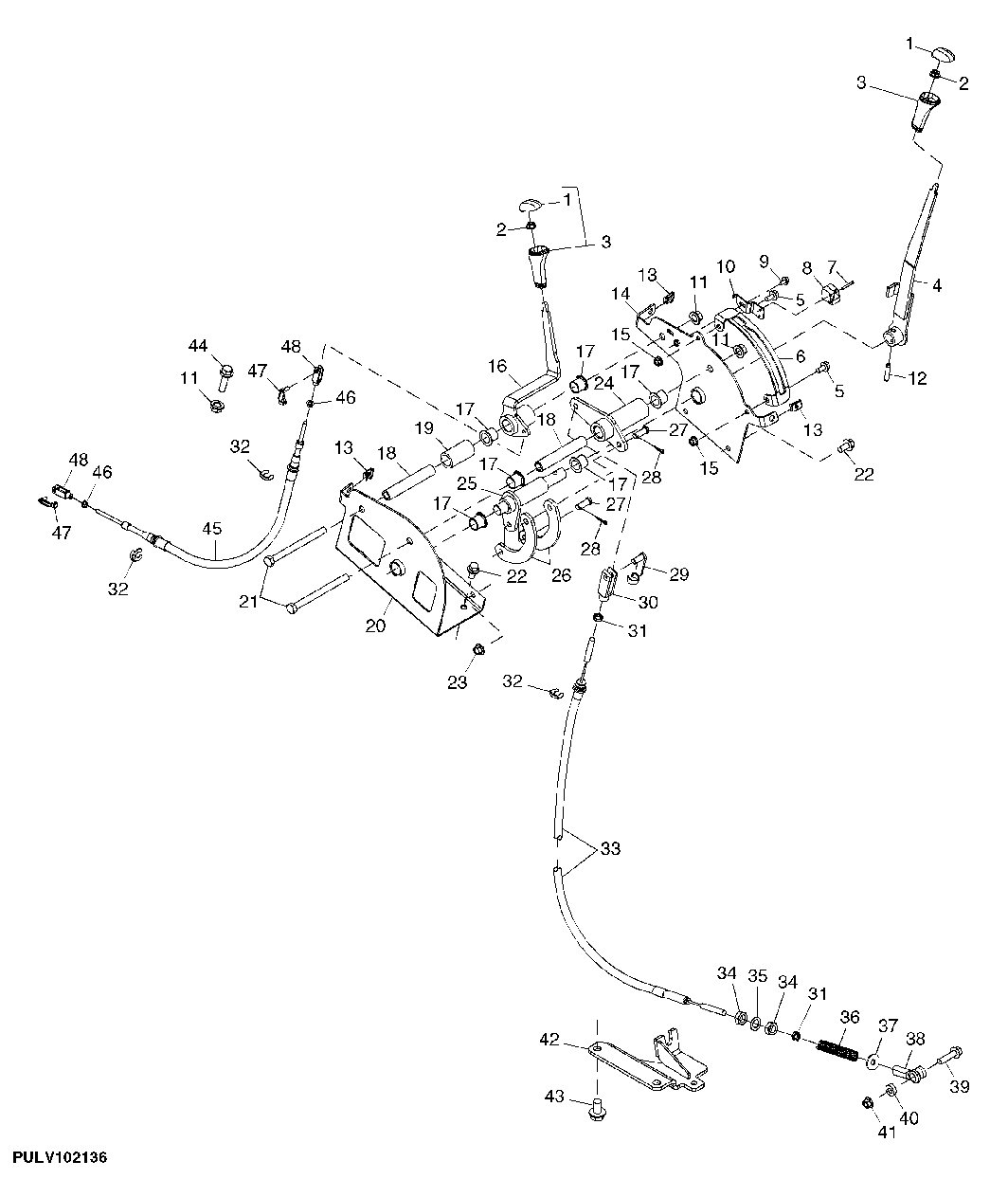

MECHANICAL PTO AND SHIFTABLE E-PTO LEVER AND LINKAGE (ISOLATED OPEN OPERATOR STATION / CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L78981	2	Insert	-
2	M111717	2	Nut	-
3	L77747	2	Knob	-
4	RE73574	1	Control Lever	REAR PTO
5	19M7865	2	Screw	M8 X 16, HS=10.9
6	R140776	1	Gate	-
7	21M7345	2	Screw	M3 X 25
8	RE42470	1	Switch	-
9	19M7774	1	Screw	M6 X 12, HS=10.9
10	R140844	1	Bracket	-
11	14M7299	2	Flange Nut	(ISOLATED OPEN OPERATOR STATION) (CAB WITH MFWD) M12
11	14M7299	4	Flange Nut	(CAB WITHOUT MFWD) M12
12	34M7046	1	SPRING PIN	8 X 36 mm
13	R135870	3	Nut	-
14	RE73427	1	Support	OUTER
15	14M7298	2	Flange Nut	M8
16	RE73300	1	Lever	SHIFTABLE EPTO
17	L110766	6	Bushing	-
18	R140824	2	Spacer	-
19	R201650	1	Spacer	-
20	RE73426	1	Support	INNER
21	19M8061	2	Cap Screw	M12 X 140, HS=10.9
22	19M7784	6	Screw	M10 X 20, HS=10.9
23	14M7296	2	Flange Nut	M10
24	RE73429	1	Crank	UPPER
25	RE221651	1	Bellcrank	LOWER
26	R140825	2	Link	-
27	R185916	2	Pin Fastener	-
28	11M7012	2	Cotter Pin	3.200 X 16 mm
29	45M7063	1	Pin Fastener	-
30	54M4422	1	Yoke	-
31	14M7152	2	Nut	M10
32	R112612	3	Snap Ring	-
33	RE258881	1	Push Pull Cable	(SUB FOR RE185354, THIS APPLICATION ) (INCLUDES (2) 14M7152, (2) 14H847 AND 12H326)
34	14H847	2	Nut	9/16"
35	12H326	1	Lock Washer	9/16"
36	M74908	1	Compression Spring	-
37	24M7178	1	Washer	10.500 X 30 X 2.500 mm
38	RE193849	1	Link End	-
39	19M8162	1	Screw	M10 X 40, HS=10.9
40	24H1781	1	Washer	13/32" X 7/8" X 1/4"
41	14M7296	1	Flange Nut	M10
42	RE177620	1	Bracket	-
43	19M8672	2	Screw	M14 X 25, HS=10.9
44	19M7787	2	Screw	(CAB WITHOUT MFWD) M12 X 20
45	RE185355	1	Push Pull Cable	-
46	14M7303	2	Flange Nut	M6
47	45M7080	2	Spring Locking Pin	-
48	L80052	2	Yoke	-

MECHANICAL PTO AND SHIFTABLE E-PTO LEVER AND LINKAGE (ISOLATED OPEN OPERATOR STATION / CAB)

Нет текстового описания
