Открытый узел

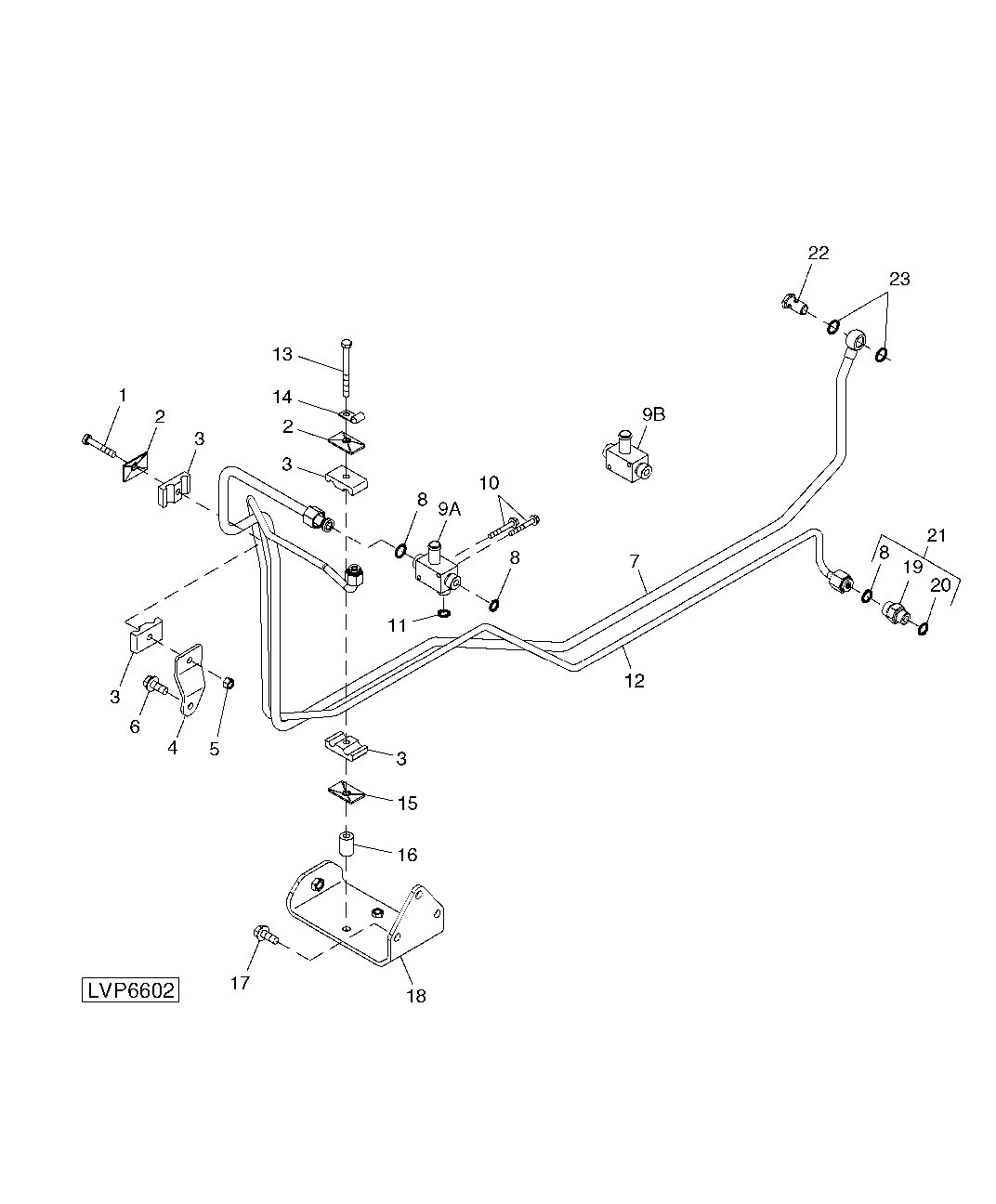

HYDRAULIC LINES (WITHOUT OIL COOLER) (SYNCSHUTTLE™ TRANSMISSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8319	1	Screw	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M8 X 50, HS=10.9
2	H121168	2	Plate	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
3	H135156	4	Clamp	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
4	R223532	1	Bracket	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
5	14M7327	1	Lock Nut	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M8
6	19M7866	1	Screw	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M8 X 20, HS=10.9
7	RE242353	1	Oil Line	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
8	T77857	3	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
8	T77857	2	O-Ring	(2WD) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
10	19M8321	2	Screw	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M6 X 45, HS=10.9
11	T77613	1	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
12	RE195825	1	Oil Line	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
13	19M8038	1	Cap Screw	(WITHOUT MID SCV) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M8 X 85, HS=10.9
13	19M8318	1	Screw	(WITH MID SCV) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M8 X 45, HS=10.9
14	T13914	1	Clamp	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
15	H121168	1	Plate	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
16	R117351	1	Spacer	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
17	19M7785	3	Screw	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) M10 X 25, HS=10.9
18	RE215845	1	Bracket	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
19	38H5003	1	Adapter Fitting	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
20	51M7043	1	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION) 15.300 X 2.200 mm
21	61M5003	1	Adapter Fitting	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
22	38M7007	1	Hollow Screw	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
23	51M4241	2	Sealing Ring	(STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
9A	RE198507	1	Valve	(MECHANICAL FRONT WHEEL DRIVE) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)
9B	RE198506	1	Valve	(2WD) (STRADDLE MOUNT / ISOLATED OPEN OPERATOR STATION)

HYDRAULIC LINES (WITHOUT OIL COOLER) (SYNCSHUTTLE™ TRANSMISSION)

Нет текстового описания
